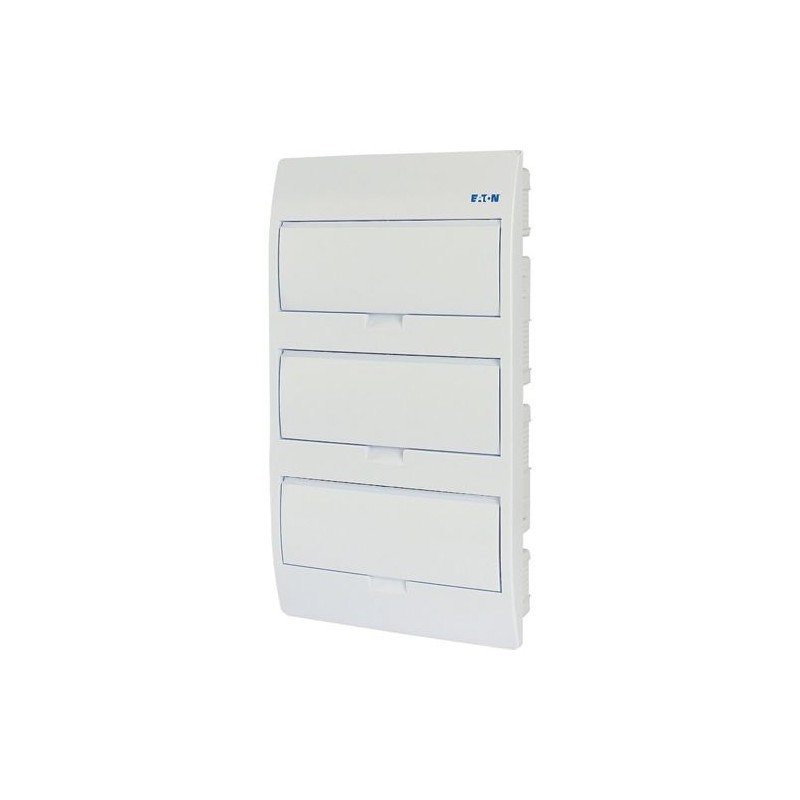

BC-U-3/36-TW-ECO 284643 Y7-284643 EATON ELECTRIC ECO Compact distribution board, flush mounting, 3-rows, 12 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

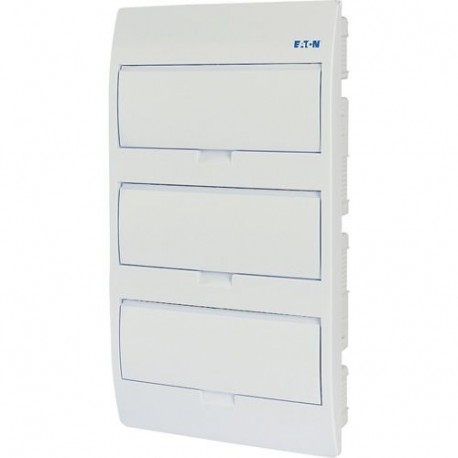

BC-U-3/36-TW-ECO 284643 Y7-284643 EATON ELECTRIC ECO Compact distribution board, flush mounting, 3-rows, 12 ..

BC-U-3/36-TW-ECO

284643

Y7-284643

EATON-MOELLER

ECO Compact distribution board, flush mounting, 3-rows, 12 MU, IP40

BC-U-3/36-TW-ECO

Eaton xComfort ECO LV systems Final Distribution Boards. ECO Compact distribution board, flush mounting, 3-rows, 12 MU, IP40, white door

More details


Distribution boards > Small distribution board

Compact Distribution Boxes

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $102.39
Unit price: $102.39
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton xComfort ECO LV systems Final Distribution Boards
Catalog Number
284643
Model Code
BC-U-3/36-TW-ECO
EAN
4015082846435
Product Length/Depth
98 mm
Product Height
550 mm
Product Width
303 mm
Product Weight
2.3 kg
Compliances
RoHS conform
Certifications
EN 62208

Delivery program

Type
Basic deviceECO distribution boardInstallation distribution board
Application
Indoor (installation site)
Color
Signal white (RAL 9003)
White

Technical data - electrical

Voltage rating at AC
400 V AC
Frequency rating of contacts
50 Hz

Technical data - mechanical

Closure type
Other
Enclosure material
Plastic
Width in number of modular spacings
12
Mounting method
Flush mounted (plaster)
DIN-rail
Flush mounting
Material
ABS (plastic)
Degree of protection
IK05 (impact resistance)
IP40
Number of module space units per row
12
Number of rows
3
Terminal type
Screw terminals
PE and N terminal number and cross section
N: 3 x (12 mm² x 10 mm²)
PE: 3 x (12 mm² x 10 mm²)
Built-in depth
70 mm
Built-in height
0 mm
Built-in width
0 mm
Internal depth
90 mm
Cable entry postion
Cable entry ribs on top and bottom
Cover/door color
White
Cover/door model
Closed
Cover/door type
Door
Single
Module rack type
Single-rail
Protective shrouding material
Plastic

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature details
-20 °C - 70 °C

Design verification as per IEC/EN 61439

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
850 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK05
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP40
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 400 V AC
10.9.3 Impulse withstand voltage
3.75 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.

Additional information

Fitted with:
Neutral-/protective conductor terminal
Device support rails
Basic device
Functions
Basic device
Protection class
II (totally insulated)
RAL-number
9003
Special features
IP40Protection Class IIPlastic housing white (RAL 9003)

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
BC-U-3/36-TW-ECO Y7-284643 284643 ES_281649.pdf 751 Kbytes BC-U-3/36-TW-ECO Y7-284643 284643 ES_281649.pdf
