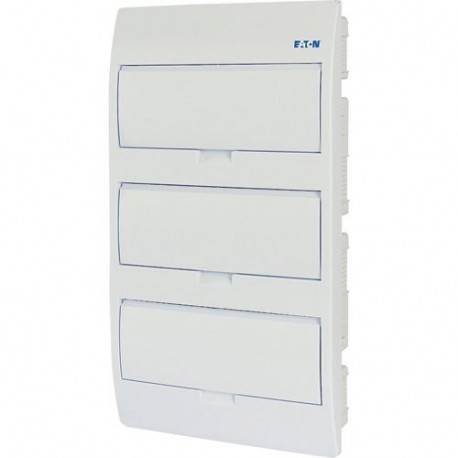

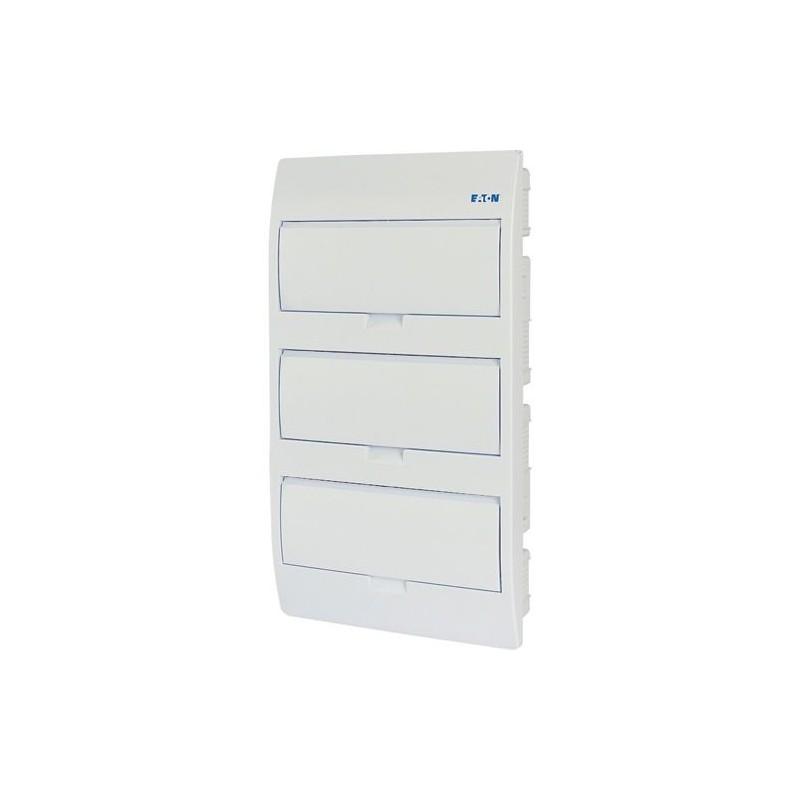

BC-U-3/36-TW-ECO 284643 Y7-284643 EATON ELECTRIC Flush m.comp.distr.board with white door Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

BC-U-3/36-TW-ECO 284643 Y7-284643 EATON ELECTRIC Flush m.comp.distr.board with white door

BC-U-3/36-TW-ECO

284643

Y7-284643

EATON-MOELLER

Caja distribución tipo ECO, montaje empotrado, 3 filas, 12 UM, IP40

Eaton xComfort ECO LV systems Final Distribution Boards. ECO Compact distribution board, flush mounting, 3-rows, 12 MU, IP40, white door

Más detalles


Sistemas de distribución eléctrica (incluidos cuadros de control) > Pequeños distribuidores de instalación

Cajas y pequeños armarios de distribución

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $102.15
Precio unitario: $102.15
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton xComfort ECO LV systems Final Distribution Boards
Catalog Number
284643
EAN
4015082846435
Product Length/Depth
98 mm
Product Height
550 mm
Product Width
303 mm
Product Weight
2.3 kg
Compliances
RoHS conform
Certifications
EN 62208
Model Code
BC-U-3/36-TW-ECO

Product specifications

Special features
IP40Protection Class IIPlastic housing white (RAL 9003)
Type
Basic deviceECO distribution boardInstallation distribution board
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
850 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK05
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP40
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 400 V AC
10.9.3 Impulse withstand voltage
3.75 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
Fitted with:
Neutral-/protective conductor terminal
Device support rails
Basic device
Enclosure material
Plastic
Built-in height
0 mm
Built-in width
0 mm
Cable entry postion
Cable entry ribs on top and bottom
Terminal type
Screw terminals
Built-in depth
70 mm
Closure type
Other
Cover/door color
White
Cover/door model
Closed
Cover/door type
Door
Single
RAL-number
9003
Width in number of modular spacings
12
Ambient operating temperature details
-20 °C - 70 °C
Application
Indoor (installation site)
Voltage rating at AC
400 V AC
Color
Signal white (RAL 9003)
White
Number of rows
3
Frequency rating of contacts
50 Hz
Module rack type
Single-rail
Degree of protection
IK05 (impact resistance)
IP40
Number of module space units per row
12
Protection class
II (totally insulated)
Protective shrouding material
Plastic
Functions
Basic device
Material
ABS (plastic)
Mounting method
Flush mounted (plaster)
DIN-rail
Flush mounting
Internal depth
90 mm
PE and N terminal number and cross section
N: 3 x (12 mm² x 10 mm²)
PE: 3 x (12 mm² x 10 mm²)

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON ENVOLVENTES ES.pdf 7 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
BC-U-3/36-TW-ECO Y7-284643 284643 ES_281649.pdf 751 Kbytes BC-U-3/36-TW-ECO Y7-284643 284643 ES_281649.pdf
