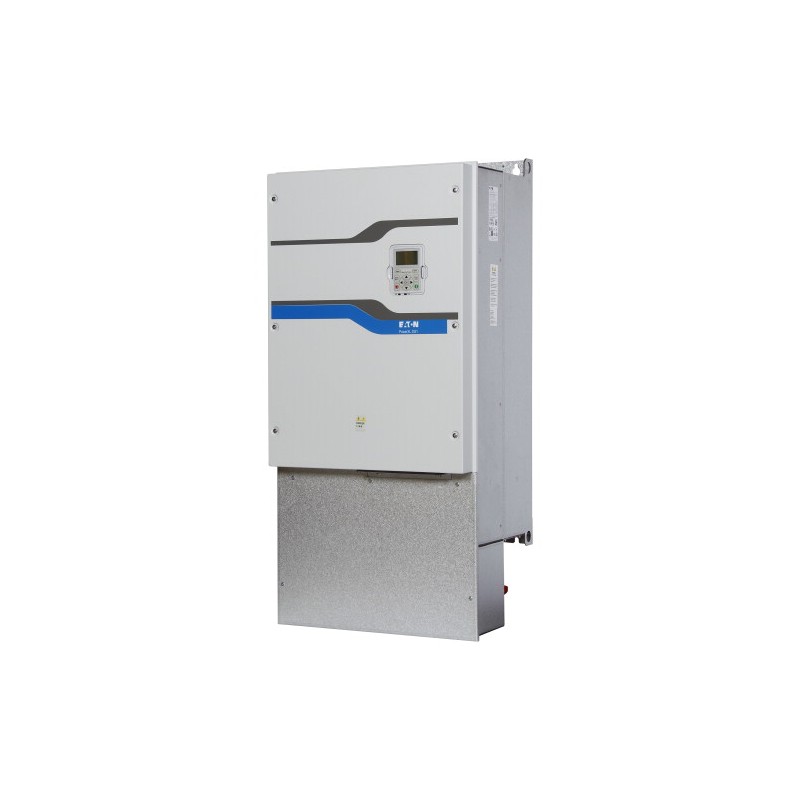

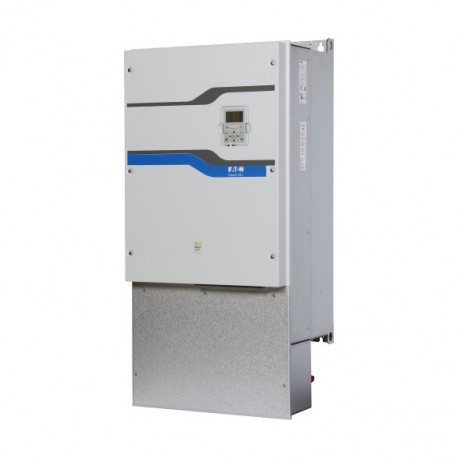

DG1-35208FB-C21C 9703-6005-00P EATON ELECTRIC Variable frequency drives 3-phase 575 V 208 EMC filters Intern.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

DG1-35208FB-C21C 9703-6005-00P EATON ELECTRIC Variable frequency drives 3-phase 575 V 208 EMC filters Intern..

DG1-35208FB-C21C

9703600500P

EATON-MOELLER

Variable frequency drives; 3-phase 575 V; 208; EMC filters; Internal braking transistor; degree of protection IP21

DG1-35208FB-C21C

Variable frequency drive, 500 V AC, 3-phase, 208 A, 132 kW, IP21/NEMA1, Brake chopper, DC link choke

More details


Power XL Frequency Converters

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Variable frequency drive, 500 V AC, 3-phase, 208 A, 132 kW, IP21/NEMA1, Brake chopper, DC link choke
Variable frequency drive, Part group reference (e.g. DIL): DG1, Rated operational voltage: Ue = 600 V AC, 3-phase, Output voltage with Ve: U2 = 600 V AC, 3-phase, Mains voltage (50/60Hz): ULN = 500 (-10%) - 600 (+10%) V, Rated operational current At 150% overload: Ie = 208 A, Note: Rated operational current for a switching frequency of 1 - 6 kHz and an ambient temperature of +50 °C for a 150% overload and +40 °C for a 110% overload, Rated operational current At 110% overload: Ie = 250 A, Note: Overload cycle for 60 s every 600 s, Assigned motor rating Note: for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz, Overload cycle for 60 s every 600 s, at 525 V, 50 Hz, Assigned motor rating 150 % Overload: P = 132 kW, 110 % Overload: P = 160 kW, 150 % Overload: IM = 184 A, 110 % Overload: IM = 224 A, Assigned motor rating Note: at 600 V, 50 Hz, Assigned motor rating 150 % Overload: P = 160 kW, 110 % Overload: P = 200 kW, 150 % Overload: IM = 197 A, 110 % Overload: IM = 246 A, Assigned motor rating Note: at 600 V, 60 Hz, Assigned motor rating 150 % Overload: P = 200 HP, 110 % Overload: P = 250 HP, Assigned motor rating 150 % Overload: IM = 192 A, 110 % Overload: IM = 242 A, Degree of Protection: IP21/NEMA1, Interface/field bus (built-in): Modbus RTU, Modbus TCP, BACnet MS/TP, Ethernet IP, Fieldbus connection (optional): PROFIBUS, CANopen®, DeviceNet, SmartWire-DT, Fitted with: Radio interference suppression filter, Additional PCB protection, Multi-line graphic display, Brake chopper, DC link choke, Frame size: FS6, Standards: Specification for general requirements: IEC/EN 61800-2, EMC requirements: IEC/EN 61800-3, Safety requirements: IEC/EN 61800-5

Delivery program

Product range
Variable frequency drives
Part group reference (e.g. DIL)
DG1
Rated operational voltage [Ue]
600 V AC, 3-phase
Output voltage with Ve[U2]
600 V AC, 3-phase
Mains voltage (50/60Hz) [ULN]
500 (-10%) - 600 (+10%) V
Rated operational current [Ie]
At 150% overload [Ie]
208 A
At 110% overload [Ie]
250 A
Note
Rated operational current for a switching frequency of 1 - 6 kHz and an ambient temperature of +50 °C for a 150% overload and +40 °C for a 110% overload
Assigned motor rating
Note
for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1at 50 Hz or 1800 min-1at 60 Hz
Note
Overload cycle for 60 s every 600 s
Note
at 525 V, 50 Hz
150 % Overload [P]
132 kW
110 % Overload [P]
160 kW
150 % Overload [IM]
184 A
110 % Overload [IM]
224 A
Note
at 600 V, 50 Hz
150 % Overload [P]
160 kW
110 % Overload [P]
200 kW
150 % Overload [IM]
197 A
110 % Overload [IM]
246 A
Note
at 600 V, 60 Hz
150 % Overload [P]
200 HP
110 % Overload [P]
250 HP
150 % Overload [IM]
192 A
110 % Overload [IM]
242 A
Degree of Protection
IP21/NEMA1
Interface/field bus (built-in)
Modbus RTU
Modbus TCP
BACnet MS/TP
Ethernet IP
Fieldbus connection (optional)
PROFIBUS
CANopen®
DeviceNet
SmartWire-DT
Fitted with
Radio interference suppression filter
Additional PCB protection
Multi-line graphic display
Brake chopper
DC link choke
Parameterization
Keypad
Feldbus
Power Xpert inControl
Frame size
FS6
Connection to SmartWire-DT
yes
in conjunction with DXG-NET-SWD SmartWire DT module

Technical data

General
Standards
Specification for general requirements: IEC/EN 61800-2
EMC requirements: IEC/EN 61800-3
Safety requirements: IEC/EN 61800-5
Certifications
UL, cUL, c-Tick, UkrSEPRO, EAC
Production quality
RoHS, ISO 9001
Climatic proofing [ρw]
< 95%, average relative humidity (RH), non-condensing, non-corrosive %
Air quality
3C2, 3S2
Ambient temperatureOperating ambient temperature min.
-10 °C
Ambient temperatureOperating ambient temperature max.
+50 °C
Ambient temperatureoperation (110 % overload) [ϑ]
-10 - +40 °C
Ambient temperature
Operation with 110 % overload (1 min./10 min.): -10 to +40 (max. +55 with 1% derating per Kelvin above limit)
Operation with 150% overload (1 min./10 min.): -10 to +50 (max. +60 with 1% derating per Kelvin above limit)
-20 with cold-weather mode
Ambient temperatureStorage [ϑ]
-40 - +70 °C
Overvoltage category
III
Pollution degree
2
Radio interference levelRadio interference class (EMC)
C1 (with external filter, for conducted emissions only), C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Radio interference levelEnvironment (EMC)
1st and 2nd environments as per EN 61800-3
Radio interference levelmaximum motor cable length [I]
C3 ≤ 10 m m
Mechanical shock resistance
EN 61800-5-1, EN 60068-2-27
UPS drop test (for weights inside the UPS frame)
Storage and transportation: maximum 15 g, 11 ms (inside the packaging) g
Vibration
EN 61800-5-1, EN 60068-2-6: 5 - 150 Hz
Amplitude: 1 mm (peak) at 5 - 15.8 Hz
Maximum acceleration amplitude: 1 g at 15.8 – 150 Hz
Mounting position
Vertical
Altitude
0 - 1000 m above sea level
Above 1000 m: 1% derating for every 100 m
max. 2000 m m
Degree of Protection
IP21/NEMA1
Protection against direct contact
BGV A3 (VBG4, finger- and back-of-hand proof)
Main circuit
SupplyRated operational voltage [Ue]
600 V AC, 3-phase
SupplyMains voltage (50/60Hz) [ULN]
500 (-10%) - 600 (+10%) V
SupplyInput current (150% overload) [ILN]
193.3 A
SupplyInput current (110% overload) [ILN]
230.7 T
SupplySystem configuration
TN-S, TN-C, TN-C-S, TT, IT
SupplySupply frequency [fLN]
50/60 Hz
SupplyFrequency range [fLN]
45–66 (± 0%) Hz
SupplyMains switch-on frequency
Maximum of one time every 60 seconds
SupplyMains current distortion [THD]
31.5 %
SupplyRated conditional short-circuit current [Iq]
< 100 kA
Power sectionFunction
Variable frequency drive with internal DC link, DC link choke and IGBT inverter
Power sectionOverload current (150% overload) [IL]
312 A
Power sectionOverload current (110% overload) [IL]
275 A
Power sectionmax. starting current (High Overload) [IH]
200 %
Power sectionNote about max. starting current
for 2 seconds every 20 seconds
Power sectionOutput voltage with Ve[U2]
600 V AC, 3-phase
Power sectionOutput Frequency [f2]
0 - 50/60 (max. 400) Hz
Power sectionSwitching frequency [fPWM]
1.5
adjustable 1 - 6 kHz
Power sectionOperation Mode
U/f control
Speed control with slip compensation
sensorless vector control (SLV)
Torque regulation
Power sectionFrequency resolution (setpoint value) [Δf]
0.01 Hz
Power sectionRated operational currentAt 150% overload [Ie]
208 A
Power sectionRated operational currentAt 110% overload [Ie]
250 A
Power sectionNote
Rated operational current for a switching frequency of 1 - 6 kHz and an ambient temperature of +50 °C for a 150% overload and +40 °C for a 110% overload
Power sectionMotor current limit [I]
0.1 - 2 x IH(CT) A
Power sectionPower lossHeat dissipation at rated operational current Ie=150 % [PV]
3165 W
Power sectionPower lossHeat dissipation at rated operational current Ie=110% [PV]
2506 W
Power sectionEfficiency [η]
98.5 %
Power sectionMaximum leakage current to ground (PE) without motor [IPE]
11.8 mA
Power sectionFan
temperature controlled
externally accessible
Power sectionInternal fan delivery rate
679 m3/h
Power sectionFitted with
Radio interference suppression filter
Additional PCB protection
Multi-line graphic display
Brake chopper
DC link choke
Power sectionSafety function
STO (Safe Torque Off, SIL1, PLc Cat 1)
Power sectionFrame size
FS6
Motor feederNote
for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1at 50 Hz or 1800 min-1at 60 Hz
Motor feederNote
Overload cycle for 60 s every 600 s
Motor feederNote
at 525 V, 50 Hz
Motor feeder150 % Overload [P]
132 kW
Motor feeder110 % Overload [P]
160 kW
Motor feederNote
at 600 V, 50 Hz
Motor feeder150 % Overload [P]
160 kW
Motor feeder110 % Overload [P]
200 kW
Motor feederNote
at 600 V, 60 Hz
Motor feeder150 % Overload [P]
200 HP
Motor feeder110 % Overload [P]
250 HP
Motor feedermaximum permissible cable length [I]
screened: 200 m
Motor feederApparent powerApparent power at rated operation 600 V [S]
259.8 kVA
Motor feederBraking functionStandard braking torque
max. 30 % MN
Motor feederBraking functionDC braking torque
adjustable to 150 %
Motor feederBraking functionBraking torque with external braking resistance
Max. 100% of rated operational current Iewith external braking resistor
Motor feederBraking functionminimum external braking resistance [Rmin]
2.5 Ω
Motor feederBraking functionSwitch-on threshold for the braking transistor [UDC]
Supply voltage UAUX 1050 V DC V
Motor feederBraking functionDC braking [%]
≦ 150, adjustable I/Ie
Control section
External control voltage [Uc]
24 V DC (max. 250 mA options incl.) V
Reference voltage [Us]
10 V DC (max. 10 mA) V
Analog inputs
2, parameterizable, 0 - 10 V DC, 2 - 10 V DC, -10 - +10 V DC, 0/4 - 20 mA
Analog outputs
2, parameterizable, 0 - 10 V, 0/4 - 20 mA
Digital inputs
8, parameterizable, max. 30 V DC
Digital outputs
1, parameterizable, 24 V DC
Relay outputs
3, parameterizable, 2 changeover contacts and 1 N/O, 6 A (240 VAC) / 6 A (24 VDC)
Interface/field bus (built-in)
Modbus RTU
Modbus TCP
BACnet MS/TP
Ethernet IP
Expansion slots
2
Assigned switching and protective elements
Power WiringSafety device (fuse or miniature circuit-breaker)IEC (Type B, gG), 150 %
NZMC2-A250
Power WiringSafety device (fuse or miniature circuit-breaker)IEC (Type B, gG), 110 %
NZMC2-A250
Power WiringSafety device (fuse or miniature circuit-breaker)UL (Class CC or J)
400 A
Power WiringMains contactor150 % overload (CT/IH, at 50 °C)
DILM185A
Power WiringMains contactor110 % overload (VT/IL, at 40 °C)
DILM185A
Power WiringMain choke150 % overload (CT/IH, at 50 °C)
Integrated DC link choke, uk = 5%
Power WiringMain choke110 % overload (VT/IL, at 40 °C)
Integrated DC link choke, uk = 5%
Power WiringNote regarding radio interference suppression filter
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
DC link connectionBraking resistance10 % duty factor (DF)
P:2 x DX-BR006-18K1
DC link connectionBraking resistance20 % duty factor (DF)
P:2 x DX-BR006-33K3
DC link connectionBraking resistance40 % duty factor (DF)
?
DC link connectionBraking resistanceNotes concerning braking resistances:
P:n = "n" resistors connected in parallel
Motor feedermotor choke150 % overload (CT/IH, at 50 °C)
DX-LM3-220
Motor feedermotor choke110 % overload (VT/IL, at 40 °C)
DX-LM3-260
Motor feederSine filter150 % overload (CT/IH, at 50 °C)
DX-SIN3-250
Motor feederSine filter110 % overload (VT/IL, at 40 °C)
DX-SIN3-250

Design verification as per IEC/EN 61439

Technical data for design verification
Rated operational current for specified heat dissipation [In]
208 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
3165 W
Static heat dissipation, non-current-dependent [Pvs]
84.3 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-10 °C
Operating ambient temperature max.
+50 °C
Operation (with 150 % overload), allow for derating
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 6.0

Low-voltage industrial components (EG000017) / Frequency converter =< 1 kV (EC001857)
Electric engineering, automation, process control engineering / Electrical drive / Static frequency converter / Static frequency converter = < 1 kv ([email protected] [AKE177011])
Mains voltage
525 - 600 V
Mains frequency
50/60 Hz
Number of phases input
3
Number of phases output
3
Max. output frequency
400 Hz
Max. output voltage
575 V
Rated output current I2N
208 A
Max. output at quadratic load at rated output voltage
160 kW
Max. output at linear load at rated output voltage
132 kW
With control unit
Yes
Application in industrial area permitted
Yes
Application in domestic- and commercial area permitted
Yes
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
Yes
Supporting protocol for CAN
Yes
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
Yes
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Number of HW-interfaces industrial Ethernet
1
Number of HW-interfaces PROFINET
1
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
1
With optical interface
No
With PC connection
Yes
Integrated breaking resistance
Yes
4-quadrant operation possible
Yes
Type of converter
U converter
Degree of protection (IP)
IP21
Height
486 mm
Width
1035 mm
Depth
371 mm
Relative symmetric net frequency tolerance
10 %
Relative symmetric net current tolerance
10 %

Approvals

Product Standards
UL508C, CSA-C22.2 No. 274-13; IEC/EN61800-3; IEC/EN61800-5; CE marking
UL File No.
E134360
UL Category Control No.
NMMS, NMMS7
CSA File No.
UL report applies to both US and Canada
North America Certification
UL listed, certified by UL for use in Canada
Suitable for
Branch circuits
Max. Voltage Rating
3~600 V AC IEC: TN-S UL/CSA: 'Y' (Solidly Grounded Wey)
Degree of Protection
IP21/NEMA1

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 37 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DG1-35208FB-C21C DG1-35208FB-C21C 9703600500P EN_9703-6005-00P.pdf 182 Kbytes DG1-35208FB-C21C DG1-35208FB-C21C 9703600500P EN_9703-6005-00P.pdf

Reviews (0) ▲

No customer reviews for the moment.

Add Review
Add Review
hide form
Rating:
Name:
Email:
Subject:
Text:
Do you recommend this product to buy?
  Captcha
  Add review

Latest Customer Reviews

All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.

Newsletter
Follow us
My account
