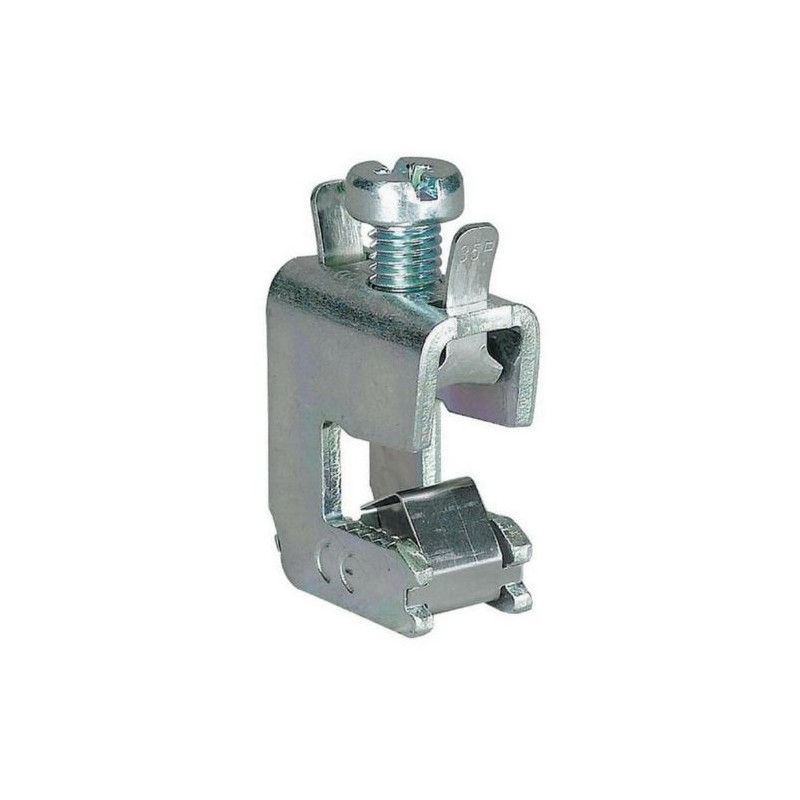

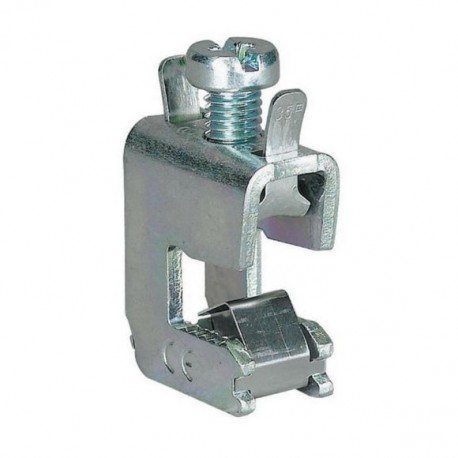

AKU35/10 107192 2465030 EATON ELECTRIC Conductor connection terminal 4-35mm², 10 mm
AKU35/10
107192
2465030
EATON-MOELLER
50
Conductor connection terminal 4-35mm², 10 mm
AKU35/10
Low-voltage industrial components > Busbar terminal
Connection Accessories for Enclosures
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲Conductor connection terminal 4-35mm², 10 mm
Universal conductor connection terminal, 4-35mm² AWG 10-AWG 2., directly terminated, 3x9x0.8 or 6x9x0.8, 270A, can be used for all 10mm thick flat busbars, width=15.5mm, termination space WxH=10.5x11mm, with integrated retaining spring, with open terminal chamber and captive fixing screw, can be used for SASY60i, SASY185i
General specifications
Product name
Eaton xEffect SASY 60i busbar terminal
Part no.
AKU35/10
EAN
4015081069552
Product Length/Depth
16 millimetre
Product height
35 millimetre
Product width
29 millimetre
Product weight
0.047 kilogram
Compliances
UL CSA09 (refer to approbation report)
RoHS conform
RoHS conform
Certifications
CE marking
CSA (Class No. 3211-37)
North America (UL listed, CSA certified)
UL (Category Control Number NMTR2, NMTR8)
UL (File No. E307559)
UL508A
IEC 60439-1
CSA-C22.2 No. 14
CSA (File No. 236217)
CSA (Class No. 3211-37)
North America (UL listed, CSA certified)
UL (Category Control Number NMTR2, NMTR8)
UL (File No. E307559)
UL508A
IEC 60439-1
CSA-C22.2 No. 14
CSA (File No. 236217)
Product Tradename
xEffect SASY 60i
Product Type
Busbar system component
Product Sub Type
Busbar terminal
Delivery program
Type
185 mm system
60 mm system
Compact system
Connection
60 mm system
Compact system
Connection
Technical Data - Electrical
Voltage rating (UL CSA 13)
Max. 600 V AC
Rated operation current (Ie)
270 A
Rated operational current
270 A
Rated operational current (Ie) - max
270 A
Technical Data - Mechanical
Degree of protection
UL508A; CSA-C22.2 No. 14; IEC 60439-1; CE marking
Feeder circuits
Feeder circuits
Busbar thickness - min
10 mm
Busbar thickness - max
10 mm
Busbar width - min
0 mm
Busbar width - max
0 mm
Terminal contact area
1.5 mm x 11 mm
Terminal capacity (conductor)
4 mm² - 35 mm²
AWG 10 - AWG 2
9 mm x 0.8 mm (6x)
9 mm x 0.8 mm (3x)
AWG 10 - AWG 2
9 mm x 0.8 mm (6x)
9 mm x 0.8 mm (3x)
Conductor cross section - max
35 mm²
Width clamp
15.5 mm
Additional information
Functions
Connections
Universal conductor connection terminal
Current limiting circuit breaker, refer to approbation report
Universal conductor connection terminal
Current limiting circuit breaker, refer to approbation report
Special features
With integrated retaining spring, open terminal chamber and captive terminal screw
Suitable for
Round conductor connection
Sector conductor connection
Strip conductor connection
Flat rail
Sector conductor connection
Strip conductor connection
Flat rail
Used with
Feeder circuits
All 10 mm thick flat busbars
60 mm system
Connection
185 mm system
Compact system
All 10 mm thick flat busbars
60 mm system
Connection
185 mm system
Compact system
Technical data ETIM 9.0
Low-voltage industrial components (EG000017) / Busbar terminal (EC000001)
Electric engineering, automation, process control engineering / Terminal block systems and system components / Terminal block systems / Busbar terminal (ecl@ss13-27-25-01-16 [BAA025018])
Busbar thickness
10 - 10 mm
Busbar width
0 - 0 mm
Suitable for
Flat rail
Width clamp
15.5 mm
Max. conductor cross section
35 mm²
Max. rated operation current Ie
270 A
Suitable for round conductor connection
Yes
Suitable for sector conductor connection
Yes
Suitable for strip conductor connection
Yes
