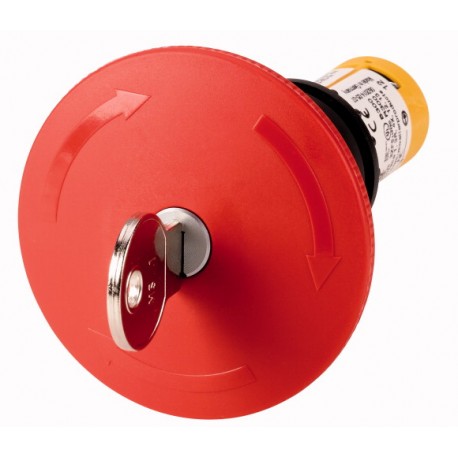

Emergency-stop, 60mm, MS1, 1NO1NC, red

C22-PVS60P-MS1-K11

Emergency-stop, Palm-tree shape, 60 mm, Key-release, MS1, 1 NC, 1 N/O, Screw connection, Not suitable for master key systems

Emergency-stop, Product range: RMQ Compact, Complete unit, Design: Palm-tree shape, Diameter: 60 mm, Illumination: Non-illuminated, Key-release, Connection type: Screw connection, Description: Tamper-proof according to ISO 13850/EN 418, Lock mechanism: MS1, Color Mushroom head: Red, Color Base: yellow, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts N/O = Normally open: 1 N/O, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7 , Minimum force for positive opening: N 20, Information about equipment supplied: 1 key included as standard, Standards: IEC/EN 60947-5-5, VDE 0660

More details


Low-voltage industrial components > Emergency stop complete

Auxiliary Control and Signalling Elements

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Emergency-stop, Palm-tree shape, 60 mm, Key-release, MS1, 1 NC, 1 N/O, Screw connection, Not suitable for master key systems
Emergency-stop, Product range: RMQ Compact, Complete unit, Design: Palm-tree shape, Diameter: 60 mm, Illumination: Non-illuminated, Key-release, Connection type: Screw connection, Description: Tamper-proof according to ISO 13850/EN 418, Lock mechanism: MS1, Colour Mushroom head: Red, Colour Base: yellow, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts N/O = Normally open: 1 N/O, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 20, Information about equipment supplied: 1 key included as standard, Standards: IEC/EN 60947-5-5, VDE 0660

Delivery program

Product range
RMQ Compact
Basic function
Controlled stop pushbuttons/emergency-stop buttons
Single unit/Complete unit
Complete unit
Design
Palm-tree shape
Diameter [⌀]
60 mm
Illumination
Non-illuminated
Approval
000Z425
Key-release
Connection type
Screw connection
Description
Tamper-proof according to ISO 13850/EN 418
Not suitable for master key systems
Lock mechanism
MS1
Colour
Mushroom head
Red
1160SPC-79
Base
yellow
Degree of Protection
IP66, IP67, IP69
Connection to SmartWire-DT
no
Contacts
N/C = Normally closed
1 NC
N/O = Normally open
1 N/O
Notes
= safety function, by positive opening to IEC/EN 60947-5-1
Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1
[mm]
4.65
Maximum travel [mm]
5.7
Minimum force for positive opening [ N]
20
Contact sequence
1160SWI-55
Contact travel■ = Contact closed□ = Contact open
Contact diagram
1160DIA-15
Positive opening (ZW)
yes
Information about equipment supplied
1 key included as standard

Technical data

General
Standards
IEC/EN 60947-5-5
VDE 0660
Lifespan, mechanical [Operations]
> 0.05 x 106
Operating frequency [Operations/h]
≦ 300
Actuating force
≦ 50 n
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Degree of Protection
IP66, IP67, IP69
Mounting position
As required
Terminal capacitiesSolid
2 x 0.5 - 1.5 mm2
Terminal capacitiesFlexible with ferrule
2 x 0.5 - 1.5 mm2
Tightening torque for terminal screw
0.8 Nm
Contacts
Rated impulse withstand voltage [Uimp]
4000 V AC
Rated insulation voltage [Ui]
250 V
Rated conditional short-circuit current [Iq]
1 kA
Overvoltage category/pollution degree
III/3
Control circuit reliabilityat 24 V DC/5 mA [HF]
values follow Fault probability
Control circuit reliabilityat 5 V DC/1 mA [HF]
values follow Fault probability
Max. short-circuit protective deviceFuse [gG/gL]
10 A

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Emergency stop complete (EC002034)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / EMERGENCY-STOP pushbutton, complete device ([email protected] [ACN986011])
Unlocking method
Key-release
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Degree of protection (IP)
IP67/IP69K
Mounting method
Built-in
With lighting
No
Hole diameter
22.5 mm
Connection type auxiliary circuit
Screw connection
Diameter cap
60 mm

Approvals

Product Standards
IEC/EN 60947-5-1; UL 508; CAN/CSA-C22.2 No. 14-05 und 94-M91; CE marking
UL File No.
E29184
UL Category Control No.
NKCR
CSA File No.
165628
CSA Class No.
321103
North America Certification
UL listed, CSA certified
Degree of Protection
1,3R,4X,12,13

Dimensions

1160DIM-24

ETIM for 121620 Low-voltage industrial controls and switchgear (EC002034)
Feature Name Feature Value
Unlocking method (EF001403) Key-release
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as normally open contact (EF008256) 1
Degree of protection (IP) (EF005474) IP67/IP69K
Degree of protection (NEMA) (EF011959) 4X, 13
Mounting method (EF000003) Built-in
With lighting (EF003829) No
Supply voltage lamp (EF006522) 0 V
Hole diameter (EF000079) 22.5 mm
Connection type auxiliary circuit (EF006820) Screw connection
Diameter cap (EF001423) 60 mm

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
C22-PVS60P-MS1-K11 C22-PVS60P-MS1-K11 121620 EN_121620.pdf 326 Kbytes C22-PVS60P-MS1-K11 C22-PVS60P-MS1-K11 121620 EN_121620.pdf
