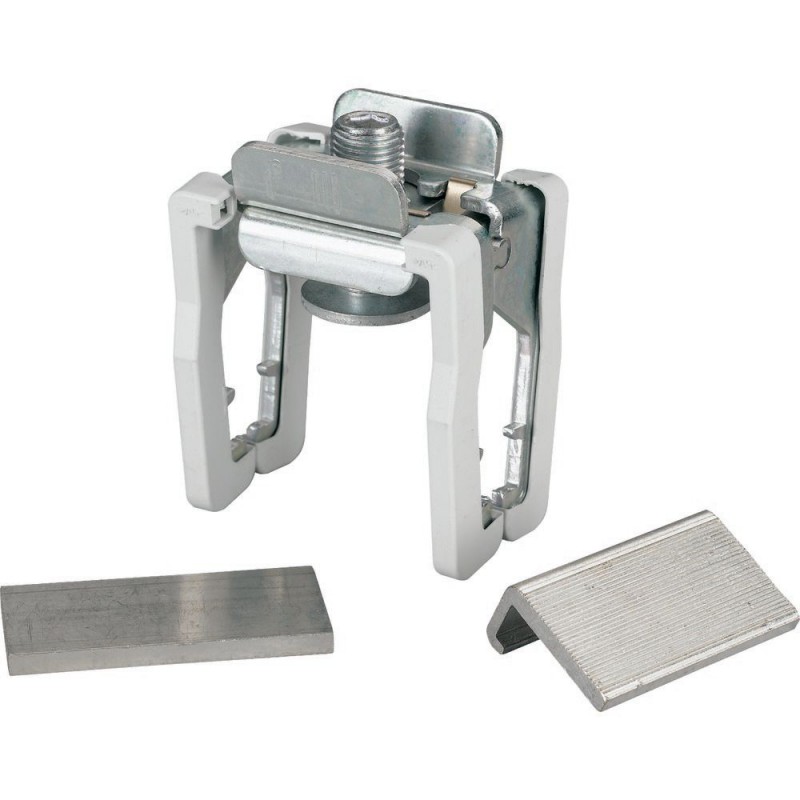

BBA-TP3/1000 107207 Y7-107207 EATON ELECTRIC Terminal plate, 3p, 1000mm², 1600A View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

BBA-TP3/1000 107207 Y7-107207 EATON ELECTRIC Terminal plate, 3p, 1000mm², 1600A

BBA-TP3/1000

107207

Y7-107207

EATON-MOELLER

Terminal plate, 3p, 1000mm², 1600A

BBA-TP3/1000

Eaton xEffect SASY 60i Enclosures Switch- & Controlgear Enclosure. Terminal plate, 3p, 1000mm², 1600A

Connection kit, 60 mm system, poles=3, terminal capacity=Up to (2 x) 10x50x1 and (2 x) 50x10, Ie=1600A, width=228mm, can be used for rail 30x10 and double T profile, termination space WxH=5x28, silicon free, chlorine free, self-extinguishing to UL 94, track resistance CTI 200, temperature resistant to 120 °C, adapted to Eaton NZM4, fixing direct over busbar terminals, passing through is not possible

More details


Low-voltage industrial components > Busbar terminal

Connection Accessories for Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $601.31
Unit price: $601.31
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton xEffect SASY 60i terminal plate
Catalog Number
107207
Model Code
BBA-TP3/1000
EAN
4015081069705
Product Length/Depth
90 mm
Product Height
204 mm
Product Width
228 mm
Product Weight
1.873 kg
Compliances
RoHS conform

Delivery program

Type

Technical data - electrical

Rated operation current (Ie)
1600 A
Rated operational current
1600 A
Rated operational current (Ie) - max
1600 A
Creepage resistance
CTI 200

Technical data - mechanical

Material
Silicon free, chlorine free
Busbar thickness - min
5 mm
Busbar thickness - max
10 mm
Busbar width - min
12 mm
Busbar width - max
30 mm
Terminal contact area
5 mm x 28 mm
Terminal capacity (conductor)
50 mm x 10 mm (2x)
10 segments of 50 mm x 1 mm (2x)
Conductor cross section - max
1000 mm²
Width clamp
228 mm

Design verification as per IEC/EN 61439 - technical data

Temperature resistance
Temperature resistant to 120 °C

Additional information

Features
Self-extinguishing acc. UL 94
Functions
Connection kit
Connections
Special features
  • Adapted to Eaton NZM4
  • Fixing direct over busbar terminals
  • Looping is possible
Suitable for
Flat rail
Three-pole
Round conductor connection
Sector conductor connection
Strip conductor connection
Used with
30 mm x 10 mm rail
Double T profile
60 mm system
Connection

ETIM for 107207 Low-voltage industrial controls and switchgear (EC000001)
Feature Name Feature Value
Busbar thickness (EF007220) 5 mm
Busbar width (EF007219) 12 mm
Suitable for (EF000073) Flat rail
Width clamp (EF007092) 228 mm
Max. conductor cross section (EF004969) 1000 mm²
Max. rated operation current Ie (EF007356) 1600 A
Suitable for round conductor connection (EF007258) Yes
Suitable for sector conductor connection (EF007260) Yes
Suitable for strip conductor connection (EF007242) Yes

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
BBA-TP3/1000 Y7-107207 107207 EN_107207.pdf 108 Kbytes BBA-TP3/1000 Y7-107207 107207 EN_107207.pdf
