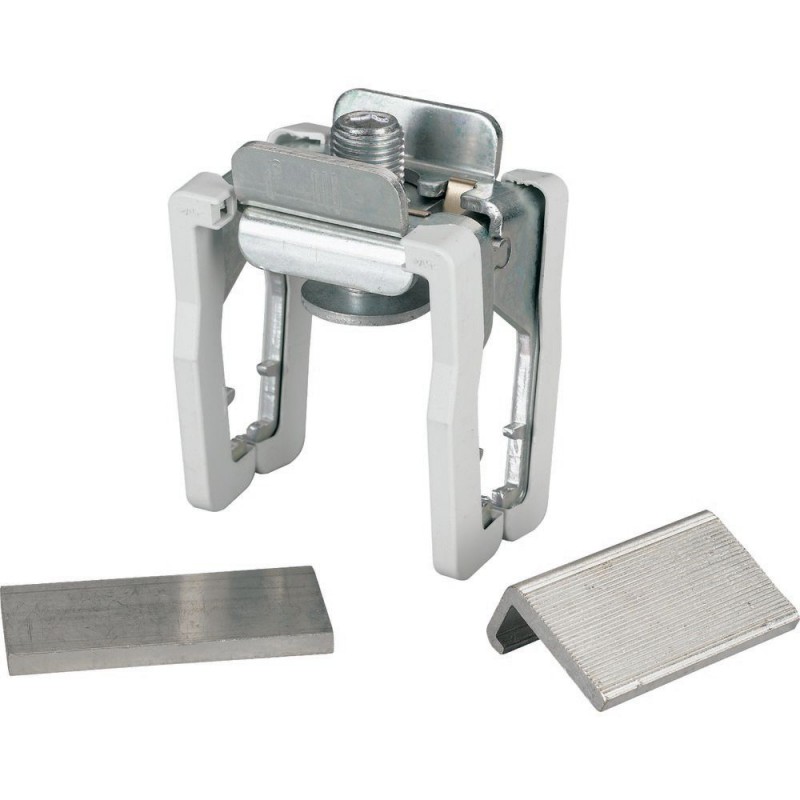

AKS1000 107208 Y7-107208 EATON ELECTRIC Clamp terminal, 1000mm² for 30x10 and T profile
AKS1000
107208
Y7-107208
EATON-MOELLER
Clamp terminal, 1000mm² for 30x10 and T profile
AKS1000
Eaton xEffect SASY 60i Enclosures Switch- & Controlgear Enclosure. Clamp terminal, 1000mm² for 30x10 and T profile
Clamp terminal, for SASY60i and SASY185i, termination space=55x28mm, for busbars 20x5/10 up to 30x10mm, double t and triple t profile-profile-, width=72mm, Ie=1600A, terminal capacities=2x 10x50x1 or 2x 50x10
Low-voltage industrial components > Busbar terminal
Connection Accessories for Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
RoHS conform
UL (File No. E307559)
CSA (Class No. 3211-37)
UL508A
CSA (File No. 236217)
CE marking
North America (UL listed, CSA certified)
IEC 60439-1
CSA-C22.2 No. 14
Delivery program
Technical data - electrical
Technical data - mechanical
UL508A; CSA-C22.2 No. 14; IEC 60439-1; CE marking
50 mm x 10 mm (2x)
Additional information
Current limiting circuit breaker, refer to approbation report
Clamp terminal
- Termination to busbars without drilling
- A contact block is used to connect the conductor to the busbar
Flat rail
Strip conductor connection
Sector conductor connection
Double T profile
30 mm x 5/10 mm rail
Feeder circuits
20 mm x 5/10 mm rail
| Feature Name | Feature Value |
|---|---|
| Busbar thickness (EF007220) | 5 mm |
| Busbar width (EF007219) | 20 mm |
| Suitable for (EF000073) | Flat rail |
| Width clamp (EF007092) | 72 mm |
| Max. conductor cross section (EF004969) | 1000 mm² |
| Max. rated operation current Ie (EF007356) | 1600 A |
| Suitable for round conductor connection (EF007258) | Yes |
| Suitable for sector conductor connection (EF007260) | Yes |
| Suitable for strip conductor connection (EF007242) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| AKS1000 Y7-107208 107208 EN_107208.pdf | 108 Kbytes |
|
