R-HEAT-150W 167272 Y7-167272 EATON ELECTRIC 167272 R-HEAT-150W
R-HEAT-150W
167272
Y7-167272
EATON-MOELLER
167272 R-HEAT-150W
R-HEAT-150W

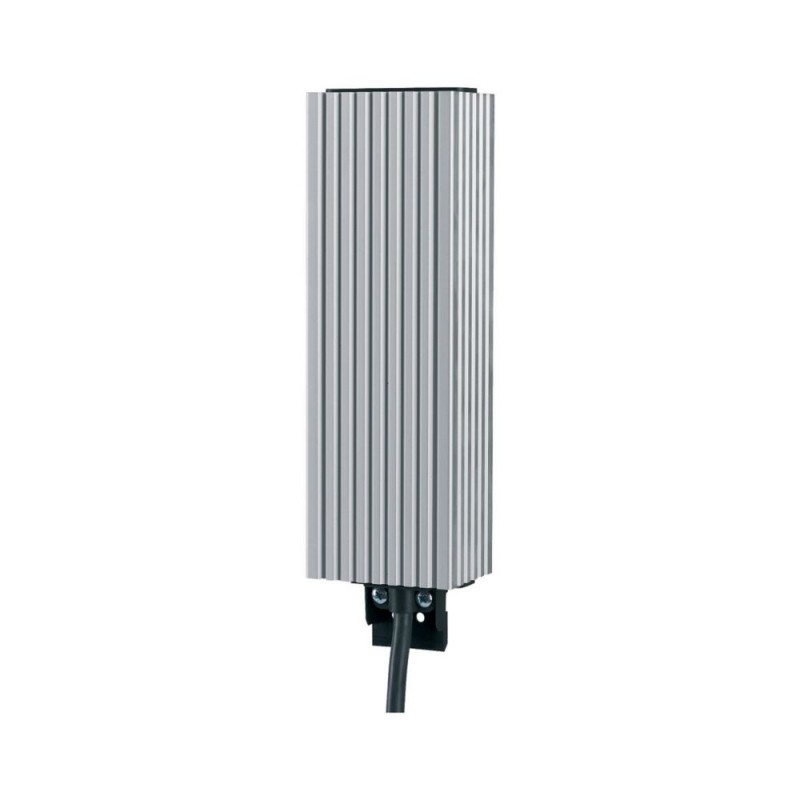

Eaton xEffect E-FAN Enclosures Switch- & Controlgear Enclosure. Radiant heater, 150W
Radiant heaters for avoiding excessively low temperatures and excessive air humidity; heating capacity 150W; max. surface temperature 150 C°; inrush current 7.5A; degree of protection IP44; rated operating voltage 230V AC 50/60Hz; continuous operation; mounting position any; bright anodized aluminum section; snap fitting for 35mm rigid busbar as per EN 60715; protection class I
Cabinet enclosures > Heating (switchgear cabinet)
Connection Accessories for Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Technical data - electrical
Technical data - mechanical
Additional information
| Feature Name | Feature Value |
|---|---|
| Rated power (EF007051) | 150 W |
| Operating voltage AC 50 Hz (EF008206) | 110 V |
| Operating voltage AC 60 Hz (EF008207) | 110 V |
| Operating voltage DC (EF008208) | 0 V |
| Voltage type (EF000187) | AC |
| With fan (EF002196) | No |
| With room temperature controller (EF001136) | No |
| Continuous heating power at 10 °C (EF011919) | 150 W |
| Width (EF000008) | 70 mm |
| Height (EF000040) | 250 mm |
| Depth (EF000049) | 50 mm |
| Degree of protection (IP) (EF005474) | IP44 |
| Degree of protection (NEMA) (EF011959) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| R-HEAT-150W Y7-167272 167272 EN_167272.pdf | 104 Kbytes |
|
