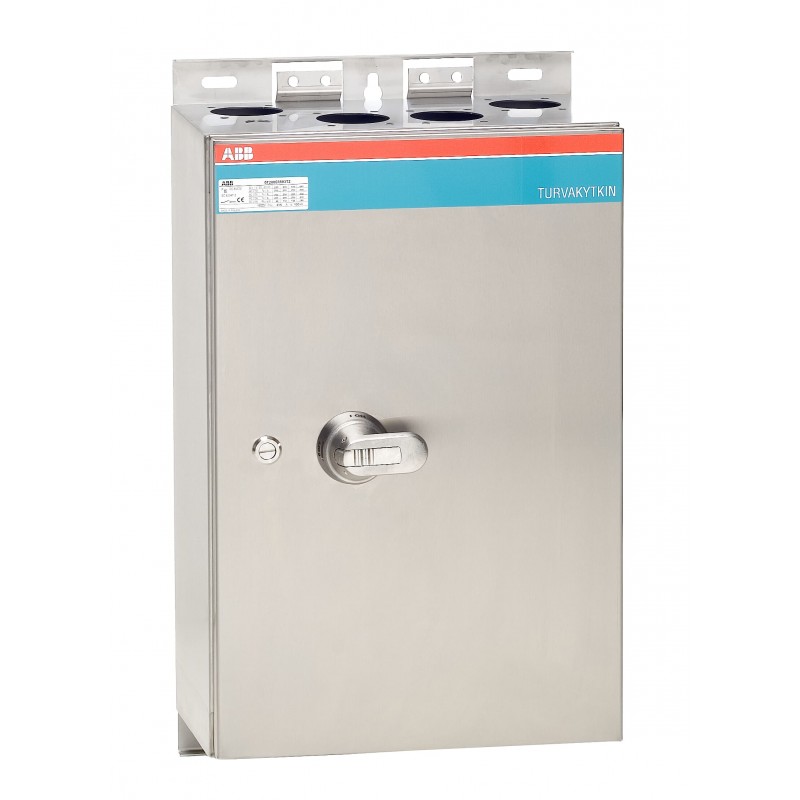

1SCA125630R1001 ABB OT160EVRRR3TZ Safety switch
1SCA125630R1001
ABB
OT160EVRRR3TZ Safety switch
Int. Box Disconnector OT160EVRRR3TZ
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | a31de2bf-98f9-4b84-bb2e-f733620376ba Finland |
| Simplified SCIP | eb8aa378-59be-485e-87ea-23995f926a34 Germany |
| 0d392085-f7be-4e06-9fe5-43dd4793b664 Denmark | |
| f36eaafa-9bf8-41af-a963-5ca16b74a745 Belgium | |
| 8984cfea-6197-45db-9dde-0a5f947f9ce3 Poland | |
| 89355745-435f-43c5-a737-4f8a0891b986 Netherlands | |
| 12983d44-f15b-4dac-9164-b3cae4b0670f Estonia | |
| ee7a71a1-eab0-46b9-9cfe-428b2af24073 Greece | |
| 4bd972c9-fee1-4f43-a9bc-5637f3eea7f6 Portugal | |
| 2ea52b65-c482-412e-abe6-d5a6849a3984 Poland | |
| 522fe51a-2428-4a01-a971-67daa786ff4f Spain | |
| 40722b51-dd07-44bd-bc12-d6f7e2345933 Croatia | |
| c3e96903-b24b-45e8-81a4-1fae0759cc47 Germany | |
| 679fdf38-c4d8-420e-9c1a-0b3a3935a1bf Germany | |
| 40c3bab7-6abd-47c7-a237-0f5e8e21d09b France | |
| 01a7aa0a-ea1b-478d-b31b-29acfb2ddf01 Hungary | |
| d40587e1-5795-4550-afd0-5b8f59aa9a59 Norway | |
| 900500ed-c9ac-4ab1-a833-6572340a3ea8 Germany | |
| db24aebc-9cc0-45f8-a626-dced72e7c18d Sweden | |
| 7300a3a6-89cc-4619-9ad3-cca3d5ed428f Hungary | |
| c5c942ac-fb30-4f23-b10d-738c5f74557e Germany | |
| 22d7f3ee-3950-4766-a772-a0d52aa1a4e0 Czech Republic | |
| ad64dd1e-d914-4284-bfe8-8ab455977af7 Poland | |
| c147a0e6-7c45-46f4-b7ae-8e6360961897 France | |
| 2cb78804-6e57-46b4-8a30-0491c6481b20 Italy | |
| dd47015b-b066-4557-adeb-b13ee28f6bfd Belgium | |
| cad62096-b29e-4db0-997f-776086e58ac4 Sweden | |
| 6a3aee3d-3bda-4fd3-9060-99d030a8b2f5 Bulgaria | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340008M0004 |
| Mechanical Drawings | OTRK604023P4R25.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 23.31 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 25 kg |
| Package Level 1 EAN | 6417019556741 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 4xring-flange+ø25.5mm / 4xring-flange+ø25.5mm |
| Color | Stainless |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Stainless steel |
| Handle Color | Stainless Steel |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 3.2 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 80 kW |
| (500 V) 112 kW | |
| (690 V) 144 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Special Functions | EMC |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 6 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 6 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340002D2703 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3135019 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 750 V |
| Rated operating voltage (EF001435) | 750 V |
| Rated permanent current Iu (EF001389) | 160 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 160 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 80 kW |
| Switching power at 400 V (EF009166) | 80 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Colour control element (EF007167) | Grey |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
