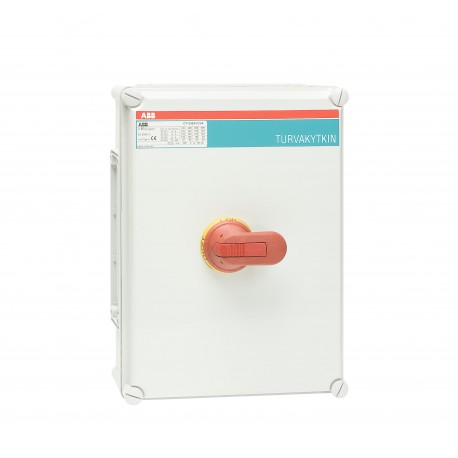

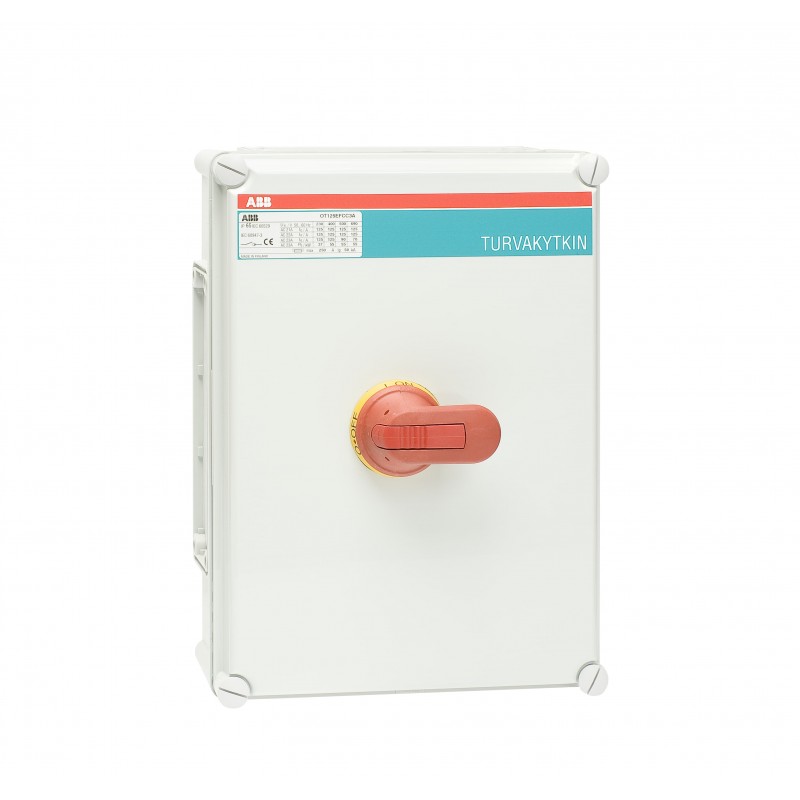

1SCA148616R1001 ABB OT160EVFCC3BA Enclosed Switch Disconnector
1SCA148616R1001
ABB
OT160EVFCC3BA Enclosed Switch Disconnector
Int. Box Disconnector OT160EVFCC3BA
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 5e3f4396-4401-4fe6-a2b0-aad70d57c34a Finland |
| Simplified SCIP | f4df3c2d-6f87-4512-95e1-37e3f6c31402 Germany |
| e6e764c0-72bb-4ca2-a209-d65ddeadf5b0 Germany | |
| 3815073e-df91-46c5-93a0-4a1c9b0cf7e0 Bulgaria | |
| 0651a0f2-f385-4b3b-ac17-8cfac104dbac Portugal | |
| 3d58b7b3-97c7-468b-abc7-324d1fc99170 Hungary | |
| 1909c201-f878-46a0-93a0-4ca3bfceba97 France | |
| d57f8e3c-f43e-417a-bbe2-0510c4edade3 Germany | |
| 687babbb-555d-4cc9-9ff8-d1a525dd39bd Belgium | |
| 25040dc4-32db-45cc-9973-6a22b5503e3a Italy | |
| 84030b86-3fee-401b-9c63-c80b624cad29 Estonia | |
| 9d921a84-e97a-4fc6-9492-040b1d5d25fb Greece | |
| 1ca3f963-cc3b-472d-804d-efe27b2bc45d Poland | |
| cfef3721-4ae0-4d57-b5bd-3ab583aa6097 France | |
| 50509a61-5580-4101-a762-119cf92d0486 Sweden | |
| 3adfe753-ebfc-47ae-b8f7-656d1fadf1f0 Poland | |
| bf940edf-66eb-4ab8-a28c-771fd3597e3d Netherlands | |
| 63ebcd92-6124-44c7-b3b6-5dfacf937d85 Hungary | |
| 36a932e0-2b04-49ea-9c9d-bc9f9a46936d Denmark | |
| 62f9cb7d-3407-4722-88f1-4c597dac0fa5 Sweden | |
| 225baefb-fd72-40dc-a631-b1e00561f31e Poland | |
| 9d0607c0-22b4-4c39-bf43-b3372bd8278a Spain | |
| 24727686-b9d8-4450-ba7c-f2d6456c228d Belgium | |
| 46b454c9-4554-4aac-8db8-d180ec311280 Norway | |
| 87a71766-0202-4f3b-b61a-88618bb900a1 Germany | |
| 6313f7b7-6d15-4d53-9de5-00da95b57556 Croatia | |
| 5ac65831-7f90-46c8-8f20-c0c1a8137372 Czech Republic | |
| 837a7c7a-8c6e-44f8-8335-95ae0574aed9 Germany | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340015M0004 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 380 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 4 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 295 mm |
| Package Level 1 Depth / Length | 510 mm |
| Package Level 1 Height | 265 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 6417019781464 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Enclosure Type | Fibox |
| Handle Color | Red / Yellow |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 88 kW |
| (500 V) 112 kW | |
| (690 V) 144 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 6 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 6 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340001D2703 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
