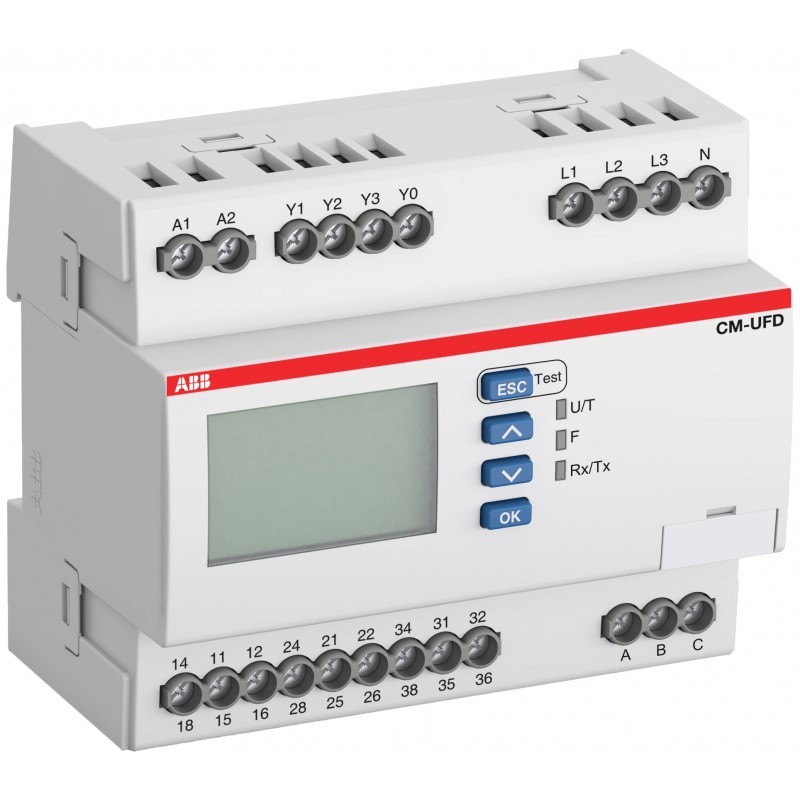

1SVR560731R3701 ABB Monitoring relay CM-UFDM31M
1SVR560731R3701
ABB
Monitoring relay CM-UFDM31M
CM-UFD.M31M Grid feeding monitoring rel. 3c/o,L-L=0-540VAC,L-N=0-312VAC,ModbusRTU
Relays > Voltage monitoring relay
Electronic relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 4013614521126 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC112270D0201 |
| Instructions and Manuals | 1SVC560515M0001 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 108 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 67 mm |
| Product Net Weight | 0.312 kg |
| Technical | |
| Function | Over- and undervoltage monitoring |
| Interrupted neutral monitoring | |
| Over- and underfrequency monitoring | |
| 10 minutes average value monitoring | |
| Vector shift detection | |
| ROCOF monitoring | |
| Measuring Range | 0 ... 540 V AC |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC/DC |
| Output | 3 C/O (SPDT) Contacts |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Minimum Switching Capacity | 24 V |
| 10 mA | |
| Degree of Protection | Housing IP20 |
| Terminals IP20 | |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 10 A |
| Output Circuit NO - F Type Fuses 10 A | |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | Nr. Operations 30000000 cycle |
| Connecting Capacity | Flexible with Ferrule 1x 0.25 ... 4.0 mm² |
| Flexible with Ferrule 2x 0.25 ... 0.75 mm² | |
| Flexible with Insulated Ferrule 1x 0.25 ... 4.0 mm² | |
| Flexible with Insulated Ferrule 2x 0.25 ... 0.75 mm² | |
| Flexible 1x 0.2 ... 4.0 mm² | |
| Flexible 2x 0.2 ... 1.5 mm² | |
| Rigid 1x 0.2 ... 6.0 mm² | |
| Rigid 2x 0.2 ... 1.5 mm² | |
| Tightening Torque | 0.5 ... 0.6 N·m |
| Wire Stripping Length | 8 mm |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | |
| Standards | VDE-AR-N 4105 |
| VDE-AR-N 4110 | |
| VDE-AR-N 4120 | |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Flexible with Ferrule 1x 24-12 AWG |
| Flexible with Ferrule 2x 24-18 AWG | |
| Flexible with Insulated Ferrule 1x 24-12 AWG | |
| Flexible with Insulated Ferrule 2x 24-18 AWG | |
| Flexible 1x 24-12 AWG | |
| Flexible 2x 24-16 AWG | |
| Rigid 1x 24-10 AWG | |
| Rigid 2x 24-16 AWG | |
| Tightening Torque UL/CSA | 4.4 ... 5.3 in·lb |
| Environmental | |
| Ambient Air Temperature | Operation -20 ... +60 °C |
| Storage -25 ... +50 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| ABB EcoSolutions | |
| Environmental Product Declaration - EPD | 1SAC200393H0001 |
| Certificates and Declarations | |
| cULus Certificate | cULus508_20170830-E140448 |
| Declaration of Conformity - CE | 1SVD981056-0001 |
| Declaration of Conformity - UKCA | 1SVD981056-1000 |
| TÜV Certificate | TUEV_AR-N4110_500810200-2019 |
| TUEV_BDEW_CM-UFD_M31 | |
| TUEV_AoC_44254-53768-01 | |
| TUEV_BDEW_D8_17_11_44254_017 | |
| ESY_0442540071 | |
| MAVIR-OVRAM-JKV-00748-00-2024-05-31 | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 121 mm |
| Package Level 1 Depth / Length | 71 mm |
| Package Level 1 Height | 99 mm |
| Package Level 1 Gross Weight | 0.365 kg |
| Package Level 1 EAN | 4013614521126 |
| External Classifications and Standards | |
| Object Classification Code | B |
| ETIM 7 | EC001438 - Voltage monitoring relay |
| ETIM 8 | EC001438 - Voltage monitoring relay |
| ETIM 9 | EC001438 - Voltage monitoring relay |
| eClass | V11.0 : 27371801 |
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Voltage measuring range 1 (EF006134) | 0 V |
| Voltage measuring range 2 (EF006135) | 0 V |
| Type of voltage measuring range (EF003399) | AC |
| Response value voltage (EF008193) | 0 V |
| Min. adjustable delay-on energization time (EF008190) | 1 s |
| Min. adjustable off-delay time (EF008192) | 1 s |
| Width (EF000008) | 108 mm |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 67 mm |
