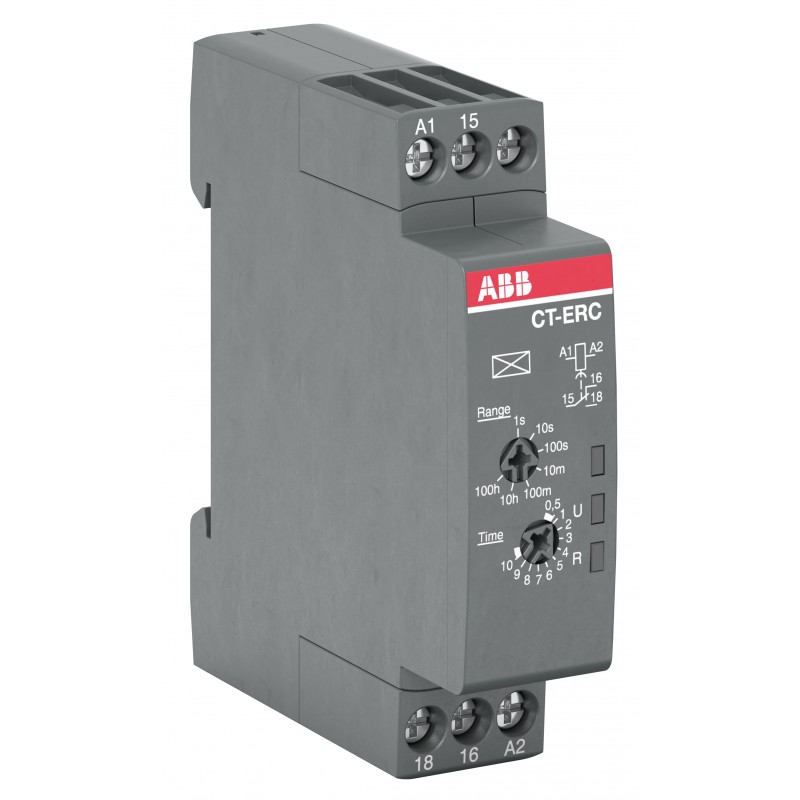

1SVR508100R0000 ABB CT-ERC.12
1SVR508100R0000
ABB
CT-ERC.12
CT-ERC.12 Time relay, ON-delay 1c/o, 24-48VDC/24-240VAC
Relays > Timer relay
Electronic relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Often bought together
▲Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 4013614534317 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC110004C0210_01 |
| Instructions and Manuals | 1SVC500020M1001 |
| 1SVC500020M0001 | |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC405924_EPLAN |
| Dimensions | |
| Product Net Width | 17.5 mm |
| Product Net Height | 70 mm |
| Product Net Depth / Length | 63 mm |
| Product Net Weight | 0.052 kg |
| Technical | |
| Timer Relay Type | ON-Delay |
| Time Range | 0.05 s ... 100 h |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC |
| 24 ... 48 V DC | |
| Rated Operational Voltage | Auxiliary Circuit 250 V |
| Rated Frequency (f) | 50 / 60 Hz |
| DC | |
| Output | 1 C/O (SPDT) Contact |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Minimum Switching Capacity | 12 V |
| 100 mA | |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
| Output Circuit 1 / Output Circuit 2 300 V | |
| Degree of Protection | Housing IP50 |
| Terminals IP20 | |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A |
| Output Circuit NO - F Type Fuses 10 A | |
| Connecting Capacity | Flexible 1x 0.5 ... 2.5 mm² |
| Flexible 2x 0.5 ... 1.5 mm² | |
| Rigid 1x 0.5 ... 4 mm² | |
| Rigid 2x 0.5 ... 1.5 mm² | |
| Tightening Torque | 0.5 ... 0.8 N·m |
| Wire Stripping Length | 7 mm |
| Recommended Screw Driver | 0.8 x 4 |
| Pozidriv 1 | |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards | CAN/CSA C22.2 No.14 |
| IEC/EN 63000 | |
| IEC 61812-1 | |
| UL 508 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG |
| Flexible 2x 18-16 AWG | |
| Rigid 1x 20-12 AWG | |
| Rigid 2x 20-16 AWG | |
| Tightening Torque UL/CSA | 4.43 ... 7.08 in·lb |
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-2 |
| Environmental | |
| Ambient Air Temperature | Operation -20 ... +60 °C |
| Storage -40 ... +85 °C | |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| SCIP | f001acf5-a161-41e7-b91c-26b273b31434 Germany |
| Simplified SCIP | d527d098-30d4-49b3-9941-2b6f8d436ba6 Germany |
| dce31b32-2ca9-4f35-8201-74afad3fdb20 Poland | |
| 29d1fe00-3efe-47ed-975f-587a836e88b6 Norway | |
| 5e268c87-9f91-421c-ab6c-697c8a96143f Hungary | |
| 651f801e-3187-4405-a9bd-3681f014790f Bulgaria | |
| 484ba575-474d-4b9f-be0e-55ab6e742d23 Greece | |
| 85797548-20ab-4979-8ce8-81ae70f4157d Estonia | |
| 46968d40-0530-4dc3-b297-af073e0053e3 Sweden | |
| 7aabbd9c-9fcc-4fa6-9201-e4947ae1b035 Sweden | |
| b6a9253a-41ac-43d3-bd43-d52e49620036 France | |
| 47456910-883f-4229-872e-ff2e3bf990e5 Poland | |
| 8befcbde-59bc-4239-8607-9baf3a2104fd Denmark | |
| 09a69f1c-7421-4fc4-a87e-1dda0a19de2d Germany | |
| 2c142811-af17-41c8-9cd0-69f335a40a63 Belgium | |
| 8f3175e1-3632-4adf-88b4-88de7a637d88 Italy | |
| eb5be464-17fe-469f-9ef4-b57aa5491747 Finland | |
| 63d29f79-95e6-4f3b-8e1c-3cf5b3d92f20 Poland | |
| 54834da2-6d3c-41cf-af14-a78fd76912f0 Netherlands | |
| eb003df3-740d-4b68-ab79-0479e79a5180 Croatia | |
| 678402d9-6488-42a9-bb82-023822848993 Czech Republic | |
| c8d28db5-e6e7-4778-babd-b859d1106adc Belgium | |
| e5e5e0b5-0715-47bd-9a82-8fd5575f0bc4 Germany | |
| aa420a6b-fb07-479f-a31f-dc1b5fbae610 Germany | |
| bb53bdd9-b874-4fa8-b88a-a81010f968f9 Hungary | |
| 1568b01e-f642-4863-8406-a744e191f387 France | |
| 3a3ed994-5394-42a0-b748-2becbd9ebebc Spain | |
| 271a1a89-17ee-49b1-8013-ce4d89b68b25 Portugal | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| Certificates and Declarations | |
| CCC Certificate | CCC_2019010303150608 |
| CQC Certificate | CQC2019010303150608 |
| cULus Certificate | cULus_20031209-E140448 |
| Declaration of Conformity - CCC | 2020980303000209 |
| Declaration of Conformity - CE | 1SVD981068 |
| Declaration of Conformity - UKCA | 1SVD981068-10 |
| DNV GL Certificate | DNV_GL_TAA00002TS |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 89 mm |
| Package Level 1 Depth / Length | 20 mm |
| Package Level 1 Height | 65 mm |
| Package Level 1 Gross Weight | 0.065 kg |
| Package Level 1 EAN | 4013614534317 |
| Package Level 2 EAN | 4013614580338 |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001439 - Timer relay |
| ETIM 8 | EC001439 - Timer relay |
| ETIM 9 | EC001439 - Timer relay |
| eClass | V11.0 : 27371605 |
| UNSPSC | 39122329 |
| E-Number (Finland) | 2712827 |
| E-Number (Norway) | 4189318 |
| E-Number (Sweden) | 4030218 |
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Function delay-on energization (EF003374) | Yes |
| Function delay on de-energization (EF003401) | No |
| Function floating contact on energization (EF003378) | No |
| Function floating contact on de-energization (EF003402) | No |
| Function star-delta (EF003380) | No |
| Function pulse shaping (EF003403) | No |
| Function flashing, starting with pause, fixed time (EF003363) | No |
| Function flashing, starting with pulse, fixed time (EF003364) | No |
| Clock function, starting with pause, variable (EF003365) | No |
| Clock function, starting with pulse, variable (EF003366) | No |
| Remote operation possible (EF003361) | No |
| Suitable as remote control (EF003362) | No |
| Pluggable on auxiliary contact block (EF006952) | No |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Rated control supply voltage DC (EF003980) | 24 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Nominal current (EF000001) | 4 A |
| Time range (EF003384) | 0.05 s |
| Number of outputs, undelayed, normally closed contact (EF006835) | 0 |
| Number of outputs, undelayed, normally open contact (EF006836) | 0 |
| Number of outputs, undelayed, change-over contact (EF006837) | 1 |
| Number of outputs, delayed, normally closed contact (EF006838) | 0 |
| Number of outputs, delayed, normally open contact (EF006839) | 0 |
| Number of outputs, delayed, change-over contact (EF006840) | 1 |
| Outputs, reversible delayed/undelayed (EF006988) | No |
| With semiconductor output (EF003373) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Width (EF000008) | 17.5 mm |
| Height (EF000040) | 70 mm |
| Depth (EF000049) | 63 mm |
