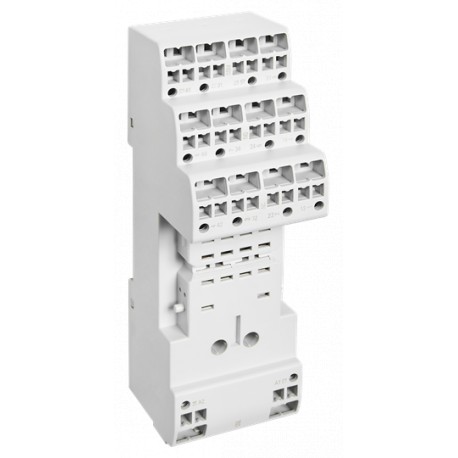

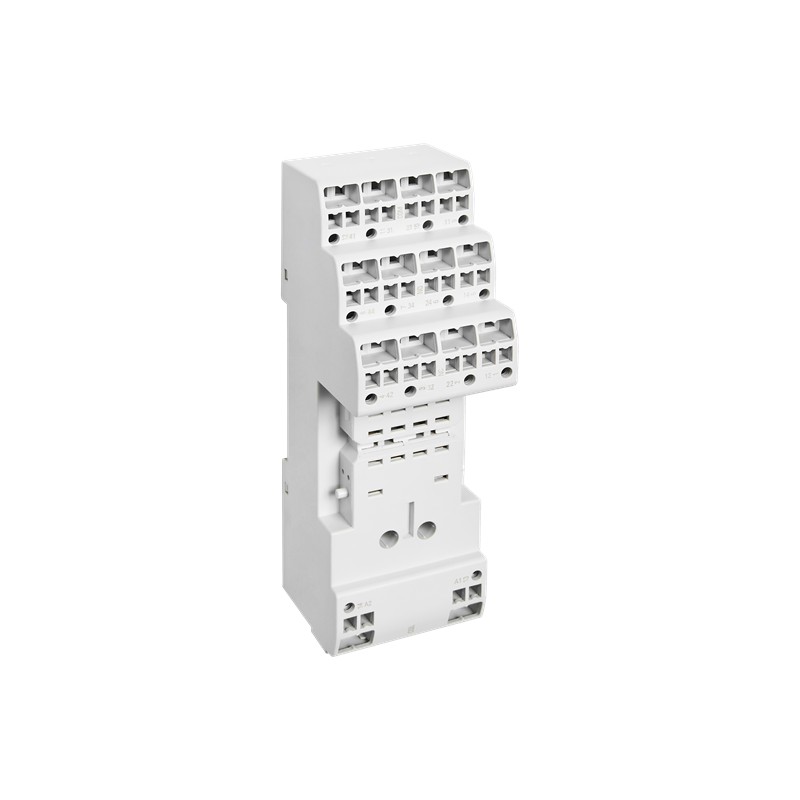

1SVR405651R6110 ABB Standard base for 4 Push-in contacts
1SVR405651R6110
ABB
10
Standard base for 4 Push-in contacts
CR-M4LP Push-in socket for 4c/o CR-M relay
Relays > Relay socket
Electronic relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 4053546062151 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85366990 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC110004C0210_05 |
| Instructions and Manuals | 1SVC405650M9040 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 30.6 mm |
| Product Net Height | 42.5 mm |
| Product Net Depth / Length | 98.4 mm |
| Product Net Weight | 0.065 kg |
| Technical | |
| Function | Accessory for interface relays CR-M |
| Sub-Function | Socket for miniature relays |
| Sub-Function 2 | Logical socket for miniature relay 2 c/o or 4 c/o |
| Rated Operational Voltage | 250 V |
| Output Signal | 250 V / 6 A |
| Terminal Type | Push-in Spring Terminals |
| Rated Insulation Voltage (Ui) | 2000 V |
| Wire Stripping Length | 10 mm |
| Recommended Screw Driver | 2.5 |
| Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14 |
| IEC/EN 63000 | |
| IEC/EN 61984 | |
| UL 508 | |
| Technical UL/CSA | |
| Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-17 AWG |
| Rigid 2x 20-16 AWG | |
| Stranded 2 x 20-16 AWG | |
| Flammability According to UL94 | V-0 |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... +70 °C |
| Storage -40 ... +70 °C | |
| Maximum Operating Altitude Permissible | 2000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| Certificates and Declarations | |
| CSA Certificate | CSA_262671_2785566 |
| cURus Certificate | cURus508_E244328 |
| Declaration of Conformity - CE | 1SVD982020-0001 |
| Declaration of Conformity - UKCA | 1SVD982020-1000 |
| Container Information | |
| Package Level 1 Units | carton 10 piece |
| Package Level 1 Width | 104 mm |
| Package Level 1 Depth / Length | 162 mm |
| Package Level 1 Height | 87 mm |
| Package Level 1 Gross Weight | 0.704 kg |
| Package Level 1 EAN | 4053546062168 |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001456 - Relay socket |
| ETIM 8 | EC001456 - Relay socket |
| ETIM 9 | EC001456 - Relay socket |
| eClass | V11.0 : 27371603 |
| UNSPSC | 39122335 |
| E-Number (Norway) | 4187816 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF ABB Time Relays CT-C CT-S CT-D 2024 EN.pdf | 47 Mbytes |
|
| 1SVR405651R6110 1SVR405651R6110 EN_1SVR405651R6110.pdf | 383 Kbytes |
|
