1SVR508020R0000 ABB CT-MFC.12
1SVR508020R0000
ABB
CT-MFC.12

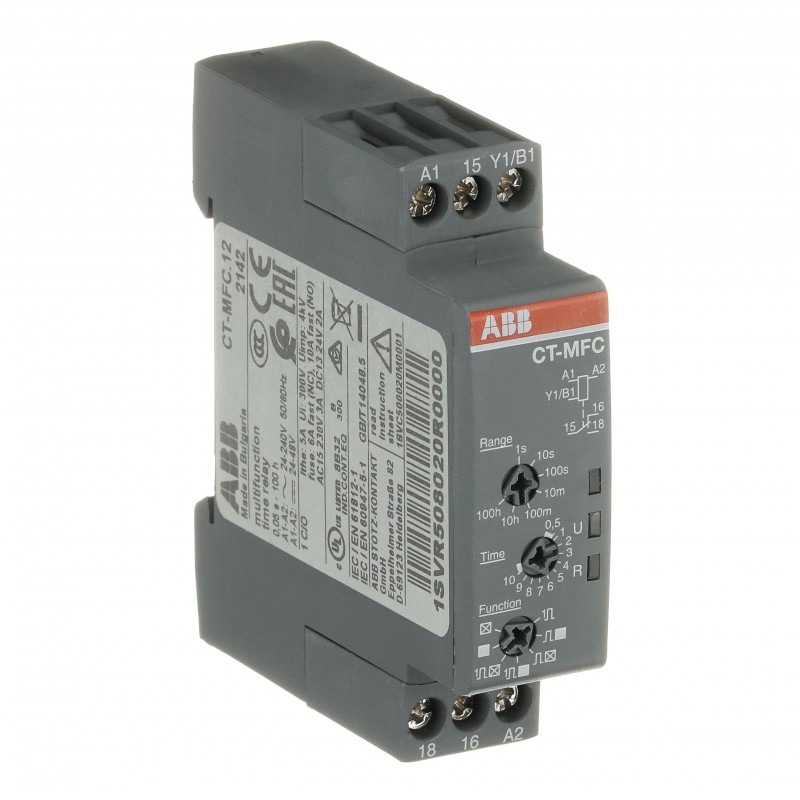

CT-MFC.12 Time relay, Multifunctional 1c/o, 24-48VDC/24-240VAC
Relays > Timer relay
Electronic relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Often bought together
▲Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 4013614534331 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC110004C0210_01 |
| Instructions and Manuals | 1SVC500020M1001 |
| 1SVC500020M0001 | |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC405924_EPLAN |
| Dimensions | |
| Product Net Width | 17.5 mm |
| Product Net Height | 70 mm |
| Product Net Depth / Length | 63 mm |
| Product Net Weight | 0.053 kg |
| Technical | |
| Timer Relay Type | ON-Delay |
| OFF-Delay | |
| Impulse ON | |
| Impulse OFF | |
| Flasher Starting with ON | |
| Flasher Starting with OFF | |
| Pulse Former | |
| Time Range | 0.05 s ... 100 h |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC |
| 24 ... 48 V DC | |
| Rated Operational Voltage | Auxiliary Circuit 250 V |
| Rated Frequency (f) | 50 / 60 Hz |
| DC | |
| Output | 1 C/O (SPDT) Contact |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Minimum Switching Capacity | 12 V |
| 100 mA | |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
| Output Circuit 1 / Output Circuit 2 300 V | |
| Degree of Protection | Housing IP50 |
| Terminals IP20 | |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A |
| Output Circuit NO - F Type Fuses 10 A | |
| Connecting Capacity | Flexible 1x 0.5 ... 2.5 mm² |
| Flexible 2x 0.5 ... 1.5 mm² | |
| Rigid 1x 0.5 ... 4 mm² | |
| Rigid 2x 0.5 ... 1.5 mm² | |
| Tightening Torque | 0.5 ... 0.8 N·m |
| Wire Stripping Length | 7 mm |
| Recommended Screw Driver | 0.8 x 4 |
| Pozidriv 1 | |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards | CAN/CSA C22.2 No.14 |
| IEC/EN 63000 | |
| IEC 61812-1 | |
| UL 508 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG |
| Flexible 2x 18-16 AWG | |
| Rigid 1x 20-12 AWG | |
| Rigid 2x 20-16 AWG | |
| Tightening Torque UL/CSA | 4.43 ... 7.08 in·lb |
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-2 |
| Environmental | |
| Ambient Air Temperature | Operation -20 ... +60 °C |
| Storage -40 ... +85 °C | |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| SCIP | e42bbef4-b647-439d-8fd1-bae49813326d Germany |
| Simplified SCIP | 42746d12-2099-41f2-8101-71cf51bb12d7 Germany |
| 5d3b2ac6-2d2f-42a6-a538-5af7831e558f Spain | |
| d91e4417-0b10-4a34-af02-c6573008f5d7 Belgium | |
| f45b1d3a-a499-4664-aa95-96131cf38276 Greece | |
| 286dfb7d-50d8-45ed-8053-0211aea05e48 Italy | |
| dd998848-0fcf-42c6-9e7f-4b88ab19117e Finland | |
| 4d1a6629-d1cb-438c-b923-8cef3eb1aca2 Belgium | |
| bfa24eb2-0d7f-441e-af25-e7d315bd1b57 Portugal | |
| ce8af8e9-179d-4194-ada5-c27a79d1b29b Poland | |
| 9770adb3-700e-475e-af33-6cf5ae658c36 Norway | |
| 0ed33991-100b-455e-8dbc-91f567fb8dbc Germany | |
| fe5de6a1-e13a-4b9b-a3b0-f62bf1b25c20 Denmark | |
| 28666d9d-dfaf-4388-b11f-7f824991df6f Germany | |
| f194a23e-2eda-427f-a96f-50536347b0c2 Croatia | |
| 1da7da63-925c-4f8e-b4dc-ff5a8176daf2 Czech Republic | |
| 23d352ee-ac30-44e5-be3f-aeb3d1e293f4 Bulgaria | |
| c2119905-137d-477d-bad6-c744bc26c3d4 Sweden | |
| bb540a30-8f0c-4eb4-84fa-9387ce8011fc Poland | |
| d2117fcb-de70-4532-9967-a07d8a64488e Poland | |
| 1ccd5246-b00d-4274-9d36-320e58feaca6 Netherlands | |
| 0774872e-1d0f-4b41-a37c-af394aa46539 Hungary | |
| a835e83a-f250-4cc0-a3f5-b377e61e0170 Estonia | |
| 4fd515d7-e866-44f2-b851-30e821e05703 France | |
| b44cc001-de38-469a-8b59-cd358d7d4b35 Sweden | |
| 77084aeb-69df-4bc9-994d-69adb2503616 Germany | |
| 60fa2df8-8401-4f67-85b1-49c76440a569 Hungary | |
| 92542e13-7816-4a88-b6ba-27a2be1cf0ff France | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| Certificates and Declarations | |
| CCC Certificate | CCC_2019010303150608 |
| CQC Certificate | CQC2019010303150608 |
| cULus Certificate | cULus_20031209-E140448 |
| Declaration of Conformity - CCC | 2020980303000209 |
| Declaration of Conformity - CE | 1SVD981068 |
| Declaration of Conformity - UKCA | 1SVD981068-10 |
| DNV GL Certificate | DNV_GL_TAA00002TS |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 89 mm |
| Package Level 1 Depth / Length | 20 mm |
| Package Level 1 Height | 65 mm |
| Package Level 1 Gross Weight | 0.065 kg |
| Package Level 1 EAN | 4013614534331 |
| Package Level 2 EAN | 4013614580420 |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001439 - Timer relay |
| ETIM 8 | EC001439 - Timer relay |
| ETIM 9 | EC001439 - Timer relay |
| eClass | V11.0 : 27371605 |
| UNSPSC | 39122329 |
| E-Number (Finland) | 2712825 |
| E-Number (Norway) | 4189316 |
| E-Number (Sweden) | 4030216 |
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Function delay-on energization (EF003374) | Yes |
| Function delay on de-energization (EF003401) | Yes |
| Function floating contact on energization (EF003378) | Yes |
| Function floating contact on de-energization (EF003402) | Yes |
| Function star-delta (EF003380) | No |
| Function pulse shaping (EF003403) | Yes |
| Function flashing, starting with pause, fixed time (EF003363) | Yes |
| Function flashing, starting with pulse, fixed time (EF003364) | Yes |
| Clock function, starting with pause, variable (EF003365) | No |
| Clock function, starting with pulse, variable (EF003366) | No |
| Remote operation possible (EF003361) | No |
| Suitable as remote control (EF003362) | No |
| Pluggable on auxiliary contact block (EF006952) | No |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Rated control supply voltage DC (EF003980) | 24 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Nominal current (EF000001) | 4 A |
| Time range (EF003384) | 0.05 s |
| Number of outputs, undelayed, normally closed contact (EF006835) | 0 |
| Number of outputs, undelayed, normally open contact (EF006836) | 0 |
| Number of outputs, undelayed, change-over contact (EF006837) | 1 |
| Number of outputs, delayed, normally closed contact (EF006838) | 0 |
| Number of outputs, delayed, normally open contact (EF006839) | 0 |
| Number of outputs, delayed, change-over contact (EF006840) | 1 |
| Outputs, reversible delayed/undelayed (EF006988) | No |
| With semiconductor output (EF003373) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Width (EF000008) | 17.5 mm |
| Height (EF000040) | 70 mm |
| Depth (EF000049) | 63 mm |
