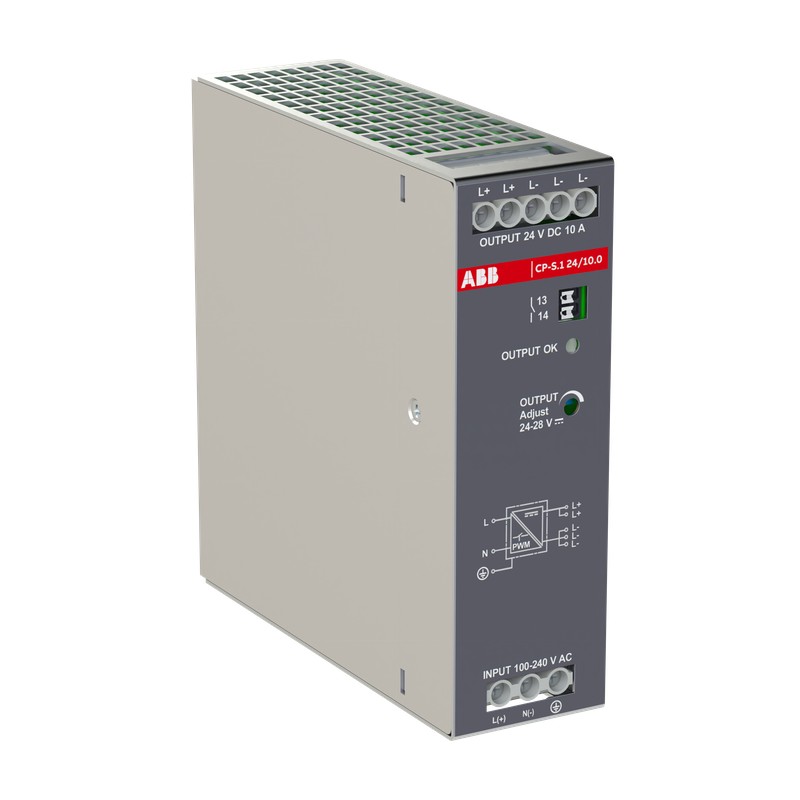

1SVR320661R1000 ABB CP-S.1 24/10.0 Source of alim. 24Vdc/10A
1SVR320661R1000
ABB
CP-S.1 24/10.0 Source of alim. 24Vdc/10A
CP-S.1 24/10.0 Power supply In:100-240VAC/100-250VDC Out:DC 24V/10A
Low-voltage industrial components > DC-power supply
Electronic relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85044095 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SAC200139H0001 |
| Instructions and Manuals | 1SVC320360M0000 |
| Wiring Diagram | 9AKK107992A8774 |
| Dimensions | |
| Product Net Width | 40 mm |
| Product Net Height | 129.4 mm |
| Product Net Depth / Length | 127 mm |
| Product Net Weight | 0.83 kg |
| Container Information | |
| Package Level 1 Width | 72 mm |
| Package Level 1 Depth / Length | 155 mm |
| Package Level 1 Height | 169 mm |
| Package Level 1 Gross Weight | 0.96 kg |
| Package Level 1 EAN | 4013614561115 |
| Package Level 1 Units | box 1 piece |
| Package Level 2 Width | 400 mm |
| Package Level 2 Depth / Length | 600 mm |
| Package Level 2 Height | 190 mm |
| Package Level 2 Gross Weight | 19 kg |
| Package Level 2 Units | carton 19 piece |
| Technical | |
| Function | Switch mode power supply |
| Number of Phases | 1-phase |
| Rated Input Voltage (UIN) | 100 ... 240 V AC |
| 100 ... 250 V DC | |
| Input Voltage (Uin) | 85 ... 264 V AC |
| 90 ... 277 V DC | |
| Typical Input Current | (115 V AC) 2.45 A |
| (230 V AC) 1.25 A | |
| Hold-up Time | (230 V AC) min. 20 ms |
| Rated Frequency (f) | 50 / 60 Hz |
| DC | |
| Rated Frequency Limits | 45 ... 65 Hz |
| Characteristic of Output | U/I characteristic curve with power reserve |
| Rated Output Power | 240 W |
| Output Power | 240 W |
| Rated Output Voltage | 24 V DC |
| Output Voltage (Uout) | 24 V DC |
| Output Current | 10 A |
| Output Current Maximum (Iout) | 15 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 4 kV |
| Input Circuit / PE 4 kV | |
| Input Circuit / Relay Contact 4 kV | |
| Output Circuit / PE 0.8 kV | |
| Output Circuit 0.8 kV | |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
| Input Circuit / PE 300 V | |
| Input Circuit / Relay Contact 300 V | |
| Output Circuit / PE 50 V | |
| Degree of Protection | Housing IP20 |
| Terminals IP20 | |
| Pollution Degree | 2 |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.5 ... 4.0 mm² |
| Flexible 0.5 ... 4.0 mm² | |
| Rigid 0.5 ... 4 mm² | |
| Connecting Capacity Output Circuit | Flexible with Ferrule 0.5 ... 4.0 mm² |
| Flexible 0.5 ... 4.0 mm² | |
| Rigid 0.5 ... 4 mm² | |
| Tightening Torque | Input Circuit 0.5 N·m |
| Output Circuit 1.13 N·m | |
| Wire Stripping Length | Auxiliary Circuit 7 mm |
| Input Circuit 9 mm | |
| Output Circuit 9 mm | |
| Recommended Screw Driver | PH1 |
| 0.8 x 4 | |
| Input Circuit / Output Circuit PH1 | |
| Minimum Mounting Distance | Other Device Same Type, Horizontal 30 mm |
| Other Device Same Type, Vertical 50 mm | |
| Mounting Position | 1 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Technical UL/CSA | |
| Connecting Capacity Input Circuit UL/CSA | Flexible with Ferrule 20-12 AWG |
| Flexible 20-12 AWG | |
| Rigid 20-12 AWG | |
| Connecting Capacity Output Circuit UL/CSA | Flexible with Ferrule 20-12 AWG |
| Flexible 20-12 AWG | |
| Rigid 20-12 AWG | |
| Tightening Torque UL/CSA | Input Circuit 4.4 in·lb |
| Output Circuit 4.4 in·lb | |
| Electromagnetic Compatibility | |
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 | Level 4 Air Discharge 15 kV |
| Level 4 Contact Discharge 8 kV | |
| Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3 | Level 3 10 V/m |
| Surge Immunity acc. to IEC 61000-4-5 | Level 4 Line-to-Ground 4 kV |
| Level 4 Line-to-Line 2 kV | |
| Electromagnetic Compatibility (EMC) | Immunity - Class B |
| Emission - Class B | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Maximum Operating Altitude Permissible | 5000 m |
| Resistance to Damp Heat acc. to IEC 60068-2-30 | Test Db: 55°C, 2 cycles |
| Resistance to Shock acc. to IEC 60068-2-27 | 30g 3 shocks 6 ms |
| Resistance to Vibrations | ±0.15 mm 10 ... 58 Hz |
| 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD982001-4501 |
| RoHS Declaration | 1SVD982001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 850fcd00-6fac-47cc-981e-e725c90b884d Germany |
| Simplified SCIP | 004a1304-32ed-47b4-845f-ca8a8d6d2b62 Spain |
| 01d23835-cc7a-4a93-bd2a-9497e3ac7683 Bulgaria | |
| 108eb8c6-3b60-4ccf-8518-62c049161b78 Denmark | |
| 13adbbe3-f806-446e-b99b-cb938428a984 Italy | |
| 1ce31467-af6a-48b8-ba4a-5e8d9551c09e Germany | |
| 24eddf8f-121a-468f-8acb-4858ae2c8723 Hungary | |
| 324a6a7b-da37-44c0-b91f-b5053e0ea5d7 Portugal | |
| 32524d23-04d0-4bcb-8b0e-70935b1f3b27 Sweden | |
| 32b3a069-aecb-477a-a348-be025c34efec France | |
| 37983b4a-0d6c-4b6b-8b8d-1f991c29add7 Germany | |
| 3b9df1ca-5ffc-4fd4-870e-96d256dc7180 Netherlands | |
| 5cd805f8-24a9-4572-973f-a9267c019565 Belgium | |
| 5d9f2b60-a41e-4308-ba4c-5a1f561572c4 Poland | |
| 90107371-304c-4b17-abc2-2de4cdff4aa5 Germany | |
| beae0f74-a51a-47f3-923c-431ef1e6513b Sweden | |
| cfae6c6a-0087-4982-9df4-741b0268975a Poland | |
| d180c37a-d8e2-40d5-bd4b-333a19ed0d9d Finland | |
| d2c79401-2f53-45c6-a93d-a14017aa9a83 Germany | |
| d8b19dcc-5e33-4ddc-968e-fee1841a6c2b Estonia | |
| d9d18af8-e831-42ee-b5c4-3bac4ffe7938 Norway | |
| da3406e3-d641-4c17-a9e3-8c575b6cc033 Greece | |
| eacb5492-062f-4642-842a-c58948edeb70 Belgium | |
| ee67147a-7fd6-445a-b527-7cbb5adac8ea Croatia | |
| f08fb773-febf-49b7-b0f1-9fe2a1028d92 Poland | |
| f3d43484-fecd-4159-aa9a-6227c1094680 Czech Republic | |
| f74a1157-fbcb-4cd7-a21f-782c9a3812e8 Hungary | |
| fa116dbe-d322-476b-b72c-7854b69e5078 France | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006535 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CB Certificate | CB_DE_2-029942 |
| cULus Certificate | cULus61010-1_E174460 |
| cULus121201_E523399 | |
| Declaration of Conformity - CE | 1SVD982043-00 |
| Declaration of Conformity - UKCA | 1SVD982043-10 |
| DNV Certificate | DNV_TAA0000300 |
| SEMI Certificate | 9AKK108470A0204 |
| External Classifications and Standards | |
| Object Classification Code | T |
| ETIM 9 | EC002540 - DC-power supply |
| ETIM 10 | EC002540 - DC-power supply |
| eClass | V11.0 : 27040701 |
| UNSPSC | 39121004 |
| E-Number (Finland) | 2712888 |
| E-Number (Norway) | 6608902 |
| E-Number (Sweden) | 5213656 |
| Feature Name | Feature Value |
|---|---|
| Voltage type (supply voltage) (EF002991) | AC/DC |
| 1st secondary output voltage (EF006792) | 24 V |
| 2nd secondary output voltage (EF006797) | 0 V |
| 3rd secondary output voltage (EF006800) | 0 V |
| Max. output current 1 (EF008284) | 15 A |
| Max. output current 2 (EF008285) | 0 A |
| Max. output current 3 (EF008286) | 0 A |
| Secondary voltage adjustable (EF007002) | No |
| Nominal value output voltage 1 (EF009393) | 24 V |
| Nominal value output voltage 2 (EF009394) | 0 V |
| Nominal value output voltage 3 (EF009395) | 0 V |
| Nominal value output current 1 (EF009396) | 10 A |
| Nominal value output current 2 (EF009397) | 0 A |
| Nominal value output current 3 (EF009398) | 0 A |
| Short-circuit-proof (EF007332) | Yes |
| Rated supply voltage AC 50 Hz (EF007076) | 264 V |
| Rated supply voltage AC 60 Hz (EF007077) | 264 V |
| Rated supply voltage DC (EF007078) | 277 V |
| Output voltage stabilized (EF003092) | Yes |
| Power consumption (EF000346) | 258 VA |
| Power output (EF003034) | 240 W |
| Stabilized (EF005302) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| Modular version (EF001126) | No |
| Built-in width (EF000846) | 40 mm |
| Built-in height (EF000332) | 129.4 mm |
| Direct mounting possible (EF005689) | No |
| Width (EF000008) | 40 mm |
| Height (EF000040) | 129.4 mm |
| Depth (EF000049) | 127 mm |
| Suitable for safety functions (EF001597) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Degree of protection (IP) (EF005474) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
