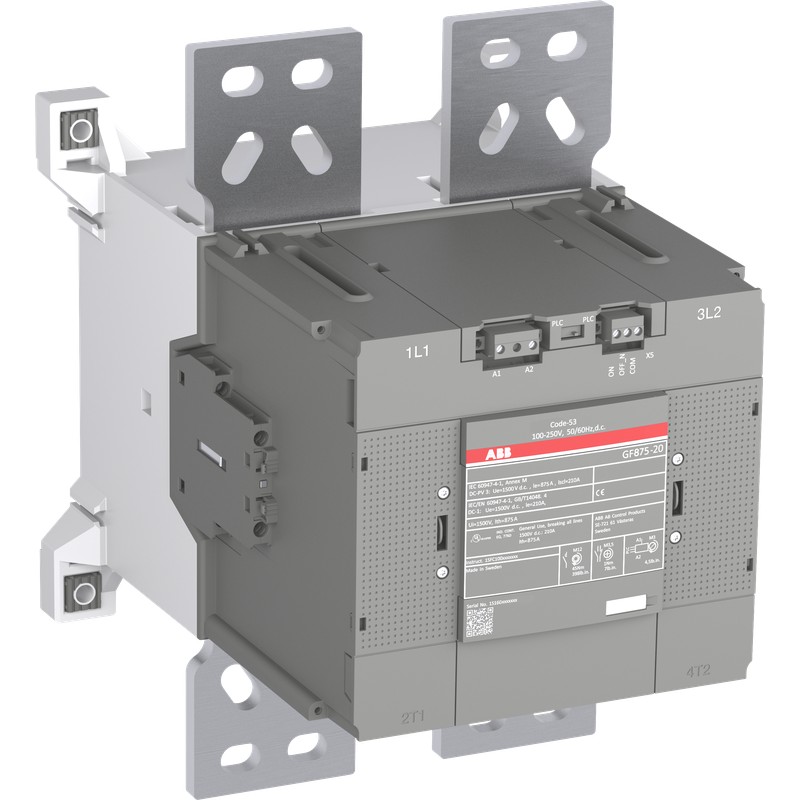

1SFL617731R5322 ABB GF875-20-22-53 Contactor
1SFL617731R5322
ABB
GF875-20-22-53 Contactor
Low-voltage industrial components > Power contactor, DC switching
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536490099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SFC100003M0001 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 253 mm |
| Product Net Depth / Length | 300 mm |
| Product Net Height | 355 mm |
| Product Net Weight | 14.3 kg |
| Technical | |
| Number of Main Contacts NO | 2 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Auxiliary Contacts NC | 2 |
| Number of Poles | 2P |
| Rated Operational Voltage | Main Circuit 1500 V |
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 900 A |
| acc. to IEC 60947-4-1, Open Contactors Θ = 60 °C 875 A | |
| acc. to IEC 60947-4-1, Open Contactors Θ = 70 °C 650 A | |
| Rated Operational Current DC-1 (Ie) | (1500 V DC) 2-Pole, 40 °C 210 A |
| Rated Operational Current DC-PV3 (Ie) | (1500 V DC) 2-Pole, 60 °C 875 A |
| (1500 V DC) 2-Pole, 70 °C 650 A | |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 5184 A |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1139 A | |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 3109 A | |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 6218 A | |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 4150 A | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1500 V |
| acc. to UL/CSA 1500 V | |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Maximum Electrical Switching Frequency | 15 cycles per hour |
| Mechanical Durability | 0.05 million |
| Maximum Mechanical Switching Frequency | 60 cycles per hour |
| Coil Operating Limits | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| Rated Control Circuit Voltage (Uc) | 50 Hz 100...250 V |
| 60 Hz 100...250 V | |
| DC Operation 100...250 V | |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 23 V·A |
| Holding at Max. Rated Control Circuit Voltage 60 Hz 23 V·A | |
| Holding at Max. Rated Control Circuit Voltage DC 12 W | |
| Pull-in at Max. Rated Control Circuit Voltage 50 Hz 600 V·A | |
| Pull-in at Max. Rated Control Circuit Voltage 60 Hz 600 V·A | |
| Pull-in at Max. Rated Control Circuit Voltage DC 505 V·A | |
| Operate Time | Between Coil De-energization and NO Contact Opening 33...70 ms |
| Between Coil Energization and NO Contact Closing 50...120 ms | |
| Connecting Capacity Main Circuit | Solid 600 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm² |
| Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | |
| Flexible 2x0.75 ... 2.5 mm² | |
| Solid 2x1 ... 4 mm² | |
| Stranded 2x1 ... 4 mm² | |
| Connecting Capacity | Solid 600 mm² |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
| acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 | |
| Terminal Type | Main Circuit: Bars |
| Product Name | Block Contactor |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 1500 V |
| Environmental | |
| Ambient Air Temperature | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C |
| Close to Contactor for Storage -40 ... 70 °C | |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| ABS Certificate | 9AKK108466A1583 |
| BV Certificate | 9AKK108466A6837 |
| CB Certificate | 1SFC100041D0101 |
| CQC Certificate | CQC20012271919 |
| Declaration of Conformity - CCC | 2020980304002803 |
| Declaration of Conformity - CE | 1SFC100019D2701 |
| Declaration of Conformity - UKCA | 2CMT2020-006118 |
| DNV Certificate | 9AKK108466A1584 |
| LR Certificate | 9AKK108466A2274 |
| UL Certificate | 1SFC100021D0101 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 402 mm |
| Package Level 1 Depth / Length | 305 mm |
| Package Level 1 Height | 415 mm |
| Package Level 1 Gross Weight | 16.45 kg |
| Package Level 1 EAN | 7320500541241 |
| External Classifications and Standards | |
| ETIM 7 | EC002552 - Power contactor, DC switching |
| ETIM 8 | EC002552 - Power contactor, DC switching |
| ETIM 9 | EC002552 - Power contactor, DC switching |
| eClass | V11.0 : 27371018 |
| UNSPSC | 39121529 |
| E-Number (Norway) | 4115801 |
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage AC 50 Hz (EF003978) | 100 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 100 V |
| Rated control supply voltage DC (EF003980) | 100 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Modular version (EF001126) | No |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| Type of electrical connection of main circuit (EF006819) | Connection rail |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 2 |
