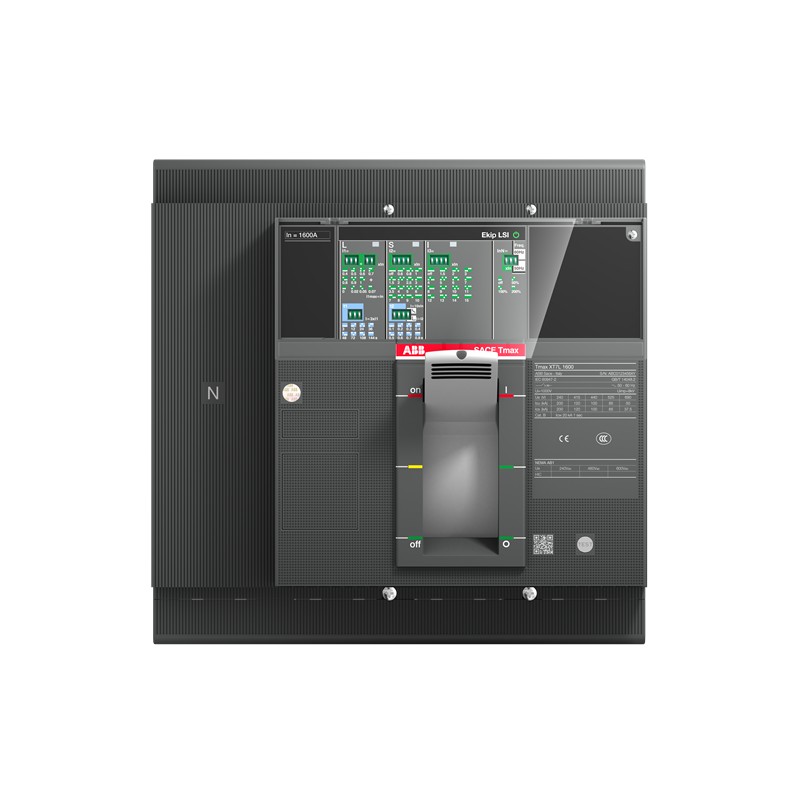

1SDA101235R1 ABB XT7L 1000 Ekip Dip LSIG In 1000A 4p F F
1SDA101235R1
ABB
XT7L 1000 Ekip Dip LSIG In=1000A 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | cd9b03c0-a498-4426-b6f3-9b18289c411c Italy |
| Simplified SCIP | 528ea7bd-ebe4-496a-aa21-5250f013fb6a Hungary |
| 229f3462-2ee6-4f36-b903-b13f9f326ccc Belgium | |
| 0a655671-91bb-4c30-abcb-bf88175dfd54 Estonia | |
| 27a90f80-5133-4fee-a25f-4ed18bb31079 Sweden | |
| e9f15a24-f273-4745-b0e5-4d291ee7bd3c Sweden | |
| 15ebc437-8c23-4583-8110-c55842b72f66 Poland | |
| 733ce1f0-28c1-4667-bbd5-7aa7a6f4b6f3 France | |
| 4f0096f4-ee7a-49dd-b4b4-1a9b0f3c93c1 Hungary | |
| 0a655671-91bb-4c30-abcb-bf88175dfd54 Estonia | |
| cdf5fa2d-c770-47d1-ae9c-25b3fae5456c France | |
| 6b1e957d-0b45-4727-8a4e-daddf21de2c3 Poland | |
| 43cdcb5d-3eb9-4dba-8a46-c29fa099b16d Bulgaria | |
| 2f928a58-549e-452e-aad1-0a978ec5177c Netherlands | |
| 9c55d6ea-0cf9-4488-a155-3de7b5c51f52 Czech Republic | |
| 528ea7bd-ebe4-496a-aa21-5250f013fb6a Hungary | |
| ac2ce2e7-62cf-4bd7-9df2-8f109e5c25f7 Spain | |
| cdf5fa2d-c770-47d1-ae9c-25b3fae5456c France | |
| 29bc1d49-adfc-4658-aa48-ef186d5ba5f8 Germany | |
| c92bce42-2b75-45a4-9056-fa2f4bb7b41f Germany | |
| 2992b52f-7b87-45f4-b381-28b7bba5be37 Norway | |
| 9cf13e41-1ed8-4004-892e-65414e6d28fa Belgium | |
| b8f31556-8cb5-4859-be97-dc75da484494 Germany | |
| 229f3462-2ee6-4f36-b903-b13f9f326ccc Belgium | |
| ac2ce2e7-62cf-4bd7-9df2-8f109e5c25f7 Spain | |
| df50f696-e491-4cb0-b053-af68d06fe35f Denmark | |
| 43cdcb5d-3eb9-4dba-8a46-c29fa099b16d Bulgaria | |
| 4cbc62b0-ff31-46ff-9a3c-b036ba37eef6 Finland | |
| 65380bcb-0993-43a3-a2de-832f80f3d62f Germany | |
| 9cf13e41-1ed8-4004-892e-65414e6d28fa Belgium | |
| 9c55d6ea-0cf9-4488-a155-3de7b5c51f52 Czech Republic | |
| 6edfb2b5-8dfd-4d11-b8a8-7fe900b3837d Germany | |
| 15ebc437-8c23-4583-8110-c55842b72f66 Poland | |
| 27a90f80-5133-4fee-a25f-4ed18bb31079 Sweden | |
| b8f31556-8cb5-4859-be97-dc75da484494 Germany | |
| 4f0096f4-ee7a-49dd-b4b4-1a9b0f3c93c1 Hungary | |
| 29bc1d49-adfc-4658-aa48-ef186d5ba5f8 Germany | |
| 2f928a58-549e-452e-aad1-0a978ec5177c Netherlands | |
| e9f15a24-f273-4745-b0e5-4d291ee7bd3c Sweden | |
| 4cbc62b0-ff31-46ff-9a3c-b036ba37eef6 Finland | |
| c0b52fd3-5ab1-464d-9ac5-2c55bf436111 Croatia | |
| c92bce42-2b75-45a4-9056-fa2f4bb7b41f Germany | |
| 671b61d2-035d-4fc7-a7f8-682f21ec0689 Portugal | |
| c0b52fd3-5ab1-464d-9ac5-2c55bf436111 Croatia | |
| df50f696-e491-4cb0-b053-af68d06fe35f Denmark | |
| b8e72718-a514-4b73-ae88-b379f17e7c84 Poland | |
| 65380bcb-0993-43a3-a2de-832f80f3d62f Germany | |
| 733ce1f0-28c1-4667-bbd5-7aa7a6f4b6f3 France | |
| 2992b52f-7b87-45f4-b381-28b7bba5be37 Norway | |
| 532baf70-f0b6-4818-a6d8-da5ae0784647 Greece | |
| 532baf70-f0b6-4818-a6d8-da5ae0784647 Greece | |
| 671b61d2-035d-4fc7-a7f8-682f21ec0689 Portugal | |
| 6edfb2b5-8dfd-4d11-b8a8-7fe900b3837d Germany | |
| 6b1e957d-0b45-4727-8a4e-daddf21de2c3 Poland | |
| b8e72718-a514-4b73-ae88-b379f17e7c84 Poland | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7LE410DGFF000XXX |
| EAN | 8056221015387 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221015387 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 37 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | Ekip Dip LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1000 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1000 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1000 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1000 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
