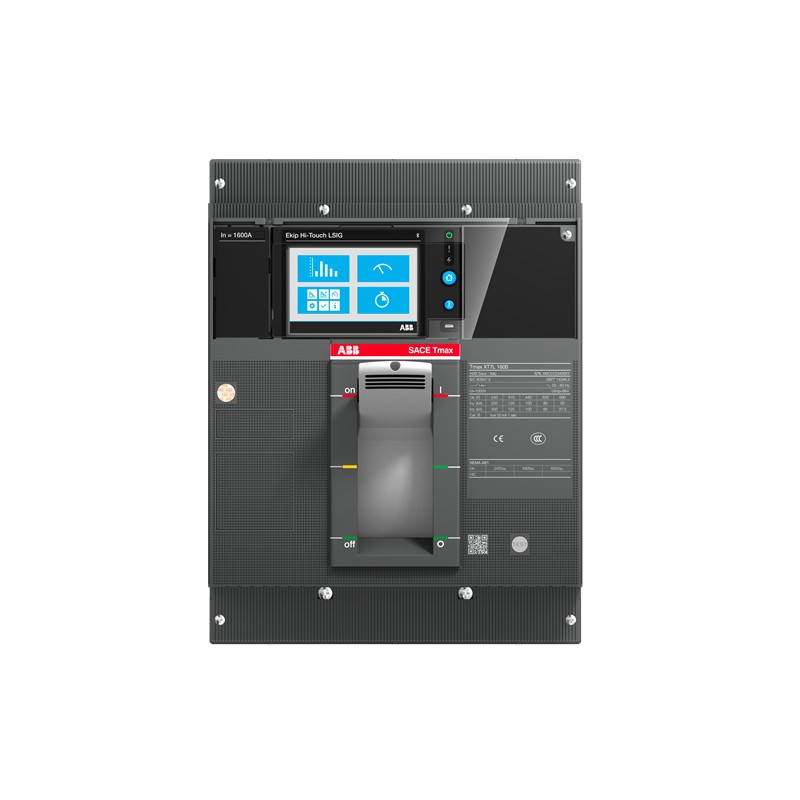

1SDA100857R1 ABB XT7S 1600 Ekip Hi-Touch LSI 1600A 3p FF
1SDA100857R1
ABB
XT7S 1600 Ekip Hi-Touch LSI 1600A 3p FF
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 36c5e6ae-3467-483d-ad75-62369fe23a57 Italy |
| Simplified SCIP | 3b257420-e6a8-40a5-bf09-78a5b13802d5 Germany |
| 3a288b69-81ff-4923-9e31-18e2a8846255 Denmark | |
| 7c160c81-353a-4f86-9230-baaf822cf826 Bulgaria | |
| 18a84c74-d43c-4b13-8b4a-f1a9d1deb065 Belgium | |
| cbc2fbfc-24ae-4107-b4da-0a8a880a8be3 Norway | |
| 78c704d8-94b2-4366-86e0-bf2832bc2e00 Finland | |
| 3d0f2862-1a4a-411b-a6d9-0a4ede96653c Poland | |
| 29f97799-e3c0-4fe0-a226-5264bec993f6 Spain | |
| 81126d00-ee9f-4798-825b-6a9188a15d66 Belgium | |
| 3d0f2862-1a4a-411b-a6d9-0a4ede96653c Poland | |
| 3a288b69-81ff-4923-9e31-18e2a8846255 Denmark | |
| 301e48a6-3dcf-486f-bf93-cf72af4d51da Sweden | |
| 38badb10-f729-4a26-a751-1b24190df510 Germany | |
| d35b9cbb-bd31-430a-8038-0a25d171044b Czech Republic | |
| 4524f8e8-929c-49ca-9c12-4855db306e28 Germany | |
| 78c704d8-94b2-4366-86e0-bf2832bc2e00 Finland | |
| 18a84c74-d43c-4b13-8b4a-f1a9d1deb065 Belgium | |
| 38badb10-f729-4a26-a751-1b24190df510 Germany | |
| db6e108b-6c29-460c-9517-5edadbe71d46 Portugal | |
| fb5f9d4b-1dea-411e-aa62-91ea4d9b718f Poland | |
| acf326b7-e83c-416f-bf2f-c16c87000147 Greece | |
| 4524f8e8-929c-49ca-9c12-4855db306e28 Germany | |
| 786be526-3476-47ce-92bd-6cc6498aa8b2 France | |
| cbc2fbfc-24ae-4107-b4da-0a8a880a8be3 Norway | |
| acf326b7-e83c-416f-bf2f-c16c87000147 Greece | |
| d1cbbf3d-1e00-4434-a6f1-01b2e446d791 Croatia | |
| 21888fdb-db6f-4211-84fd-d8f09ecb7815 Poland | |
| 535debb8-dffd-4515-90e1-b8151be890f3 Netherlands | |
| b6a6d17f-bd30-4b19-9478-dbe0e41253cb Sweden | |
| f63e2525-cc23-405a-a2b2-48d6ca1df171 Germany | |
| db6e108b-6c29-460c-9517-5edadbe71d46 Portugal | |
| a282b9bf-938b-44ba-895d-5476c9f0e4a4 Germany | |
| f63e2525-cc23-405a-a2b2-48d6ca1df171 Germany | |
| a282b9bf-938b-44ba-895d-5476c9f0e4a4 Germany | |
| 8bb068b7-a3d0-4470-bcf1-7c45340edc7e France | |
| a45700fc-3bc2-41f4-8a8d-1b3246d23cce Hungary | |
| 29f97799-e3c0-4fe0-a226-5264bec993f6 Spain | |
| 3b257420-e6a8-40a5-bf09-78a5b13802d5 Germany | |
| 1ac7cc04-b07e-44b1-b952-03b39b8827a4 Estonia | |
| 81126d00-ee9f-4798-825b-6a9188a15d66 Belgium | |
| 301e48a6-3dcf-486f-bf93-cf72af4d51da Sweden | |
| 21888fdb-db6f-4211-84fd-d8f09ecb7815 Poland | |
| 786be526-3476-47ce-92bd-6cc6498aa8b2 France | |
| b6a6d17f-bd30-4b19-9478-dbe0e41253cb Sweden | |
| 8bb068b7-a3d0-4470-bcf1-7c45340edc7e France | |
| ef442475-e359-445f-a518-05cb3ba524b2 Hungary | |
| fb5f9d4b-1dea-411e-aa62-91ea4d9b718f Poland | |
| a45700fc-3bc2-41f4-8a8d-1b3246d23cce Hungary | |
| 535debb8-dffd-4515-90e1-b8151be890f3 Netherlands | |
| 7c160c81-353a-4f86-9230-baaf822cf826 Bulgaria | |
| d1cbbf3d-1e00-4434-a6f1-01b2e446d791 Croatia | |
| d35b9cbb-bd31-430a-8038-0a25d171044b Czech Republic | |
| ef442475-e359-445f-a518-05cb3ba524b2 Hungary | |
| 1ac7cc04-b07e-44b1-b952-03b39b8827a4 Estonia | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7SE316FTFF000XXX |
| E-Number (Norway) | 4380642 |
| EAN | 8056221009119 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 9.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 11.2 kg |
| Package Level 1 EAN | 8056221009119 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1336 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 94 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Release | Ekip Hi-Touch LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1600 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1600 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 16000 A |
| Adjustment range undelayed short-circuit release (EF007131) | 2400.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
