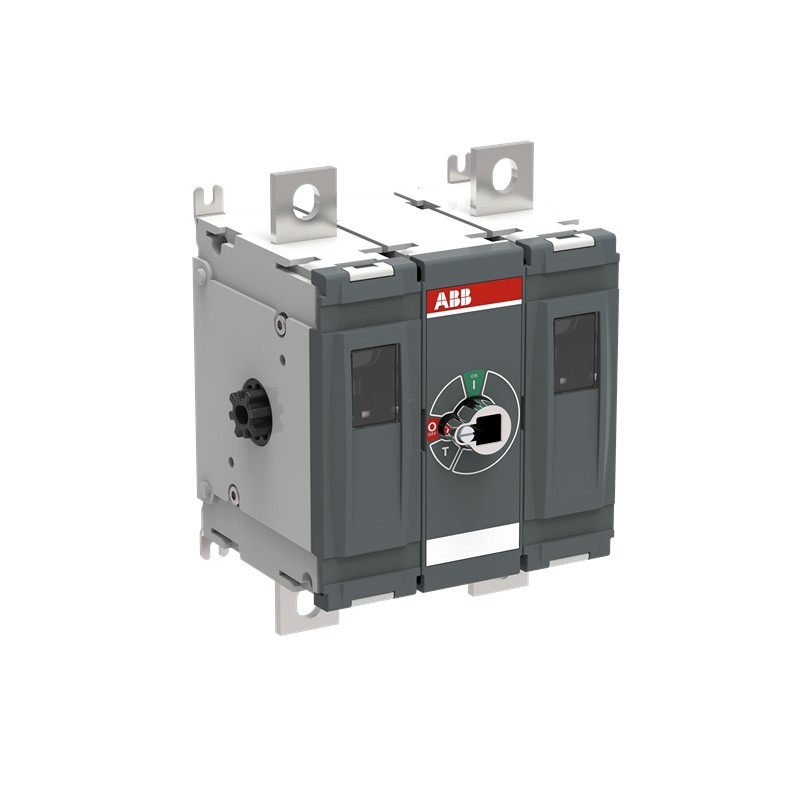

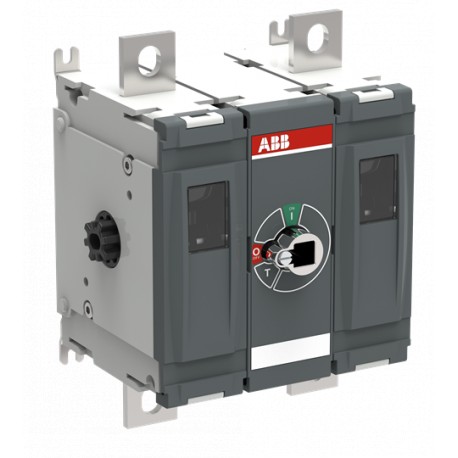

1SCA158858R1001 ABB DC disconnector switch OTDC800FV11K
1SCA158858R1001
ABB
DC disconnector switch OTDC800FV11K
A fully optimized two-pole DC switch-disconnector for 1500V utility-scale photovoltaic power plants covering 315-800A current range. The new design offers both a size reduction and an increase in efficiency and performance to help manufacturers adapt to the industry’s rapid adoption of 1500V DC solutions.The two-pole 1500V DC concept helps manufacturers improve system efficiency, reducing switch losses by up to 35 percent. Measuring just 150mm wide and 122mm high, the OTDC range of 1500V DC switches is also up to 30 percent smaller than conventional solutions. The compact size of the new OTDC range makes it possible for manufacturers to reduce the size of combiner boxes and inverters.Main characteristics for this particular OTDC type:Disconnect single PV circuit, Approved according to IEC 60947-1, -3
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲b'
General Information
OTDC800FV11P
1SCA158858R1001
6417019882147
OTDC800FV11P DC Switch-disconnector
A fully optimized two-pole DC switch-disconnector for 1500V utility-scale photovoltaic power plants covering 315-800A current range. The new design offers both a size reduction and an increase in efficiency and performance to help manufacturers adapt to the industry’s rapid adoption of 1500V DC solutions.The two-pole 1500V DC concept helps manufacturers improve system efficiency, reducing switch losses by up to 35 percent. Measuring just 150mm wide and 122mm high, the OTDC range of 1500V DC switches is also up to 30 percent smaller than conventional solutions. The compact size of the new OTDC range makes it possible for manufacturers to reduce the size of combiner boxes and inverters.Main characteristics for this particular OTDC type:Disconnect single PV circuit, Approved according to IEC 60947-1, -3
Ordering
1 piece
85353010
Finland (FI)
Popular Downloads
Dimensions
M
157.5 mm
6.2 in
211 mm
8.3 in
135 mm
5.3 in
3.9 kg
8.5 lb
Technical
Single circuit 2a, 2b
(1500 V) 800 A
(1500 V) 400 A
(1500 V) 500 A
(1500 V) 500 A
800 A
Fully Enclosed 630 A
12 kV
1500 V
1500 V
(1500 V DC) 10 kA
(1500 V DC) 10 kA
for 1 s 10 kA
at Rated Operating Conditions per Pole 32 W
3
Black
95 mm
3.7 in
Pistol handle
12 mm
0.47 in
185 mm
7.3 in
Mechanism Between the Poles
11 (Between the Poles)
Top In - Bottom Out
Bottom In - Top Out
Front Operated
IEC 60947-1, -3
No
Base mounting
1
2
Front IP20
Lug terminals
30 mm
1.2 in
Cable Lug 30…40 N·m
10000 cycle
Environmental
Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
Container Information
box 1 piece
220 mm
8.7 in
250 mm
9.8 in
210 mm
8.3 in
4.1 kg
9.1 lb
6417019882147
Classifications
Q
EC000216 - Switch disconnector
EC000216 - Switch disconnector
EC000216 - Switch disconnector
5. Small Equipment (No External Dimension More Than 50 cm)
