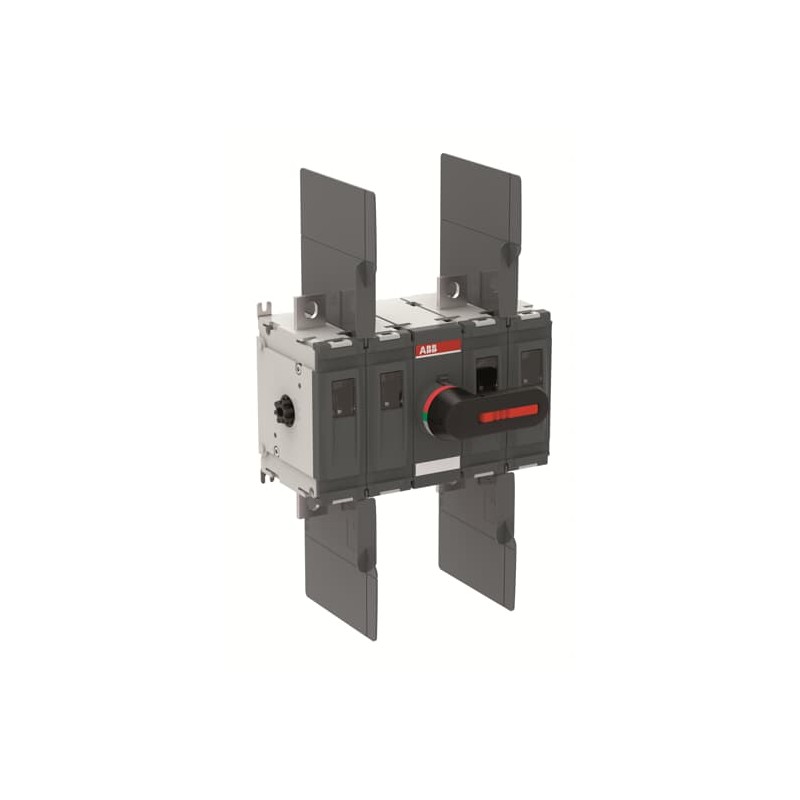

1SCA158322R1001 ABB Disconnector Switch CCOTDC630F22K
1SCA158322R1001
ABB
Disconnector Switch CCOTDC630F22K
A fully optimized four-pole DC switch-disconnector for 1000V utility-scale photovoltaic power plants covering 315-630A current range. The new design offers both a size reduction and an increase in efficiency and performance. The four-pole 1000V DC Switch helps manufacturers improve system efficiency. The compact size of the new OTDC range makes it possible for manufacturers to reduce the size of combiner boxes and inverters.Main characteristics of this particular OTDC type:Disconnect double PV circuit, Approved according to IEC 60947-1, -3
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲b'
General Information
OTDC630F22K
1SCA158322R1001
6417019874272
OTDC630F22K DC Switch-disconnector
A fully optimized four-pole DC switch-disconnector for 1000V utility-scale photovoltaic power plants covering 315-630A current range. The new design offers both a size reduction and an increase in efficiency and performance. The four-pole 1000V DC Switch helps manufacturers improve system efficiency. The compact size of the new OTDC range makes it possible for manufacturers to reduce the size of combiner boxes and inverters.Main characteristics of this particular OTDC type:Disconnect double PV circuit, Approved according to IEC 60947-1, -3
Ordering
1 piece
85363090
Finland (FI)
Popular Downloads
Dimensions
M
255.5 mm
10.1 in
211 mm
8.3 in
169.5 mm
6.7 in
8 kg
17.7 lb
Technical
Double circuit 4a, 4c
(1000 V) 630 A
(1000 V) 400 A
(1000 V) 500 A
(1000 V) 500 A
630 A
Fully Enclosed 630 A
12 kV
1500 V
1000 V
(1000 V DC) 10 kA
(1500 V DC) 10 kA
for 1 s 10 kA
at Rated Operating Conditions per Pole 32 W
3
Black
145 mm
5.7 in
Direct mounted handle
12 mm
0.47 in
160 mm
6.3 in
Mechanism Between the Poles
22 (Between the Poles)
Top In - Bottom Out
Bottom In - Top Out
Front Operated
IEC 60947-1, -3
No
Base mounting
2
4
Front IP20
Lug terminals
30 mm
1.2 in
Cable Lug 30…40 N·m
10000 cycle
Environmental
Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
Container Information
box 1 piece
270 mm
10.6 in
310 mm
12.2 in
200 mm
7.9 in
8.3 kg
18.3 lb
6417019874272
Classifications
Q
EC000216 - Switch disconnector
EC000216 - Switch disconnector
EC000216 - Switch disconnector
5. Small Equipment (No External Dimension More Than 50 cm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
| 1SCA158322R1001 EN_1SCA158322R1001.pdf | 211 Kbytes |
|
