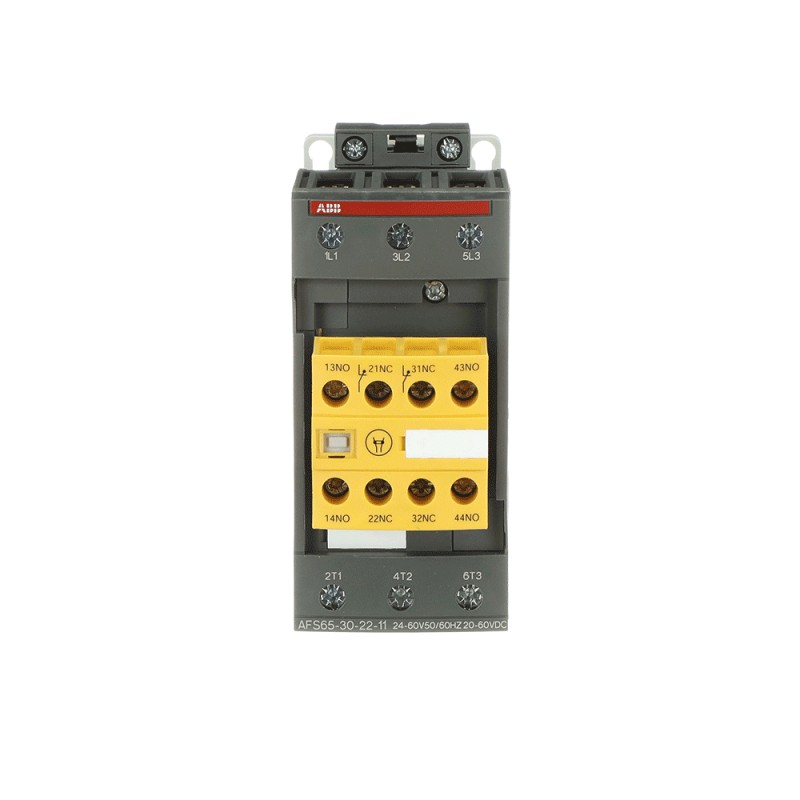

AFS40 ... AFS96 contactors are designed for machine safety applications. They are delivered with fixed front-mounted auxiliary contact blocks making them ideal for monitoring and controlling circuits. Mechanically linked and mirror contacts make your system safer. - control circuit with electronic coil interface: - 24...60 V AC, 20...60 V DC and 100...250 V AC / DC operated accepting a wide control voltage range - reduced panel energy consumption - mirror and mechanically linked contacts, with front marked symbol acc. to IEC60947-5-1, always guaranteeing the right contactor status - front-mounted auxiliary contact block: - permanently fixed - protective cover to prevent manual operation - yellow housing for easy identification - minimum switching capacity 12 V / 3 mA, with a failure rate 10-7 acc. to IEC 60947-5-4 - built-in surge suppression
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85364900
Dimensions
- Product Net Width:
- 55mm
- Product Net Depth:
- 144mm
- Product Net Height:
- 125.5mm
- Product Net Weight:
- 1.16kg
Technical
- Number of Main Contacts NO:
- 3
- Number of Main Contacts NC:
- 0
- Number of Auxiliary Contacts NO:
- 2
- Number of Auxiliary Contacts NC:
- 2
- Rated Operational Voltage:
- Auxiliary Circuit 690 V
Main Circuit 690 V
- Rated Frequency (f):
- Auxiliary Circuit 50 / 60 Hz
Main Circuit 50 / 60 Hz
- Conventional Free-air Thermal Current (Ith):
- acc. to IEC 60947-4-1, Open Contactors q = 40 °C 105 A
acc. to IEC 60947-5-1, q = 40 °C 16 A
- Rated Operational Current AC-1 (Ie):
- (690 V) 40 °C 105 A
(690 V) 60 °C 90 A
(690 V) 70 °C 80 A
- Rated Operational Current AC-3 (Ie):
- (220 / 230 / 240 V) 60 °C 65 A
(380 / 400 V) 60 °C 65 A
(415 V) 60 °C 65 A
(440 V) 60 °C 65 A
(500 V) 60 °C 55 A
(690 V) 60 °C 39 A
- Rated Operational Power AC-3 (Pe):
- (220 / 230 / 240 V) 18.5 kW
(380 / 400 V) 30 kW
(400 V) 30 kW
(415 V) 37 kW
(440 V) 37 kW
(500 V) 37 kW
(690 V) 37 kW
- Rated Operational Current AC-15 (Ie):
- (220 / 240 V) 4 A
(24 / 127 V) 6 A
(400 / 440 V) 3 A
(500 V) 2 A
(690 V) 2 A
- Rated Short-time Withstand Current (Icw):
- at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 600 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 110 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 350 A
for 0.1 s 140 A
for 1 s 100 A
- Maximum Breaking Capacity:
- cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 950 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 600 A
- Maximum Electrical Switching Frequency:
- AC-1 600 cycles per hour
AC-15 1200 cycles per hour
AC-2 / AC-4 150 cycles per hour
AC-3 1200 cycles per hour
DC-13 900 cycles per hour
- Rated Operational Current DC-13 (Ie):
- (110 V) 0.55 A / 60 A
(125 V) 0.55 A / 69 A
(220 V) 0.27 A / 60 A
(24 V) 6 A / 144 A
(250 V) 0.27 A / 68 A
(400 V) 0.15 A / 60 A
(48 V) 2.8 A / 134 A
(500 V) 0.13 A / 65 A
(600 V) 0.1 A / 60 A
(72 V) 1 A / 72 A
- Rated Insulation Voltage (Ui):
- acc. to UL/CSA 600 V
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
- Rated Impulse Withstand Voltage (Uimp):
- 6 kV
- Maximum Mechanical Switching Frequency:
- 3600 cycles per hour
- Rated Control Circuit Voltage (Uc):
- 50 Hz 24 ... 60 V
60 Hz 24 ... 60 V
DC Operation 20 ... 60 V
- Operate Time:
- Between Coil De-energization and NC Contact Closing 19 ... 105 ms
Between Coil De-energization and NO Contact Opening 17 ... 100 ms
Between Coil Energization and NC Contact Opening 38 ... 95 ms
Between Coil Energization and NO Contact Closing 42 ... 100 ms
- Connecting Capacity Main Circuit:
- Flexible with Insulated Ferrule 1/2x 4 ... 35 mm²
Flexible with Ferrule 1/2x 4 ... 35 mm²
Rigid 1/2x 6 ... 3 5 mm²
- Connecting Capacity Auxiliary Circuit:
- Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Rigid 1/2x 1 ... 2.5 mm²
- Connecting Capacity Control Circuit:
- Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Rigid 1/2x 1 ... 2.5 mm²
- Wire Stripping Length:
- Main Circuit 16 mm
- Degree of Protection:
- acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
- Terminal Type:
- Screw Terminals
Environmental
- Ambient Air Temperature:
- Close to Contactor for Storage -60 ... +80 °C
Close to Contactor Fitted with Thermal O/L Relay -25 ... +60 °C
Close to Contactor without Thermal O/L Relay -40 ... +70 °C
- Climatic Withstand:
- Category B according to IEC 60947-1 Annex Q
- Maximum Operating Altitude Permissible:
- 3000 m
- Resistance to Vibrations acc. to IEC 60068-2-6:
- 5 ... 300 Hz 3 g closed position / 3 g open position
- Resistance to Shock acc. to IEC 60068-2-27:
- Closed, Shock Direction: A 25 g
Closed, Shock Direction: B1 25 g
Closed, Shock Direction: B2 15 g
Closed, Shock Direction: C1 25 g
Closed, Shock Direction: C2 25 g
Technical UL/CSA
- General Use Rating UL/CSA:
- (600 V AC) 90 A
- Horsepower Rating UL/CSA:
- (120 V AC) Single Phase 5 Hp
(240 V AC) Single Phase 15 Hp
(200 ... 208 V AC) Three Phase 20 Hp
(220 ... 240 V AC) Three Phase 25 Hp
(440 ... 480 V AC) Three Phase 50 Hp
(550 ... 600 V AC) Three Phase 60 Hp
- Tightening Torque UL/CSA:
- Auxiliary Circuit 11 in·lb
Control Circuit 11 in·lb
Main Circuit 35 in·lb
Certificates and Declarations (Document Number)
- CB Certificate:
- CB_SE_77418M1
- cUL Certificate:
- UL_20170607-E312527-14-1
- Declaration of Conformity - CE:
- 1SBD250022U1000
- Instructions and Manuals:
- 1SBC101052M6801
- UL Listing Card:
- E312527
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 167 mm
- Package Level 1 Length:
- 180 mm
- Package Level 1 Height:
- 97 mm
- Package Level 1 Gross Weight:
- 1.16 kg
- Package Level 1 EAN:
- 3471523157811
- Package Level 2 Units:
- 6 piece
- Package Level 2 Width:
- 250 mm
- Package Level 2 Length:
- 300 mm
- Package Level 2 Height:
- 300 mm
- Package Level 3 Units:
- 144 piece
Classifications
- Object Classification Code:
- Q
- ETIM 4:
- EC000066 - Magnet contactor, AC-switching
- ETIM 5:
- EC000066 - Magnet contactor, AC-switching
- ETIM 6:
- EC000066 - Power contactor, AC switching
