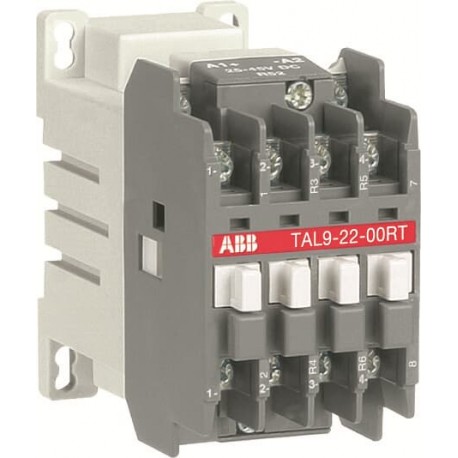

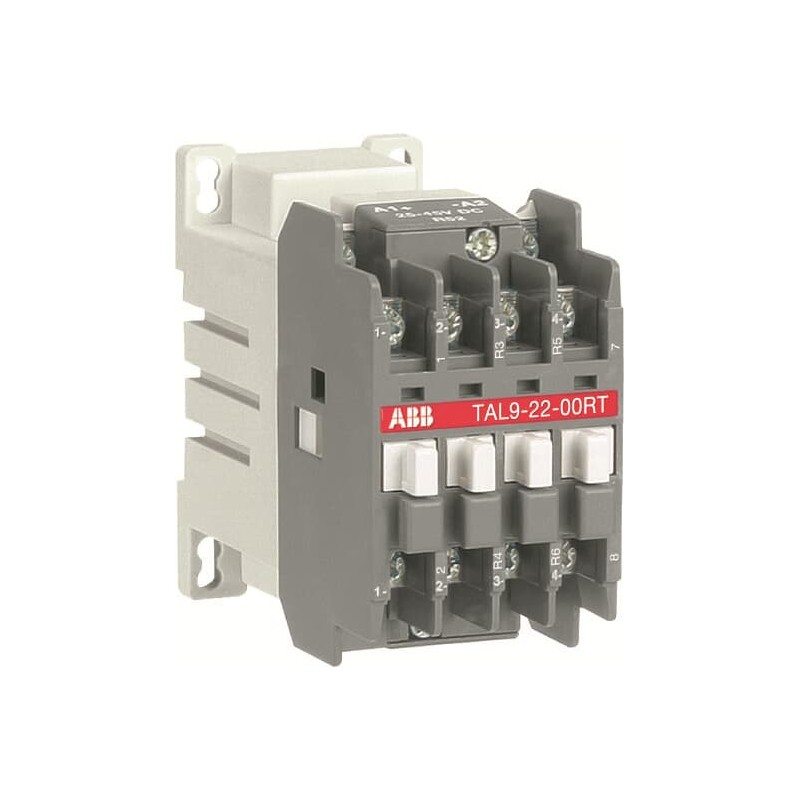

1SBL143560R5100 ABB The TAL9-22-00RT 17-32V DC is a contactor mainly used for controlling non-inductive or s..
1SBL143560R5100
ABB
The TAL9-22-00RT 17-32V DC is a contactor mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...) and generally for controlling power circuits up to 690 V AC and 440 V DC. The contactors can also be used for many other applications such lighting... The TAL..RT contactors are the Ring Tongue terminal version of the TAL... range. The TAL... series 4-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 2 N.O. + 2 N.C. main poles, front and side-mounted add-on auxiliary contact blocks - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected
TAL9-22-00RT 17-32V DC Contactor
Service Breakers
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SNC001003C0202 |
| Instructions and Manuals | 1SBC101006M5501 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Depth / Length | 97 mm |
| Product Net Height | 78 mm |
| Product Net Weight | 0.52 kg |
| Dimension Diagram | FPTE307902 |
| Technical | |
| Number of Main Contacts NO | 2 |
| Number of Main Contacts NC | 2 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 4P |
| Rated Operational Voltage | Main Circuit 690 V |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 26 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 25 A |
| (690 V) 55 °C 22 A | |
| (690 V) 70 °C 18 A | |
| Short-Circuit Protective Devices | gG Type Fuses 25 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 100 A |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 26 A | |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 50 A | |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 250 A | |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 60 A | |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A |
| cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 100 A | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 690 V |
| acc. to UL/CSA 600 V | |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Maximum Electrical Switching Frequency | (AC-1) 600 cycles per hour |
| Mechanical Durability | 10 million |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Rated Control Circuit Voltage (Uc) | DC Operation 17 ... 32 V |
| Coil Consumption | Holding DC (Umin / Umax) 2.5 W |
| Holding DC (Umin / Umax) 2.5 / 8.5 W | |
| Pull-in DC (Umin / Umax) 2.5 / 8.5 W | |
| Power Loss | at Rated Operating Conditions per Pole 0.8 W |
| at Rated Operating Conditions AC-1 per Pole 0.8 W | |
| at Rated Operating Conditions AC-3 per Pole 0.1 W | |
| Operate Time | Between Coil De-energization and NC Contact Closing 16 ... 27 ms |
| Between Coil De-energization and NO Contact Opening 10 ... 17 ms | |
| Between Coil Energization and NC Contact Opening 20 ... 70 ms | |
| Between Coil Energization and NO Contact Closing 50 ... 100 ms | |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Mounting by Screws (not supplied) | 2 x M4 Screws Placed Diagonally |
| Connecting Capacity Main Circuit | Flexible with Cable Lug 0.75 ... 2.5 mm² |
| Rigid Cable 0.75 ... 2.5 mm² | |
| Connecting Capacity Auxiliary Circuit | Rigid or Flexible with Cable Lug 0.75 ... 2.5 mm² |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP10 |
| acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 | |
| Connecting Terminals (delivered in open position) Main Poles | M 3.5 (+,-) pozidriv 2 screw with conic washer |
| Terminal Type | Ring-Tongue Terminals |
| Product Name | Block Contactor |
| Technical UL/CSA | |
| General Use Rating UL/CSA | (600 V AC) 21 A |
| Environmental | |
| Ambient Air Temperature | Close to Contactor without Thermal O/L Relay (Ucmin-Ucmax) according to IEC 60077 -40 ... +70 °C |
| Close to Contactor for Storage -60 ... +80 °C | |
| Near Contactor for Operation in Free Air -40 ... 55 °C | |
| Climatic Withstand | according to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 Specification II |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | Closed, Shock Direction: A 20 g |
| Closed, Shock Direction: B1 15 g | |
| Closed, Shock Direction: C1 20 g | |
| Closed, Shock Direction: C2 14 g | |
| Open, Shock Direction: A 10 g | |
| Open, Shock Direction: B1 5 g | |
| Open, Shock Direction: C1 8 g | |
| Open, Shock Direction: C2 8 g | |
| Shock Direction: B2 10 g | |
| Pollution Degree | 3 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | CQC2012010304534830 |
| CSA Certificate | CSA_1041746 |
| Declaration of Conformity - CCC | 2020980304001613 |
| Declaration of Conformity - CE | 1SBD250804U1000 |
| Declaration of Conformity - UKCA | 1SBD250821U1000 |
| EAC Certificate | EAC_RU C-FR ME77 B01010 |
| GOST Certificate | GOST_POCCFRME77B07175 |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 86 mm |
| Package Level 1 Depth / Length | 141 mm |
| Package Level 1 Height | 51 mm |
| Package Level 1 Gross Weight | 0.52 kg |
| Package Level 1 EAN | 3471522362414 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 |
| UNSPSC | 39121529 |
