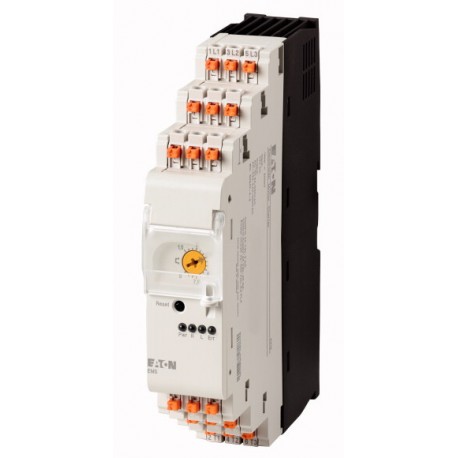

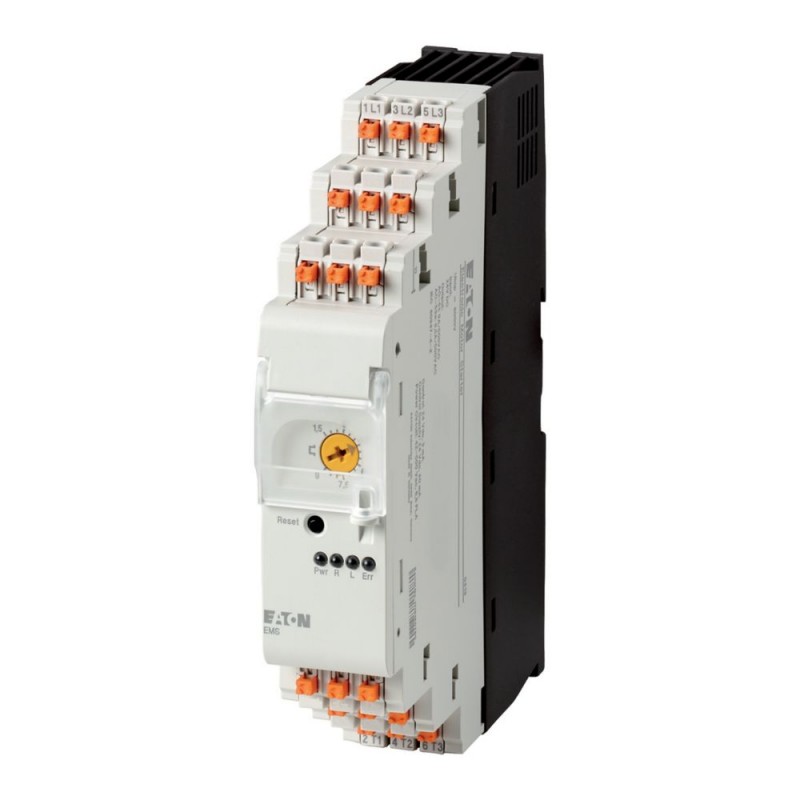

EMS-DO-T-2,4-24VDC 170099 EMS-DO-T-2P4-24VDC EATON ELECTRIC Direktstarter 2,4 A, DC-betätigt
EMS-DO-T-2,4-24VDC
170099
EMS-DO-T-2P4-24VDC
EATON-MOELLER
Direktstarter 2,4 A, DC-betätigt
Elektronischer Starter; Direktstart; 2,4 A
Direktstarter, 24 V DC, 0,18 - 2,4 A, Push-in-Klemmen, PTB 13 ATEX 3003
DOL-Starter, Betätigungsspannung: 24 V DC, Normen: IEC/EN 60947-4-2, UL508
Niederspannungsschaltgeräte > Motorstarter/Motorstarterkombination
Standard-Sanftstarter
Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER
Bestseller
▲Mehr Infos
▲Allgemeine Spezifikation
Product Name
Eaton Moeller® series EMS DOL starter
Catalog Number
170099
Product Length/Depth
160 mm
Product Height
60 mm
Product Width
155 mm
Product Weight
0.3 kg
Certifications
IEC/EN 61000-4-3
Certified by UL for use in Canada
UL File No.: E29096
PTB 13 ATEX 3003
IEC/EN 60947-4-2
IEC/EN 60947-5
UL Category Control No.: NLDX, NLDX7
UL 508
CSA-C22.2 No. 14
CE
UL508
UL report applies to both US and Canada
IEC/EN 61000-4-2, Level 3
UL
Certified by UL for use in Canada
UL File No.: E29096
PTB 13 ATEX 3003
IEC/EN 60947-4-2
IEC/EN 60947-5
UL Category Control No.: NLDX, NLDX7
UL 508
CSA-C22.2 No. 14
CE
UL508
UL report applies to both US and Canada
IEC/EN 61000-4-2, Level 3
UL
EAN
4015081665969
Model Code
EMS-DO-T-2,4-24VDC
Features & Functions
Functions
External reset possible
DOL starting
Motor protection
Temperature compensated overload protection
DOL starting
Motor protection
Temperature compensated overload protection
General
Balance monitoring
If ≥ 33 %, pick-up time of 120 s, Magnitude Imax > Irated ((Imax - Imin)/Imax)
If ≥ 33 %, pick-up time of 120 s, Magnitude Imax < Irated ((Imax - Imin)/Imax)
If ≥ 67 %, pick-up time of 1.8 s, Magnitude Imax < Irated ((Imax - Imin)/Imax)
If ≥ 67 %, pick-up time of 1.8 s, Magnitude Imax > Irated ((Imax - Imin)/Imax)
If ≥ 33 %, pick-up time of 120 s, Magnitude Imax < Irated ((Imax - Imin)/Imax)
If ≥ 67 %, pick-up time of 1.8 s, Magnitude Imax < Irated ((Imax - Imin)/Imax)
If ≥ 67 %, pick-up time of 1.8 s, Magnitude Imax > Irated ((Imax - Imin)/Imax)
Class
CLASS 10
Connection to SmartWire-DT
No
Degree of protection
IP20
IP20 (according to IEC/EN 60529, EN 50178, VBG 4)
IP20 (according to IEC/EN 60529, EN 50178, VBG 4)
Lifespan, electrical
30,000,000 Operations
Model
Direct starter
Mounting method
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Rail mounting possible
Rail mounting possible
Mounting position
Vertical
Motor feeder at bottom
Motor feeder at bottom
Operating frequency
7200 Operations/h (pulse pause time 50:50)
Overload release current setting - min
0.18 A
Overload release current setting - max
2.4 A
Overvoltage category
III
Pollution degree
2
Product category
Electronic motor starter
Rated impulse withstand voltage (Uimp)
6000 V AC
Recovery time
20 min (automatic restart)
2 min (manual startup)
2 min (manual startup)
Residual ripple
≤ 5 % (input voltage)
Terminal capacity
2 x (0.75 - 2.5) mm², flexible with ferrule
1 x (0.75 - 2.5) mm², solid
2 x (0.75 - 1.5) mm², flexible, with twin ferrule
Minimum length 10 mm.
1 x (0.75 - 2.5) mm², solid
2 x (0.75 - 1.5) mm², flexible, with twin ferrule
Minimum length 10 mm.
Terminal capacity (AWG)
1 x (20 - 14), flexible with ferrule
2 x (20 - 16), flexible with twin ferrule
1 x (20 - 14), solid
2 x (20 - 16), flexible with twin ferrule
1 x (20 - 14), solid
Type
DOL starter (complete device)
Voltage type
DC
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
80 °C
Environmental conditions
Condensation: prevent with appropriate measures
Designed for operation in industrial environments. The use in residential environments could cause electrical interference so that addition suppression must be planned.
Designed for operation in industrial environments. The use in residential environments could cause electrical interference so that addition suppression must be planned.
Electro magnetic compatibility
Air discharge
8 kV
Burst impulse
2 kV
According to IEC/EN 61000-4-4, level 3
According to IEC/EN 61000-4-4, level 3
Contact discharge
6 kV
Electromagnetic fields
3 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3)
10 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
10 V/m at 800 - 1000 MHz (according to IEC EN 61000-4-3)
10 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
10 V/m at 800 - 1000 MHz (according to IEC EN 61000-4-3)
Immunity to line-conducted interference
10 V (according to IEC/EN 61000-4-6)
Radio interference class
Class A (EN 55011, emitted interference, line-conducted)
Class A (EN 61000-6-3, emitted interference, radiated)
Class A (EN 61000-6-3, emitted interference, radiated)
Surge rating
1 kV, symmetrical, power pulses (Surge), EMC
2 kV, asymmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5, power pulses (Surge), EMC
2 kV, asymmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5, power pulses (Surge), EMC
Electrical rating
Basic insulation
500 V AC, between supply voltage, control voltage and switch voltage according to IEC/EN60947-1
500 V AC, between feedback signal output and switch voltage according to IEC/EN60947-1
500 V AC, between feedback signal output and switch voltage according to IEC/EN60947-1
Input current
40 mA (without feedback signal)
5 mA (Actuating circuit - ON, L, R)
5 mA (Actuating circuit - ON, L, R)
Rated conditional short-circuit current (Iq), type 2, 380 V, 400 V, 415 V
0 A
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
24 V
Rated control supply voltage (Us) at DC - max
24 V
Rated operational current (Ie)
2.4 A
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
3 A
Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V
2.4 A
Rated operational current (Ie) at AC-51
2.4 A
Rated operational current (Ie) at AC-53A - max
2.4 A
Rated operational current (Ie) at AC-53A - min
0.15 A
Rated operational current (Ie) at DC-13, 24 V
2 A
Rated operational power at AC-3, 220/230 V, 50 Hz
0.37 kW
Rated operational power at AC-3, 380/400 V, 50 Hz
0.75 kW
Rated operational power at AC-53A, 380/400 V, 50 Hz
0.75 kW
Rated operational voltage
250 V AC/DC
42 - 550 V
42 - 550 V
Short-circuit protection rating
50 kA, 500 V AC: Fuse 16 A gG/gL, Short-circuit protective device, Type “1” coordination, Main conducting paths
50 kA, 415 V AC: PKM0-4, Short-circuit protective device, Type “1” coordination, Main conducting paths
15 kA, 415 V AC: PKM0-6,3, Short-circuit protective device, Type “1” coordination, Main conducting paths
50 kA, 415 V AC: PKM0-4, Short-circuit protective device, Type “1” coordination, Main conducting paths
15 kA, 415 V AC: PKM0-6,3, Short-circuit protective device, Type “1” coordination, Main conducting paths
Supply voltage
A1 - A2: 24 V DC (-20 - +25 %), UAUX, Control section, Input data
Switching level
-3 - 9.6 V DC, Switching level "Low", Actuating circuit (ON, L, R)
< 5 V DC, Switching level "confirm Off", Actuating circuit (ON, L, R)
19.2 - 30 V DC, Switching level "High", Actuating circuit (ON, L, R)
< 5 V DC, Switching level "confirm Off", Actuating circuit (ON, L, R)
19.2 - 30 V DC, Switching level "High", Actuating circuit (ON, L, R)
Contacts
Number of auxiliary contacts (normally closed contacts)
1
Number of auxiliary contacts (normally open contacts)
1
Number of contacts (change-over contacts)
1
Safety
Explosion safety category for dust
ATEX dust-ex-protection, II (2) G [Ex e] [Ex d] [Ex px]
ATEX dust-ex-protection, II (2) D [Ex t] [Ex p]
ATEX dust-ex-protection, II (2) D [Ex t] [Ex p]
Safe isolation
500 V AC; Between supply, control, and switching voltages; According to EN50178
300 V AC, Between feedback signal output and switch voltage, According to EN 50178
300 V AC; Between supply, control, and switching voltages; According to EN50178
500 V AC, Between feedback signal output and switch voltage, According to EN 50178
300 V AC, Between feedback signal output and switch voltage, According to EN 50178
300 V AC; Between supply, control, and switching voltages; According to EN50178
500 V AC, Between feedback signal output and switch voltage, According to EN 50178
Safety parameter (EN ISO 13849-1)
316 years; MTTFD
Safety parameter (IEC 62061)
Λsu [FIT]: 1550
SIL: 2
Λdd [FIT]: 314
97.9 %, SFF
Λsd [FIT]: 0
Λdu [FIT]: 47.2
86,9 %, DC
SIL: 2
Λdd [FIT]: 314
97.9 %, SFF
Λsd [FIT]: 0
Λdu [FIT]: 47.2
86,9 %, DC
Design verification
Equipment heat dissipation, current-dependent Pvid
2 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.7 W
Rated operational current for specified heat dissipation (In)
2.4 A
Static heat dissipation, non-current-dependent Pvs
1 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Merkmal | Wert |
|---|---|
| Art des Motorstarters (EF009598) | Direktstarter (DOL) |
| Mit Kurzschlussauslöser (EF006691) | Nein |
| Bemessungssteuerspeisespannung AC 50 Hz (EF003978) | 0 V |
| Bemessungssteuerspeisespannung AC 60 Hz (EF003979) | 0 V |
| Bemessungssteuerspeisespannung DC (EF003980) | 24 V |
| Spannungsart zur Betätigung (EF008242) | DC |
| Bemessungsbetriebsleistung bei AC-3, 230 V, 3-phasig (EF009599) | 0.37 kW |
| Bemessungsbetriebsleistung bei AC-3, 400 V (EF001364) | 0.75 kW |
| Bemessungsleistung, 460 V, 60 Hz, 3-phasig (EF009600) | 0.736 kW |
| Bemessungsleistung, 575 V, 60 Hz, 3-phasig (EF009601) | 0 kW |
| Bemessungsbetriebsstrom Ie (EF001443) | 2.4 A |
| Bemessungsbetriebsstrom bei AC-3, 400 V (EF009602) | 2.4 A |
| Überlastauslöser Stromeinstellung (EF002336) | 0.18 A |
| Bedingter Bemessungskurzschlussstrom, Zuordnungsart 1, 480 Y/277 V (EF009607) | 0 A |
| Bedingter Bemessungskurzschlussstrom, Zuordnungsart 1, 600 Y/347 V (EF009608) | 0 A |
| Bedingter Bemessungskurzschlussstrom, Zuordnungsart 2, 230 V (EF009606) | 0 A |
| Bedingter Bemessungskurzschlussstrom, Zuordnungsart 2, 400 V (EF009605) | 0 A |
| Anzahl der Hilfskontakte als Schließer (EF001376) | 1 |
| Anzahl der Hilfskontakte als Öffner (EF001377) | 1 |
| Umgebungstemperatur, Obergrenze ohne Einschränkungen (EF009603) | 60 °C |
| Temperaturkompensierter Überlastschutz (EF009604) | Ja |
| Auslöseklasse (EF006668) | CLASS 10 |
| Anschlussart Hauptstromkreis (EF006819) | Federzuganschluss |
| Ausführung elektrischer Anschluss für Hilfs- und Steuerstromkreis (EF006979) | Federzuganschluss |
| Tragschienenmontage möglich (EF003972) | Ja |
| Mit Trafo (EF000278) | Nein |
| Anzahl der Befehlsstellen (EF001372) | 0 |
| Geeignet für NOT-AUS (EF001433) | Nein |
| Zuordnungsart nach IEC 60947-4-3 (EF012390) | Klasse 1 |
| Anzahl der Leuchtmelder (EF001965) | 4 |
| Externer Reset möglich (EF003426) | Ja |
| Mit Sicherung (EF006693) | Nein |
| Schutzart (IP) (EF005474) | IP20 |
| Unterstützt Protokoll für TCP/IP (EF003050) | Nein |
| Unterstützt Protokoll für PROFIBUS (EF003052) | Nein |
| Unterstützt Protokoll für CAN (EF003053) | Nein |
| Unterstützt Protokoll für INTERBUS (EF003054) | Nein |
| Unterstützt Protokoll für ASI (EF003051) | Nein |
| Unterstützt Protokoll für Modbus (EF003057) | Nein |
| Unterstützt Protokoll für Data-Highway (EF003058) | Nein |
| Unterstützt Protokoll für DeviceNet (EF003059) | Nein |
| Unterstützt Protokoll für SUCONET (EF003060) | Nein |
| Unterstützt Protokoll für LON (EF003017) | Nein |
| Unterstützt Protokoll für PROFINET IO (EF007525) | Nein |
| Unterstützt Protokoll für PROFINET CBA (EF007524) | Nein |
| Unterstützt Protokoll für SERCOS (EF006657) | Nein |
| Unterstützt Protokoll für Foundation Fieldbus (EF007522) | Nein |
| Unterstützt Protokoll für EtherNet/IP (EF007521) | Nein |
| Unterstützt Protokoll für AS-Interface Safety at Work (EF007519) | Nein |
| Unterstützt Protokoll für DeviceNet Safety (EF007520) | Nein |
| Unterstützt Protokoll für INTERBUS-Safety (EF006662) | Nein |
| Unterstützt Protokoll für PROFIsafe (EF007526) | Nein |
| Unterstützt Protokoll für SafetyBUS p (EF007527) | Nein |
| Unterstützt Protokoll für sonstige Bussysteme (EF003062) | Nein |
| Breite (EF000008) | 155 mm |
| Höhe (EF000040) | 60 mm |
| Tiefe (EF000049) | 160 mm |
Datasheet - PDF
▲| Titel: | Größe: | Typ: |
|---|---|---|
| PDF EATON EMS EN.pdf | 1 Mbytes |
|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EMS-DO-T-2,4-24VDC EMS-DO-T-2P4-24VDC 170099 DE_170099.pdf | 2 Mbytes |
|
Bewertungen (0) ▲
Es gibt keine Produktbewertungenvor.
Bewertung abgeben
Formular verstecken
| Wertung: |
|
| Name: | |
| E-Mail : | |
| Betreff: | |
| Text: | |
| Haben Sie dieses Produkt empfehlen zu kaufen? | |
|
|
|
| Bewertung abgeben | |
Alle Bewertungen wir von den Einzelteilen erhalten wir anbieten, sind real und verifiziert. Eine kleine Geste, aber sehr wertvoll. Also danke für die Minute, die Sie in, dass Sie uns Ihre Meinung und Bewertung von Produkten ausgeben, weil es mir hilft, weiter zu verbessern und noch mehr Servicequalität zu bieten.
