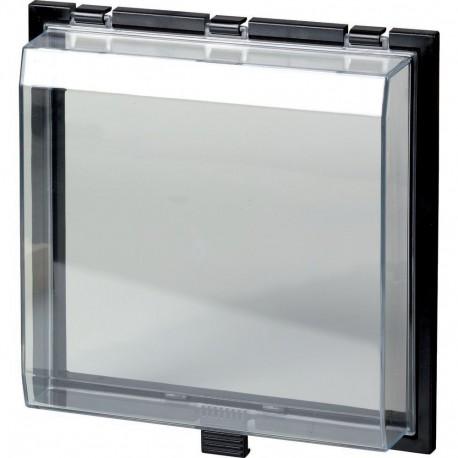

RTR-NZM10 034825 EATON MOELLER moldura da porta NZM com motor Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

RTR-NZM10 034825 EATON MOELLER moldura da porta NZM com motor

RTR-NZM10

034825

EATON - MOELLER

Disponível

Envio hoje

moldura da porta NZM com motor

Mais detalhes


Disjuntores

Circuit-breakers NZM and LZM (Accessories) - EATON - MOELLER

Insulating surround, IP40 - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$80.17
2+$77.89
4+$76.05
5+$75.53
7+$74.86
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Accessories
Accessories
  Protective cover
Standard/Approval
  UL/CSA, IEC
Construction size
  NZM3
Description


IP54 degree of protection if remote operator is routed through

Number of poles
  3/4 pole
For use with
  NZM2-XR
NZM2-XRD
NZM3-XR
NZM4-XR
Project planning information
  Electrical remote switching and manual tripping (push to trip) are still possible.
Design verification as per IEC/EN 61439(Show features)(Hide features)
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
Distribution boards (EG000023) / Cover for distribution board (EC000775)
Electric engineering, automation, process control engineering / Electrical installation, device / Electrical distribution system (incl. small distribution board) / Cover for distribution board ([email protected] [ACN397008])
Height
 mm268
Width
 mm262.5
Depth
 mm62.5
Material
  Plastic
Hinging
  Yes
Quick locking
  Yes
With transparent cover
  Yes
Degree of protection (IP)
  IP54
Dimensions
>

Datasheet - PDF
