> SIEMENS>AUTOMAÇÃO>SIMATIC S7-1500: E / S>6ES7532-5HF00-0AB0 SIEMENS SIMATIC S7-1500, analog output module AQ8xU/I HS, 16-bit resolution accuracy 0.3%..
ANUNCIAR
Produto anterior Próximo produto

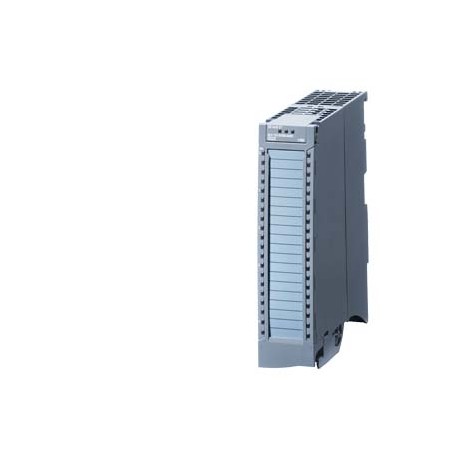

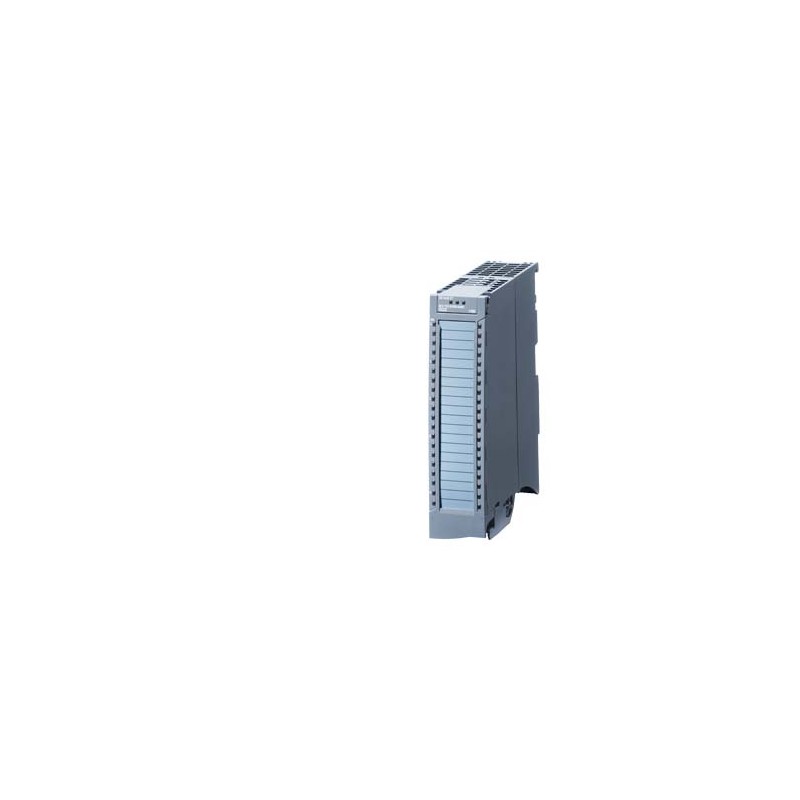

6ES7532-5HF00-0AB0 SIEMENS SIMATIC S7-1500, analog output module AQ8xU/I HS, 16-bit resolution accuracy 0.3%.. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

6ES7532-5HF00-0AB0 SIEMENS SIMATIC S7-1500, analog output module AQ8xU/I HS, 16-bit resolution accuracy 0.3%..

6ES7532-5HF00-0AB0

SIEMENS

SIMATIC S7-1500, analog output module AQ8xU/I HS, 16-bit resolution accuracy 0.3%, 8 channels in groups of 8, diagnostics; substitute value 8 channels in 0.125 ms oversampling; the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015. delivery including infeed element, shielding bracket and shield terminal: front connector (screw terminals or push-in) to be ordered separately

SIMATIC S7-1500, Módulo SA 8 x U/I HS, resolução de 16 Bits, precisão de 0,3%, 8 canais em grupos de 8, Diagnósticos; Valor de substituição 8 canais EN 0.125 MS

Mais detalhes


AUTOMAÇÃO > SIMATIC S7-1500: E / S

Produto novo em sua embalagem original com todas as garantias e certificações de SIEMENS

Preço total: $1,160.35
Preço unitário: $1,160.35
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

▲

Mais informação

▲


Dados adicionais

Product
Article Number (Market Facing Number)6ES7532-5HF00-0AB0
Product DescriptionSIMATIC S7-1500, analog output module AQ8xU/I HS, 16-bit resolution accuracy 0.3%, 8 channels in groups of 8, diagnostics; substitute value 8 channels in 0.125 ms oversampling; the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015. delivery including infeed element, shielding bracket and shield terminal: front connector (screw terminals or push-in) to be ordered separately
Product familySM 532 analog output modules
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group219 / 219
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99H
Standard lead time ex-works60 Day/Days
Net Weight (kg)0,419 Kg
Packaging Dimension16,10 x 19,40 x 4,70
Package size unit of measureCM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4025515080176
UPC887621139179
Commodity Code85389091
LKZ_FDB/ CatalogIDST73
Product Group4501
Group CodeR151
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 25.02.2013
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Dicyclohexyl phthalate (DCHP)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-22-01
eClass7.127-24-22-01
eClass827-24-22-01
eClass927-24-22-01
eClass9.127-24-22-01
ETIM5EC001420
ETIM6EC001420
ETIM7EC001420
ETIM8EC001420
IDEA43562
UNSPSC1432-15-17-05
UNSPSC1532-15-17-05

Dados ETIM

ETIM: EC001420 - Módulo de entradas/saídas analógicas de PLC

Valor Unidade



Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
6ES7532-5HF00-0AB0 EN_6ES7532-5HF00-0AB0.pdf 155 Kbytes 6ES7532-5HF00-0AB0 EN_6ES7532-5HF00-0AB0.pdf
