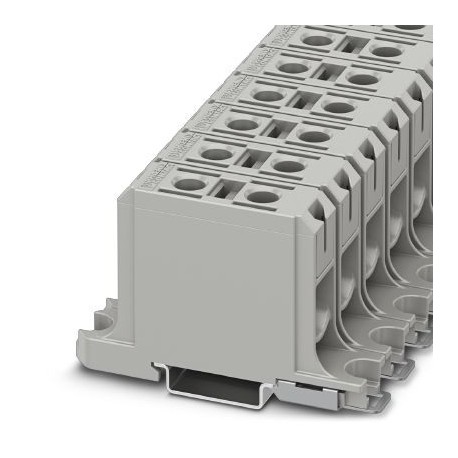

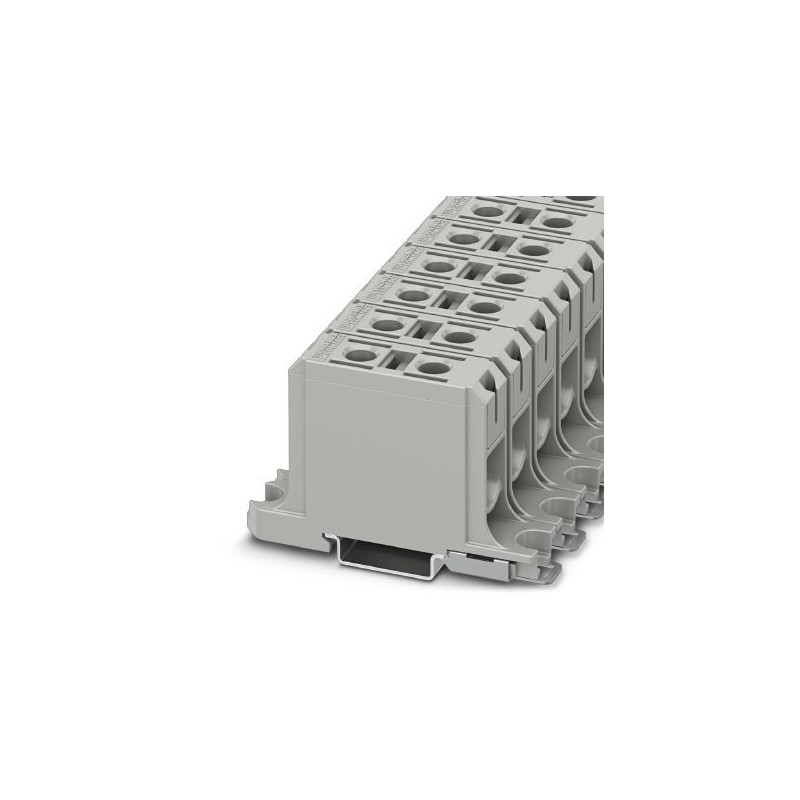

UBAL 50 1086465 PHOENIX CONTACT Alta-tensão terminal do bloco, do bloco Terminal de alumínio e condutores de..
UBAL 50
1086465
PHOENIX_CONTACT
20
Alta-tensão terminal do bloco, do bloco Terminal de alumínio e condutores de cobre (AL-CU), nom. tensão: 1000 V, corrente nominal: 145 Um, método de ligação: Parafuso de conexão, número de conexões: 2, número de posições: 1, seção transversal: 6 mm2 50 mm2 AWG: 6 - 1/0, largura: 19,2 mm, altura: 51 mm, cor: cinza, tipo de montagem: NS 35/15, NS 35/7,5
High-current terminal block, Terminal block for aluminum and copper conductors (AL-CU), nom. voltage: 1000 V, nominal current: 145 A, connection method: Screw connection, number of connections: 2, number of positions: 1, cross section: 6 mm² - 50 mm², AWG: 6 - 1/0, width: 19.2 mm, height: 51 mm, color: gray, mounting type: NS 35/15, NS 35/7,5
Blocos de terminais > Terminal de conexão de passagem
Terminais
* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Mais informação
▲Dados comerciais
| Chave de encomenda | 1086465 |
|---|---|
| Quantidade de embalagem | 1 |
| Página de catálogo | Página 583 (C-1-2019) |
| GTIN (EAN) | 4055626879208 |
| Número do imposto alfandegário | 85369010 |
General
| Note | Terminal block for aluminum and copper conductors (AL-CU) |
|---|---|
| Number of positions | 1 |
| Number of levels | 1 |
| Number of connections | 2 |
| Potentials | 1 |
| Nominal cross section | 50 mm² |
| Color | gray |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | II |
| Note | The following values apply to aluminum conductors |
| Maximum load current | 145 A (with 50 mm² conductor cross section) |
| Nominal current IN | 145 A |
| Nominal voltage UN | 1000 V |
| Note | The following values apply to copper wires |
| Maximum load current | 150 A (with 50 mm² conductor cross section) |
| Nominal current IN | 150 A |
| Nominal voltage UN | 1000 V |
| Open side panel | No |
| Result of surge voltage test | Test passed |
| Surge voltage test setpoint | 8 kV |
| Power frequency withstand voltage setpoint | 2.2 kV |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) | Test passed |
| Bending test conductor cross section/weight | 2.5 mm² / 0.7 kg |
| 50 mm² / 9.5 kg | |
| Conductor cross section tensile test | 2.5 mm² |
| Tractive force setpoint | 50 N |
| Conductor cross section tensile test | 50 mm² |
| Tractive force setpoint | 236 N |
| Result of tight fit on support | Test passed |
| Tight fit on carrier | NS 35 |
| Setpoint | 10 N |
| Requirements, voltage drop | U1≤ 3.2 mV; U2≤ 1.5 x U1 |
| Result of temperature-rise test | Test passed |
| Short circuit stability result | Test passed |
| Conductor cross section short circuit testing | 50 mm² |
| Short-time current | 6 kA |
| Result of thermal test | Test passed |
| Proof of thermal characteristics (needle flame) effective duration | 10 s |
| Relative insulation material temperature index (Elec., UL 746 B) | 600 °C |
Dimensions
| Width | 19.2 mm |
|---|---|
| Length | 82.5 mm |
| Height | 51 mm |
| Height NS 35/7,5 | 51 mm |
| Height NS 35/15 | 58.5 mm |
Connection data
| Note | Screws with hexagonal socket |
|---|---|
| Connection method | Screw connection |
| Screw thread | M10 |
| Stripping length | 23 mm |
| Note | The following values apply to aluminum conductors |
| Connection in acc. with standard | IEC 61238-1 |
| Conductor cross section solid min. | 6 mm² |
| Conductor cross section solid max. | 50 mm² |
| Conductor cross section AWG min. | 6 |
| Conductor cross section AWG max. | 1/0 |
| Conductor cross section flexible min. | 6 mm² |
| Conductor cross section flexible max. | 50 mm² |
| Note | The values for aluminum conductors relate to multi-stranded conductors in accordance with EN 60228. Application notes on connecting aluminum conductors can be found in the download area. |
| The following values apply to copper wires | |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section solid min. | 2.5 mm² |
| Conductor cross section solid max. | 50 mm² |
| Conductor cross section AWG min. | 6 |
| Conductor cross section AWG max. | 1/0 |
| Conductor cross section flexible min. | 2.5 mm² |
| Conductor cross section flexible max. | 35 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 35 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 2.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 35 mm² |
| 2 conductors with same cross section, stranded min. | 1.5 mm² |
| 2 conductors with same cross section, stranded max. | 16 mm² |
Standards and Regulations
| Connection in acc. with standard | IEC 61238-1 |
|---|---|
| IEC 60947-7-1 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classificações
eCl@ss
| eCl@ss 4.0 | 27141120 |
|---|---|
| eCl@ss 4.1 | 27141120 |
| eCl@ss 5.0 | 27141120 |
| eCl@ss 5.1 | 27141100 |
| eCl@ss 6.0 | 27141100 |
| eCl@ss 7.0 | 27141120 |
| eCl@ss 8.0 | 27141120 |
| eCl@ss 9.0 | 27141120 |
ETIM
| ETIM 2.0 | EC000897 |
|---|---|
| ETIM 3.0 | EC000897 |
| ETIM 4.0 | EC000897 |
| ETIM 5.0 | EC000897 |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
UNSPSC
| UNSPSC 6.01 | 30211811 |
|---|---|
| UNSPSC 7.0901 | 39121410 |
| UNSPSC 11 | 39121410 |
| UNSPSC 12.01 | 39121410 |
| UNSPSC 13.2 | 39121410 |
| UNSPSC 18.0 | 39121410 |
| UNSPSC 19.0 | 39121410 |
| UNSPSC 20.0 | 39121410 |
| UNSPSC 21.0 | 39121410 |
