SAC-5P-MS/10,0-PUR SH SCO
1407807
PHOENIX_CONTACT
1

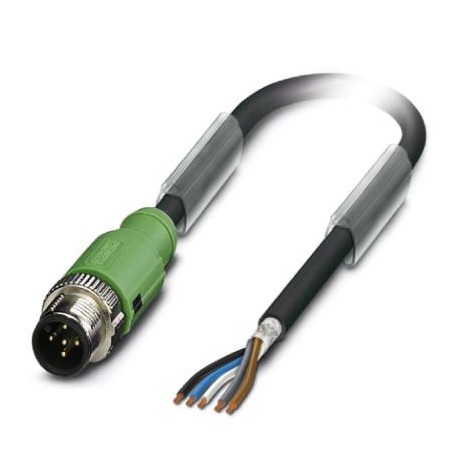

Sensor Cable / atuador 5 pólos, PUR, preto-cinzento RAL 7021, blindado, M12 par conector macho SPEEDCON, codificado, livre da extremidade do cabo, comprimento do cabo livre de halogênio: 10 m
Cabos, sensores e atuadores
* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Obrigado pelo seu interesse nos nossos artigos, esperamos que o prazo indicado seja conveniente para si.
Durante a preparação do pedido pode seleccionar o tipo de envío que melhor se adapte ás suas necessidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Length of cable | 10 m |
---|
Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
---|---|
Degree of protection | IP65 |
IP67 |
Rated current at 40°C | 4 A |
---|---|
Rated voltage | 60 V |
Number of positions | 5 |
Insulation resistance | ≥ 100 MΩ |
Coding | A - standard |
Standards/regulations | M12 connector IEC 61076-2-101 |
Status display | No |
Protective circuit/component | Unwired |
Overvoltage category | II |
Pollution degree | 3 |
Insertion/withdrawal cycles | ≥ 100 |
Torque | 0.4 Nm (M12 connector) |
Flammability rating according to UL 94 | HB |
---|---|
Contact material | CuSn |
Contact surface material | Ni/Au |
Contact carrier material | TPU GF |
Material of grip body | TPU, hardly inflammable, self-extinguishing |
Material, knurls | Zinc die-cast, nickel-plated |
Cable type | PUR halogen-free black |
---|---|
Cable type (abbreviation) | PUR |
Cable abbreviation | LiF9YC11Y |
UL AWM style | 20549 |
Conductor cross section | 5x 0.34 mm² (signal line) |
AWG signal line | 22 |
Conductor structure signal line | 42x 0.10 mm |
Core diameter including insulation | 1.27 mm ±0.02 mm (signal line) |
Thickness, insulation | ≥ 0.21 mm |
Wire colors | Brown, white, blue, black, gray |
Overall twist | 5 wires around filler to the core |
Shielding | Tinned copper braided shield |
Optical shield covering | 85 % |
External sheath, color | black-gray RAL 7021 |
External cable diameter D | 5.9 mm ±0.2 mm |
Smallest bending radius, fixed installation | 29.5 mm |
Smallest bending radius, movable installation | 59 mm (up to +60°C) |
Number of bending cycles | 4000000 |
Bending radius | 59 mm |
Traversing path | 10 m |
Traversing rate | 3 m/s |
Acceleration | 10 m/s² |
Cable weight | 48 kg/km |
Outer sheath, material | PUR |
Material conductor insulation | PP |
Conductor material | Bare Cu litz wires |
Insulation resistance | 70 GΩ*km (at 20 °C) |
Conductor resistance | max. 57 Ω/km (at 20 °C) |
Nominal voltage, cable | 300 V (at 20 °C) |
Test voltage Core/Core | 3000 V (at 20 °C) |
Special properties | Flexible cable conduit capable |
Flame resistance | in acc. with UL FT-2 |
Halogen-free | in accordance with DIN VDE 0472 part 815 |
Other resistance | hydrolysis and microbe resistant |
partly UV-resistant in accordance with DIN EN ISO 4892-2-A | |
Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
-25 °C ... 80 °C (cable, flexible installation) |
