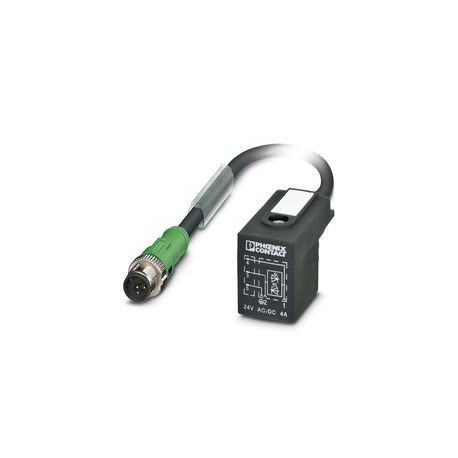

SAC-3P-M12MS/ 1,2-240/BI
1548096
PHOENIX_CONTACT
100
Cabo do sensor/atuador, 3 polos sem halogênio, conector reto M12, codificação: A, A BI Conectores de válvula (11mm), comprimento do cabo: 1,2 m, variante do cliente
Sensor/actuator cable, 3-position halogen-free, Plug straight M12, coding: A, on Valve connector BI (11 mm), cable length: 1.2 m, Customer version
Cabos, sensores e atuadores
* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Obrigado pelo seu interesse nos nossos artigos, esperamos que o prazo indicado seja conveniente para si.
Durante a preparação do pedido pode seleccionar o tipo de envío que melhor se adapte ás suas necessidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Product type | Sensor/actuator cable with valve connector |
Number of positions | 3 |
No. of cable outlets | 1 |
Shielded | no |
Coding | A |
Insulation characteristics | |
Overvoltage category | III |
Degree of pollution | 3 |
Flammability rating according to UL 94 | HB |
Seal material | TPU |
Material housing valve plug | TPU |
Material of grip body | TPU |
Contact material | CuSn |
Contact surface material | Ni/Au |
Contact carrier material | TPU GF |
Contact material | CuSn |
Valve plug contact insert material | PA 6.6 |
Contact surface material | Sn |
Material for screw connection | Zinc die-cast, nickel-plated |
Contact resistance | ≤ 5 mΩ |
Insulation resistance | ≥ 100 MΩ |
Nominal voltage UN | 48 V AC |
60 V DC | |
Nominal current IN | 4 A |
Mechanical data | |
Insertion/withdrawal cycles | ≥ 100 (M12 connector) |
Connection 1 | |
Type | Plug straight M12 |
Number of positions | 3 |
Coding type | A |
Connection 2 | |
Type | Valve connector BI (11 mm) |
Number of positions | 3 |
Material | CuSn (Contact) |
Sn (Contact surface) | |
PA 6.6 (Contact carriers) | |
TPU (Housing) |
Cable length | 1.2 m |
PUR halogen-free yellow [240] | |
Desenho cotado | |
Shielded | no |
UL AWM Style | 20549 (80°C/300 V) |
Cable weight | 30 kg/km |
Cable type | PUR halogen-free yellow |
Short symbol | Li9Y11Y |
Cable type (abbreviation) | 240 |
External cable diameter | 4.5 mm ±0.15 mm |
Outer sheath, material | PUR |
External sheath, color | yellow |
Thickness, outer sheath | approx. 0.6 mm |
Conductor material | Bare Cu litz wires |
Conductor structure signal line | 28x 0.15 mm |
AWG signal line | 20 |
Conductor cross section | 3x 0.5 mm² |
Material wire insulation | PP |
Thickness, insulation | ≥ 0.21 mm |
Wire diameter incl. insulation | 1.46 mm ±0.02 mm |
Single wire, color | black 1, black 2, green/yellow |
Overall twist | 3 wires, twisted |
Nominal voltage, cable | ≤ 300 V |
Test voltage, cable | ≥ 3000 V |
Cable resistance | ≤ 39 Ω/km |
Cable insulation resistance | ≥ 10 GΩ*km |
Minimum bending radius, fixed installation | 5 x D |
Minimum bending radius, flexible installation | 10 x D |
Halogen-free | in accordance with DIN VDE 0472 part 815 |
Resistance to oil | in accordance with DIN EN 60811-2-1 |
Flame resistance | in accordance with DIN UL-Style 20549 |
Ambient temperature (operation) | -15 °C ... 80 °C (cable, fixed installation) |
Ambient conditions | |
Degree of protection | IP65 |
IP67 | |
Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
-20 °C ... 85 °C (valve plug) | |
-40 °C ... 80 °C (cable, fixed installation) | |
-15 °C ... 80 °C (Cable, flexible installation) |
