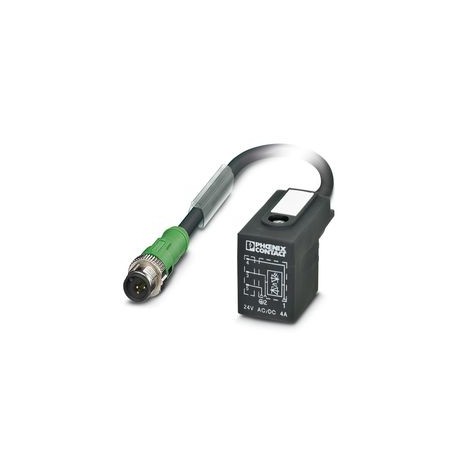

SAC-3P-M12MS/ 1,2-240/BI 1548096 PHOENIX CONTACT Sensor/actuator cable, 3-pole, halogen-free PUR, yellow, M1..
SAC-3P-M12MS/ 1,2-240/BI
1548096
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Sensor/actuator cable, 3-pole, halogen-free PUR, yellow, M12 straight connector, coding: A, to BI valve connector (11 mm), cable length: 1.2 m, Customer variant
Sensor/Actuator Cable, Halogen-Free 3-Pole, M12 Straight Connector, Coding: A, A BI Valve Connectors (11mm), Cable Length: 1.2 m, Customer Variant
Sensor-actuator cable, 3-pin halogen-free, straight male M12, coding: A, on BI valve connector (11 mm), cable length: 1.2 m, Custom variant
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Sensor/actuator cable with valve connectors |
| No. of poles | 3 |
| Number of cable outlets | 1 |
| Shielded | no |
| Coding | at |
| Insulation characteristics | |
| Overvoltage Category | Iii |
| Degree of pollution | 3 |
| Combustibility class according to UL 94 | HB |
| Gasket material | TPU |
| Valve connector housing material | TPU |
| Grip material | TPU |
| Contact Material | CuSn |
| Contact Surface Material | Ni/Au |
| Contact Insert Material | TPU GF |
| Contact Material | CuSn |
| Material valve connector contact insert | PA 6.6 |
| Contact Surface Material | Sn |
| Screw connection material | Zinc die casting, nickel-plated |
| Mass Resistivity | ≤ 5 mΩ |
| Insulation Resistance | ≥ 100 MΩ |
| Rated voltage UN | 48 V AC |
| 60 V DC | |
| Rated Current IN | 4 A |
| Mechanical data | |
| Manoeuvring cycles | ≥ 100 (M12 connector) |
| Connection 1 | |
| type | Straight Male M12 |
| No. of poles | 3 |
| Encoding Type | at |
| Connection 2 | |
| type | BI valve connector (11 mm) |
| No. of poles | 3 |
| Material | CuSn (Contact) |
| Sn (Contact surface) | |
| PA 6.6 (Contact Carrier) | |
| TPU (Case) | |
| Cable Length | 1.2 m |
| Halogenated PUR yellow [240] | |
| Dimensioned Drawing |  |
| Shielded | no |
| UL AWM Style | 20549 (80 °C / 300 V) |
| Line Weight | 30 kg/km |
| Cable Type | Halogenated PUR yellow |
| Acronym | Li9Y11Y |
| Cable type (abbreviation) | 240 |
| Conductor Outer Diameter | 4.5 mm ±0.15 mm |
| Outer Sheath, Material | WHILE |
| Outer sheath, color | Yellow |
| Outer sheath wall thickness | approx. 0.6 mm |
| Conductor material | Bare Cu Wire |
| Line Signal Conductor Structure | 28x 0.15 mm |
| AWG Signal Line | 20 |
| Conductor cross-section | 3x 0.5 mm² |
| Wire insulation material | PP |
| Insulation wall thickness | ≥ 0.21 mm |
| Wire diameter with insulating sheath | 1.46 mm ±0.02 mm |
| Single conductor, color | Black 1, Black 2, Green/Yellow |
| Full stranding | 3 longitudinally twisted wires |
| Cable Rated Voltage | ≤ 300 V |
| Cable Test Voltage | ≥ 3000 V |
| Line Resistance | ≤ 39 Ω/km |
| Line insulation resistance | ≥ 10 GΩ*km |
| Minimum bending radius, fixed | 5 x D |
| Minimum bending radius, flexible | 10 x D |
| Halogen-free | according to DIN VDE 0472 Part 815 |
| Oil Resistance | according to DIN EN 60811-2-1 |
| Flame Resistance | according to UL-Style 20549 |
| Ambient temperature (operating) | -15 °C ... 80 °C (cables, fixed laying) |
| Environmental conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operating) | -25 °C ... 90 °C (Female Connector / Connector) |
| -20 °C ... 85 °C (valve connector) | |
| -40 °C ... 80 °C (cables, fixed installation) | |
| -15 °C ... 80 °C (Cables, mobile installation) | |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 3 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 1.2 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Yellow |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -15 °C |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP65 |
