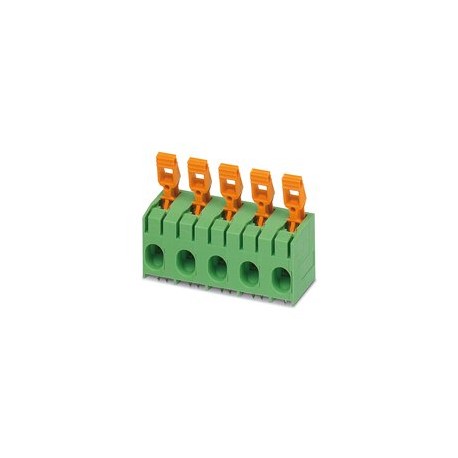

PLH 16/ 4-15 MIX BK/GN 1825131 PHOENIX CONTACT Borne de placa de circuito impresso, corrente nominal: 76 A, .. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

PLH 16/ 4-15 MIX BK/GN 1825131 PHOENIX CONTACT Borne de placa de circuito impresso, corrente nominal: 76 A, ..

PLH 16/ 4-15 MIX BK/GN

1825131

PHOENIX_CONTACT

Borne de placa de circuito impresso, corrente nominal: 76 A, tensão nominal: 1000 V, passo: 15 mm, número de polos: 4, tipo de conexão: Conexão por mola com encaixe por pressão, montagem: Solda por onda, sentido de conexão condutor/platina: 0 °, cor: multicolor

PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm2, number of rows: 1, number of positions per row: 4, product range: PLH 16/, pitch: 15 mm, connection method: Push-lock spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, Pin layout: Linear double pinning, Solder pin [P]: 4.5 mm, number of solder pins per potential: 4, type of packaging: packed in cardboard

Mais detalhes


Conectores PCB

* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT

* Este artigo pode estar obsoleto. Se você estiver interessado, insira seu e-mail e informaremos se há unidades disponíveis. Caso não existam mais, um dos nossos técnicos procurará uma alternativa fornecivel com características semelhantes.

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

▲

Mais informação

▲


Dados técnicos
Product properties
Product lineCOMBICON Terminals XL
Product typePrinted circuit board terminal
Product familyPLH 16/
Number of positions4
Pitch15 mm
Number of rows1
Pin layoutLinear double pinning
Solder pins per potential4
Electrical properties
Nominal current IN76 A
Nominal voltage UN1000 V
Degree of pollution3
Rated voltage (III/3)1000 V
Rated surge voltage (III/3)8 kV
Rated voltage (III/2)1000 V
Rated surge voltage (III/2)8 kV
Rated voltage (II/2)1000 V
Rated surge voltage (II/2)8 kV
Connection data
Connection technology
Nominal cross section16 mm²
Conductor connection
Connection methodPush-lock spring connection
Conductor cross section rigid0.75 mm² ... 16 mm²
Conductor cross section flexible0.75 mm² ... 25 mm²
Conductor cross section AWG18 ... 4
Conductor cross section flexible, with ferrule without plastic sleeve0.75 mm² ... 16 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.75 mm² ... 10 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.75 mm² ... 4 mm²
Stripping length18 mm
Mounting
Mounting typeWave soldering
Pin layoutLinear double pinning
Connection methodPush-lock spring connection
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface terminal point (top layer)Tin (10 - 16 µm Sn)
Metal surface soldering area (top layer)Tin (10 - 16 µm Sn)
Material data - housing
Color ()()
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Material data – actuating element
Insulating materialPBT
Insulating material groupIIIa
CTI according to IEC 60112275
Flammability rating according to UL 94V0
Dimensions
Dimensional drawinghxwaiuudgf.jpeg
Pitch15 mm
Height [h]29 mm
Length [l]30.5 mm
Installed height33.5 mm
Solder pin length [P]4.5 mm
Pin dimensions1.2 x 1.2 mm
PCB design
Pin spacing12.5 mm
Hole diameter1.6 mm
Mechanical tests
Test for conductor damage and slackening
SpecificationIEC 60999-1:1999-11
ResultTest passed
Repeated connection and disconnection
SpecificationIEC 60999-1:1999-11
ResultTest passed
Pull-out test
SpecificationIEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value0.75 mm² / solid / > 30 N
0.75 mm² / flexible / > 30 N
16 mm² / stranded / > 100 N
16 mm² / flexible / > 100 N
10 mm² / flexible with ferrule / > 90 N
Electrical tests
Temperature-rise test
SpecificationIEC 60947-7-4:2013-08
Requirement temperature-rise testThe sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature.
Short-time withstand current
SpecificationIEC 60947-7-4:2013-08
Insulation resistance
SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions> 5 MΩ
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)1000 V
Rated surge voltage (III/3)8 kV
minimum clearance value - non-homogenous field (III/3)8 mm
minimum creepage distance (III/3)12.5 mm
Rated insulation voltage (III/2)1000 V
Rated surge voltage (III/2)8 kV
minimum clearance value - non-homogenous field (III/2)8 mm
minimum creepage distance (III/2)8 mm
Rated insulation voltage (II/2)1000 V
Rated surge voltage (II/2)8 kV
minimum clearance value - non-homogenous field (II/2)5.5 mm
minimum creepage distance (II/2)5.5 mm
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Sweep speed5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Glow-wire test
SpecificationIEC 60695-2-10:2000-10
Temperature850 °C
Time of exposure5 s
Aging
SpecificationIEC 60947-7-4:2013-08
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (Depending on the current carrying capacity/derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard
