MACX MCR-RTD-I
1050192
PHOENIX_CONTACT
1

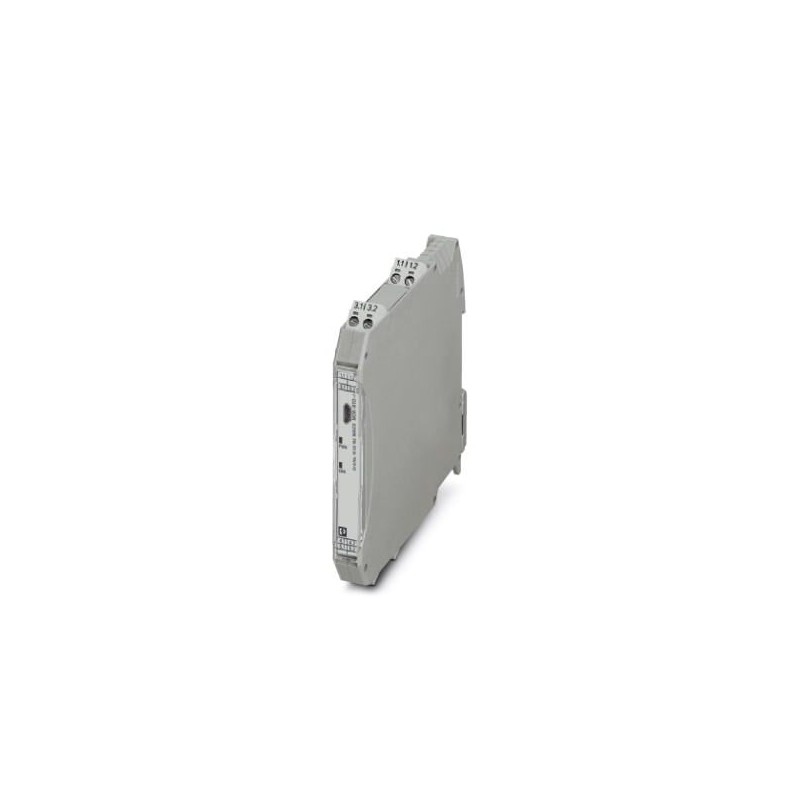

Temperatura transdutor, convertidos em sinais de detectores de temperatura por resistência e resistências em analógica 0/4 - 20 mA sinais. Livremente programáveis, conexão a parafuso, SIL, 3-forma de isolamento elétrico, a configuração padrão.
Temperature transducer, converts signals from resistance temperature detectors and resistors into analog 0/4 - 20 mA signals. Freely programmable, screw connection, SIL, 3-way electrical isolation, standard configuration.
Sensores > Conversor de temperatura
Interface
* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Obrigado pelo seu interesse nos nossos artigos, esperamos que o prazo indicado seja conveniente para si.
Durante a preparação do pedido pode seleccionar o tipo de envío que melhor se adapte ás suas necessidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Chave de encomenda | 1050192 |
---|---|
Quantidade de embalagem | 1 UNID |
Observação | Produzido sob encomenda (sem devolução) |
Página de catálogo | Página 130 (C-5-2019) |
GTIN (EAN) | 4055626666105 |
Peso por unidade (exclusive embalagem) | 150,000 g |
Número do imposto alfandegário | 85437090 |
País de origem | DE (Alemanha) |
Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
---|
Ambient temperature (operation) | -40 °C ... 70 °C (Any mounting position) |
---|---|
Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Noise immunity | EN 61000-6-2 When being exposed to interference, there may be minimal deviations. |
Sensor types (RTD) that can be used | Pt, Ni, Cu sensors: 2, 3, 4-wire |
---|---|
Temperature measuring range | -200 °C ... 850 °C (Range depending on the sensor type) |
Input signal range | 0 Ω ... 50 kΩ |
Potentiometer resistance range | 0 Ω ... 50 kΩ |
Cable resistance | ≤ 50 Ω per cable |
Sensor input current | 10 µA ... 210 µA (up to 2 x 210 µA for 3-conductor) |
Measuring range span | ≥ 50 K |
Signal output | Current output |
---|---|
Configurable/programmable | Yes |
Current output signal | 0 mA ... 20 mA |
4 mA ... 20 mA (SIL) | |
Max. current output signal | ≥ 21 mA |
Load/output load current output | ≤ 600 Ω |
Output ripple (current) | < 15 µAPP |
Behavior in the event of a sensor error | As per NE 43 or can be freely defined |
Nominal supply voltage | 24 V DC |
---|---|
Supply voltage range | 19.2 V DC ... 30 V DC (24 V DC -20%...+25%) |
Power dissipation | ≤ 0.76 W |
Power consumption | ≤ 1 W |
No. of channels | 1 |
---|---|
Transmission error, typical | 0.1 % (e.g. for Pt 100, 300 K span, 4 ... 20 mA) |
Temperature coefficient, typical | 0.01 %/K |
Step response (0–99%) | typ. 1 s |
≤ 1.7 s | |
Alignment zero | ± 5 % |
Alignment span | ± 5 % |
Status display | Green LED (supply voltage, PWR) |
Red LED, flashing 2.4 Hz (cable error, sensor error on input or output, ERR) | |
Red LED, flashing 1.2 Hz (service operation, ERR) | |
Red LED, permanently on (module error, ERR) | |
Electromagnetic compatibility | Conformance with EMC directive |
Interference emission | EN 61000-6-4 |
Housing material | PA 6.6-FR |
Color | gray |
Designation | Input/output/power supply |
Electrical isolation | 300 Vrms(Rated insulation voltage (overvoltage category II; degree of pollution 2, safe isolation as per EN 61010-1)) |
2.5 kV (50 Hz, 1 min., test voltage) | |
Designation | Input/output |
Electrical isolation | 375 V (Peak value in accordance with EN 60079-11) |
Designation | Input/power supply |
Electrical isolation | 375 V (Peak value in accordance with EN 60079-11) |
Conformance | CE-compliant, additionally EN 61326 |
ATEX | II 3 G Ex ec ic IIC T4 Gc |
IECEx | Ex ec ic IIC T4 Gc |
SIL | 2 |
Designation | Electromagnetic RF field |
---|---|
Standards/regulations | EN 61000-4-3 |
Typical deviation from the measuring range final value | 1 % |
Designation | Fast transients (burst) |
Standards/regulations | EN 61000-4-4 |
Typical deviation from the measuring range final value | 1 % |
Designation | Conducted interferences |
Standards/regulations | EN 61000-4-6 |
Typical deviation from the measuring range final value | 1 % |
Electromagnetic compatibility | Conformance with EMC directive |
---|---|
Noise emission | EN 61000-6-4 |
Designation | Electromagnetic RF field |
Standards/regulations | EN 61000-4-3 |
EN 61000-4-4 | |
Designation | Conducted interferences |
Standards/regulations | EN 61000-4-6 |
Conformance | CE-compliant, additionally EN 61326 |
ATEX | II 3 G Ex ec ic IIC T4 Gc |
IECEx | Ex ec ic IIC T4 Gc |
DNV GL-Temperature | B |
DNV GL-Humidity | B |
DNV GL-Vibration | A |
DNV GL-EMC | B |
DNV GL-Enclosure | Required protection according to the Rules shall be provided upon installation on board |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
eCl@ss 4.0 | 27210120 |
---|---|
eCl@ss 4.1 | 27210120 |
eCl@ss 5.0 | 27210120 |
eCl@ss 5.1 | 27210120 |
eCl@ss 6.0 | 27210120 |
eCl@ss 7.0 | 27210120 |
eCl@ss 8.0 | 27200206 |
eCl@ss 9.0 | 27210129 |
ETIM 2.0 | EC001446 |
---|---|
ETIM 3.0 | EC001446 |
ETIM 4.0 | EC001446 |
ETIM 5.0 | EC001446 |
ETIM 6.0 | EC002919 |
ETIM 7.0 | EC002919 |
UNSPSC 6.01 | 30211506 |
---|---|
UNSPSC 7.0901 | 39121008 |
UNSPSC 11 | 39121008 |
UNSPSC 12.01 | 39121008 |
UNSPSC 13.2 | 41112105 |
UNSPSC 18.0 | 41112105 |
UNSPSC 19.0 | 41112105 |
UNSPSC 20.0 | 41112105 |
UNSPSC 21.0 | 41112105 |
