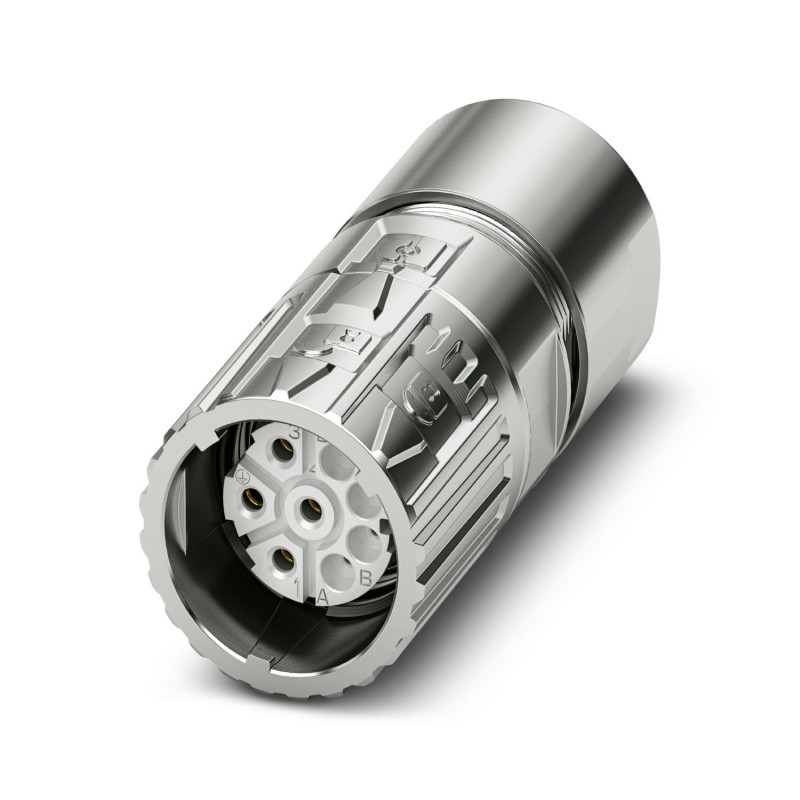

M23-7ES198A80DNS 1628811 PHOENIX CONTACT Cabo conector M23 PRO, reto, curto, blindado: sim, ONECLICK rápido,..
M23-7ES198A80DNS
1628811
PHOENIX_CONTACT
Cabo conector M23 PRO, reto, curto, blindado: sim, ONECLICK rápido, sistema de travamento, M23, Não. de pos.: 4+3+PE, tipo de contato: Soquete, ligação Faston, cabo de faixa de diâmetro: 5.5 mm 15 mm ...
M23, Conector de cabo, M23 PRO, Curto reto, blindado: sim, Bloqueio rápido ONECLICK, Nº de pólos: 4+3+PE, Tipo de contato: Fêmea, Conexão crimpada, faixa de diâmetro do cabo: 5,5 mm ... 15 mm, O item não contém chumbo de acordo com a diretiva RoHS II, sem exceção 6c (Pb< 0,1%)
M23, Cable connector, series: M23 PRO, straight short, shielded: yes, ONECLICK fast locking system, No. of pos.: 4+3+PE, contact connection type: Socket, Crimp connection, cable diameter range: 5.5 mm ... 15 mm, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)
Conectores > Conector redondo, montagem em campo (conector industrial)
Conexão de dispositivos de campo
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Related products
▲Best sellers
▲Mais informação
▲| Order information: | Order crimp contacts 4 x Ø 1 mm, 4 x Ø 2 mm separately |
| Safety note | |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. | |
| • The products are suitable for applications in plant, controller, and electrical device engineering. | |
| • When operating the connectors in outdoor applications, they must be separately protected against environmental influences. | |
| • Assembled products may not be manipulated or improperly opened. | |
| • Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). | |
| • When using the product in direct connection with third-party manufacturers, the user is responsible. | |
| • For operating voltages > 50 V AC, conductive connector housings must be grounded | |
| • Ensure that the protective or functional ground has been properly connected. | |
| • VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector | |
| • Only use tools recommended by Phoenix Contact | |
| • The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. | |
| • Operate the connector only when it is fully plugged in and interlocked. | |
| • Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. | |
| • Observe the minimum bending radius of the cable. Lay the cable without twisting it. | |
| • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). | |
| Product type | Circular connector (cable-side) |
| Data management status | |
| Article revision | 05 |
| Connection 1 | |
| Head design | Socket |
| Insulating body | |
| Note | Order information: Order crimp contacts 4 x Ø 1 mm, 4 x Ø 2 mm separately |
| Insulation body material | PA 6.6 |
| Insertion/withdrawal cycles | 100 |
| Connection method | Crimp connection |
| Contact switching type | Socket |
| Application | Power |
| Number of positions | 8 |
| Connection profile | 4+3+PE |
| Contact diameterPower contacts | 2 mm |
| Litz wire cross-sectionPower contactsmin. | 0.25 mm² |
| Litz wire cross-sectionPower contactsmax. | 4 mm² |
| Rated currentPower contacts | 30 A |
| Note | for max. connection cross section |
| Rated voltage | 630 V |
| Rated surge voltage | 6 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Contact diameterSignal contacts | 1 mm |
| Litz wire cross-sectionSignal contactsmin. | 0.06 mm² |
| Litz wire cross-sectionSignal contactsmax. | 1 mm² |
| Nominal current per signal contact | 9 A |
| Note | for max. connection cross section |
| Rated voltage Signal contact | 250 V |
| Rated surge voltage | 4 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Installation height | 3000 m |
| Housing | |
| Housing material | GD-Zn |
| Type of locking | ONECLICK fast locking system |
| Pg screw connection | none |
| Degree of protection (plugged in) | IP66 / IP68 (2m / 24h) / IP69K |
| Thread type | M23 |
| Seal | |
| External cable diameter | 5.5 mm ... 15 mm (Universal gasket) |
| Seal material | FKM |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C (see to derating) |
| Permanent temperature | 125 °C (DIN EN 60512-9-2 / 1000 h) |
| Característica | Valor |
|---|---|
| Número de contatos de dados (EF012232) | 0 |
| Número de contatos de potência (EF012216) | 0 |
| Temperatura ambiente (EF002386) | -40 °C |
| Tipo de fecho (EF000208) | Outro |
| Com condutor de proteção (EF007468) | Não |
| Blindado (EF000881) | Não |
| Com indicação de estado (EF001602) | Não |
