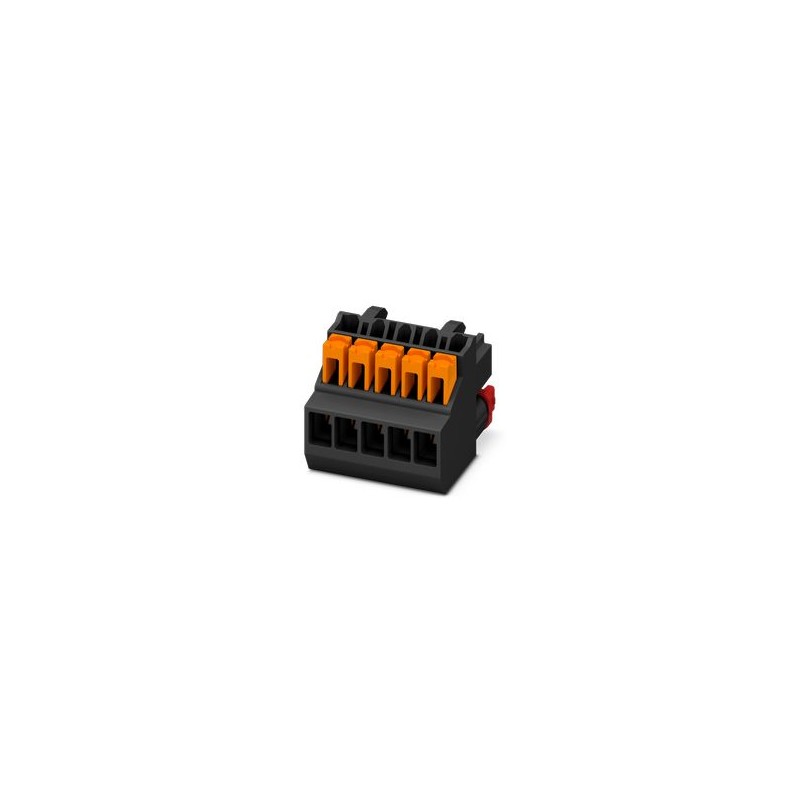

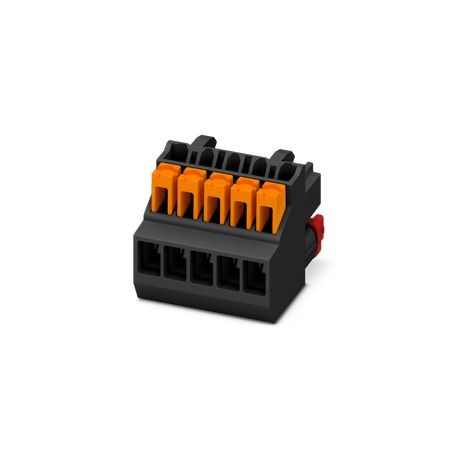

ICC25-PPC1,5/5-3,5-AA-BK 1561123 PHOENIX CONTACT Conector para placa de circuito impresso, seção nominal: 1,..
ICC25-PPC1,5/5-3,5-AA-BK
1561123
PHOENIX_CONTACT
50
Conector para placa de circuito impresso, seção nominal: 1,5 mm², cor: preto, corrente nominal: 8 A, tensão nominal (III/2): 150 V, superfície de contato: Sn, tipo de conexão de contato: Fêmea, número de potenciais: 5, número de linhas: 1, número de polos: 5, número de conexões: 5, família de artigos: ICC.. -PPC1.5/.. -3,5, passo: 3,5 mm, tipo de conexão: Conexão de mola push-in, direção de conexão condutor/placa de circuito impresso: 0 °, gancho de fixação: - Gancho de fixação, trava: sem, tipo de fixação: sem, tipo de embalagem: encaixotado, Normalmente cor de contato com mola: laranja
Conector plug-in para placa circ. impresso
PCB connector, nominal cross section: 1.5 mm2, color: black, nominal current: 8 A, rated voltage (III/2): 150 V, contact surface: Tin, contact connection type: Socket, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: ICC..-PPC1,5/..-3,5, pitch: 3.5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, locking: without, mounting: without, type of packaging: packed in cardboard, Color of the spring lever: orange
Conectores > Conector de cabo para conector de circuito impresso
Caixas eletrônicas
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Best sellers
▲Mais informação
▲| Product type | PCB connector |
| Product family | ICC..-PPC1,5/..-3,5 |
| Number of positions | 5 |
| Pitch | 3.5 mm |
| Number of connections | 5 |
| Number of rows | 1 |
| Number of potentials | 5 |
| Nominal current IN | 8 A |
| Nominal voltage UN | 150 V |
| Degree of pollution | 3 |
| Contact resistance | 2.19 mΩ |
| Rated voltage (III/3) | 150 V |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated voltage (III/2) | 150 V |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated voltage (II/2) | 250 V |
| Connection technology | |
| Nominal cross section | 1.5 mm² |
| Contact connection type | Socket |
| Interlock | |
| Locking type | without |
| Mounting flange | without |
| Conductor connection | |
| Connection method | Push-in spring connection |
| Conductor/PCB connection direction | 0 ° |
| Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 0.75 mm² |
| Stripping length | 10 mm |
| Material data - contact | |
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu alloy |
| Surface characteristics | Tin-plated |
| Material data - housing | |
| Color (Housing) | black (9005) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
| Material data – actuating element | |
| Color (Actuating element) | orange (2003) |
| Insulating material | PBT |
| CTI according to IEC 60112 | 275 |
| Flammability rating according to UL 94 | V0 |
| Dimensional drawing |  |
| Pitch | 3.5 mm |
| Width [w] | 17.9 mm |
| Height [h] | 14.9 mm |
| Length [l] | 22 mm |
| Connection method | Push-in spring connection |
| Coding | For details, refer to the product drawing in the “Downloads” tab. |
| Safety note | |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. | |
| • The item is intended to be an unencapsulated plug for installation in a housing. | |
| • Operate the connector only when it is fully plugged in. | |
| Test for conductor damage and slackening | |
| Specification | IEC 60999-1:1999-11 |
| Result | Test passed |
| Repeated connection and disconnection | |
| Specification | IEC 60999-1:1999-11 |
| Result | Test passed |
| Pull-out test | |
| Specification | IEC 60999-1:1999-11 |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 0.2 mm² / solid / > 10 N |
| 0.2 mm² / flexible / > 10 N | |
| 1.5 mm² / solid / > 40 N | |
| 1.5 mm² / flexible / > 40 N | |
| Insertion and withdrawal forces | |
| Result | Test passed |
| No. of cycles | 25 |
| Insertion strength per pos. approx. | 6.1 N |
| Withdraw strength per pos. approx. | 3.9 N |
| Resistance of inscriptions | |
| Specification | IEC 60068-2-70:1995-12 |
| Result | Test passed |
| Polarization and coding | |
| Specification | IEC 60512-13-5:2006-02 |
| Result | Test passed |
| Visual inspection | |
| Specification | IEC 60512-1-1:2002-02 |
| Result | Test passed |
| Dimension check | |
| Specification | IEC 60512-1-2:2002-02 |
| Result | Test passed |
| Vibration test | |
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Sweep speed | 50 m/s² (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Durability test | |
| Specification | IEC 60512-9-1:2010-03 |
| Impulse withstand voltage at sea level | 2.95 kV |
| Contact resistance R1 | 2.19 mΩ |
| Contact resistance R2 | 2.17 mΩ |
| Insertion/withdrawal cycles | 25 |
| Insulation resistance, neighboring positions | > 5 TΩ |
| Climatic test | |
| Specification | ISO 6988:1985-02 |
| Corrosive stress | 0.2 dm3SO2on 300 dm3/40 °C/1 cycle |
| Thermal stress | 100 °C/168 h |
| Power-frequency withstand voltage | 1.39 kV |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C (dependent on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Thermal test | Test group C | |
| Specification | IEC 60512-5-1:2002-02 |
| Tested number of positions | 5 |
| Insulation resistance | |
| Specification | IEC 60512-3-1:2002-02 |
| Insulation resistance, neighboring positions | > 1 TΩ |
| Air clearances and creepage distances | | |
| Specification | IEC 60664-1:2007-04 |
| Insulating material group | I |
| Comparative tracking index (IEC 60112) | CTI 600 |
| Rated insulation voltage (III/3) | 150 V |
| Rated surge voltage (III/3) | 2.5 kV |
| minimum clearance value - non-homogenous field (III/3) | 1.5 mm |
| minimum creepage distance (III/3) | 1.6 mm |
| Rated insulation voltage (III/2) | 150 V |
| Rated surge voltage (III/2) | 2.5 kV |
| minimum clearance value - non-homogenous field (III/2) | 1.5 mm |
| minimum creepage distance (III/2) | 0.8 mm |
| Rated insulation voltage (II/2) | 250 V |
| minimum clearance value - non-homogenous field (II/2) | 1.5 mm |
| minimum creepage distance (II/2) | 1.25 mm |
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
| Característica | Valor |
|---|---|
| Tipo de conexão mecânica (EF000064) | Outro |
| Tipo de contacto (EF001587) | Ficha |
| Número de polos (EF001391) | 5 |
| Número de linhas de contato da ficha (EF006935) | 1 |
| Contatos de espaçamento modular (EF007326) | 3.5 mm |
| Dimensão das conexões (EF006827) | 3.5 mm |
| Ângulo de contato/conexão do driver (EF007546) | Outro |
| Corrente nominal especificada In (EF008250) | 8 A |
| Tensão especificada de funcionamento (EF000228) | 150 V |
| Categoria de sobretensão (I, II, III ou IV) (EF006785) | III |
| Grau de poluição (1 a 4) (EF006786) | 2 |
| Secção de condutor de fio fino de ligação sem ponteira (EF007341) | 0.2 mm² |
| Secção do condutor de fio fino de ligação com ponteira (EF007339) | 0.25 mm² |
| Secção da ligação de cabo rígido (EF007337) | 0.2 mm² |
| Acabamento da conexão elétrica (EF003961) | Conexão por terminal de mola |
| Tipo de cabo conectável (EF006816) | Cabo tubular |
| Material de contato (EF007544) | Cobre |
| Material do corpo isolante (EF007543) | Poliamida |
| Material da caixa protetora (EF001596) | Outro |
| Cor da caixa (EF000136) | Preto |
| Classe de inflamabilidade do material de selagem de acordo com UL 94 (EF002521) | V0 |
| Temperatura de operação (EF002393) | -40 °C |
