EV-T2M3SO12-4P-R-B-SET 1532126 PHOENIX CONTACT CHARX Connect modular, Tipo 2, Soquete de recarga infraestrut..
EV-T2M3SO12-4P-R-B-SET
1532126
PHOENIX_CONTACT
10

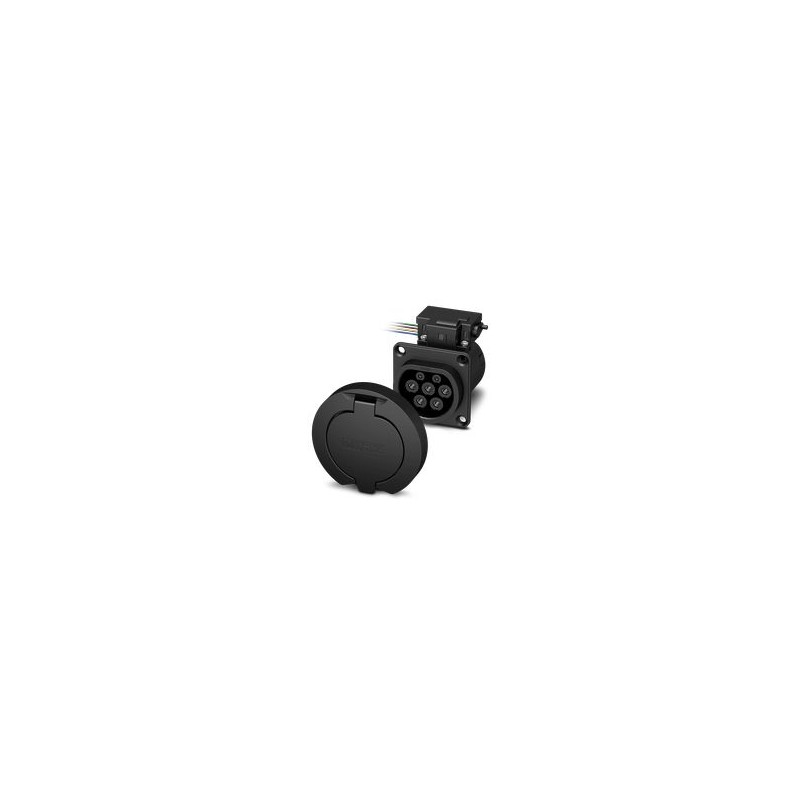

CHARX Connect modular, Tipo 2, Soquete de recarga infraestrutural, 32 A, 480 V CA, Básico, Conjunto, sem drivers individuais, atuador de travamento: 12 V, 4 polos, Retangular, Montagem traseira na parede, rosca M5, carcaça: preta, com tampa protetora arredondada, para carregamento de veículos elétricos (EV) com corrente alternada (CA), logo PHOENIX CONTACT, IEC 62196-2
Conector CHARX modular, Tomada de infraestrutura, Retangular, Básico, Set, Com tampa protetora redonda, para carregamento de veículos elétricos (EV) com corrente alternada (AC), Tipo 2, IEC62196-2, 32 A / 480 V (AC), sem drivers individuais, atuador de travamento: 12 V, 4 polos, Montagem na parede traseira, rosca M5, carcaça: preto, logotipo PHOENIX CONTACT
CHARX connect modular, Infrastructure charging socket, square, Basic, Set, with round protective cover, for charging electric vehicles (EV) with alternating current (AC), Type 2, IEC 62196-2, 32 A / 480 V (AC), without single-core wires, locking actuator: 12 V, 4-pos., Rear panel mounting, M5 thread, housing: black, PHOENIX CONTACT logo
Dispositivos de encaixe industriais e especiais > Acessórios E-Mobility
Mobilidade Eletrônica
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Best sellers
▲Mais informação
▲| Design (Infrastructure charging socket) | square |
| Design (Protective cover) | circular |
| Design (Protective cap) | circular |
| Product type | Infrastructure charging socket |
| Product family | CHARX connect modular |
| Application | for charging electric vehicles (EV) with alternating current (AC) |
| compatible with infrastructure charging plugs | |
| Type | Basic |
| Set | |
| Design | with round protective cover |
| Affixed logo | PHOENIX CONTACT logo |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case B |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Connection via spade connector, separable and reconnectable |
| Type of charging current | AC 3-phase |
| Charging power rating | 22 kW |
| Charging power | max. 26.6 kW |
| Charging current | max. 32 A |
| Power contact | |
| Number | 5 (L1, L2, L3, N, PE) |
| Rated voltage | 480 V AC |
| Rated current | 32 A |
| Signal contact | |
| Number | 2 (CP, PP) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
| Locking actuator | |
| Operating voltage | 12 V |
| Note number of positions | 4-pos. |
| Position of the locking actuator | top center |
| Locking actuator | |
| Operating voltage | 12 V |
| Note number of positions | 4-pos. |
| Position of the locking actuator | top center |
| Possible power supply range at the motor | 9 V ... 16 V |
| Maximum voltage for locking detection | 30 V |
| Typical motor current for locking | 0.2 A |
| Reverse current of the motor | max. 1 A |
| Max. dwell time with reverse current | 1000 ms |
| Recommended adaptation time | 600 ms |
| Pause time after entry or exit path | 3 s |
| Service life insertion cycles | > 10000 load cycles |
| Lock recognition | available |
| Mechanical emergency release | available |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Cable length | 0.5 m |
| Cable structure | 4 x 0.5 mm² |
| Cross section AWG | (converted acc. to IEC) |
| Infrastructure charging socket | |
| Dimensional drawing |  |
| Width | 75 mm |
| Height | 91.71 mm |
| Depth | 87.95 mm |
| Protective cover | |
| Dimensional drawing |  |
| Depth | 22.9 mm |
| Diameter | 109.2 mm |
| Bore dimensions | |
| Dimensional drawing |  |
| Width | 60 mm |
| Height | 60 mm |
| Protective cap | |
| Width | 64 mm |
| Height | 57 mm |
| Depth | 24 mm |
| Color (Housing) | black (9005) |
| Color (Protective cover) | black (9005) |
| Material (Housing) | Plastic |
| Material (Protective cover) | Plastic |
| Material (Contact surface) | Silver |
| Cable type | without single-core wires |
| Single-core wires for locking actuator | |
| Cable length | 0.5 m |
| Cable structure | 4 x 0.5 mm² |
| Single wire, material | PVC |
| Single wire, color | BU/RD, BU/GN, BU/YE, BU/BN |
| External cable diameter | 1.6 mm ±0.20 mm |
| Cable resistance | ≤ 37.1 Ω/m |
| Type of cover movement | Self-locking |
| Mechanical data | |
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
| Ambient conditions | |
| Degree of protection (Infrastructure charging socket) | IP44 (plugged in) |
| Degree of protection (Protective cover) | IP54 |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
| Standards | |
| Standards/regulations | IEC 62196-2 |
| Mounting type Infrastructure charging socket | Rear panel mounting (0 to 90 degree frontal inclination possible) |
| Mounting type Protective cover | Rear panel mounting |
| Max. wall thickness | max. 50 mm (Rear panel mounting, normative maximum specification for infrastructure plug) |
| max. 30 mm (Rear panel mounting, normative maximum specification for infrastructure charging plug when using protective cover 1347421) | |
| Mounting hole diameter | 7.00 mm (ø) |
| Fixing screws | M5 thread |
| Screws included in the scope of delivery | none |
| Característica | Valor |
|---|---|
| Tipo de acessório/peça de reposição (EF000215) | Outro |
