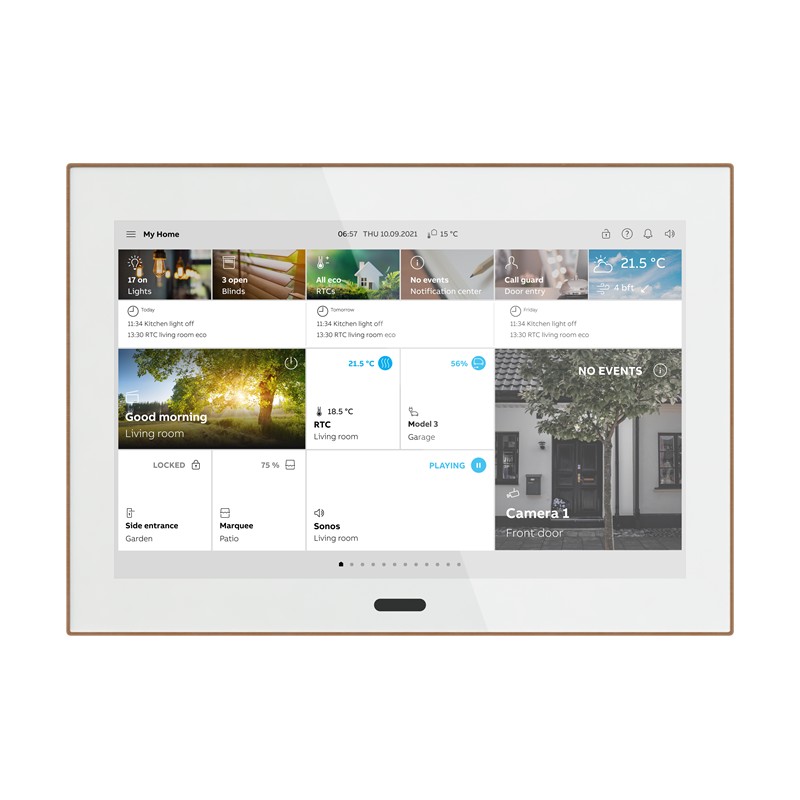

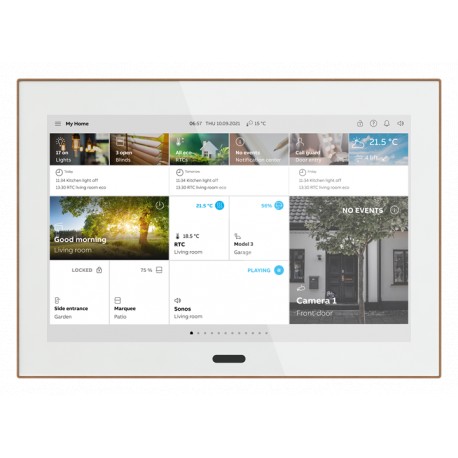

2TMA310051W0004 ST/U10.4.1-811 NIESSEN SmartTouch 10 BL/ouro rosa
2TMA310051W0004
ST/U10.4.1-811
NIESSEN
SmartTouch 10 BL/ouro rosa
Freely programmable Touch panel featuring a 10-inch IPS screen with 1280*800 resolution that combines smart home automation and door communication in one device for residential applications, hotels, and commercial buildings. SmartTouch 10 offers home control and monitoring of the free@home, or KNX system and the fully integrated functions of ABB Welcome®.Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs. SmartTouch® 10” can also be used as an end device for communication with the ABB-Welcome outdoor stations, and as part of the ABB-Welcome door communication system.FunctionsKNX: • A total of 450 control elements are displayed on a maximum of 25 pages. • 80 fault and alarm messages• 30 logic functions• 40 timers• presence simulation for 20 participants • 10 scene actuators • 3 object RTC• Equipped with a hearing loop for coupling the audio signal into hearing aids • Page display with a maximum of 18 touch surfaces on one page free@home:• Twisted pair connection provides a single page with a maximum of 18 controls. • Alternatively, for additional control, connection via wi-fi delivers the same amount of control and features as the free@home App.Welcome:• Integrated IP Gateway• Possibility to integrate ONVIF IP camerasExternal power supply: 20-32 VDC (SELV) or via the ABB-Welcome system controller. Display size: 25,4cm (10”): Display resolution: 1280*800 : Display screen: IPS displayDimensions (L x W x D): (180.2mm x 254.6mm x 17.5mm)Flush or wall mounted, mount for desktop installationThe flat design slim real metal frame sits almost flush with the wall (14mm) and is available in 4 colours (stainless steel, anthracite, gold and rose gold) and black or white glass.
Home Automation
* Produto novo em sua embalagem original com todas as garantias e certificações de NIESSEN
Mais informação
▲- Tipo de produto alargado:
- ST/U10.4.1-811
- ID do produto:
- 2TMA310051W0004
- EAN:
- 6955891819498
- Descrição do catálogo:
- ST/U10.4.1-811 SmartTouch 10 W/rose gold
- Descrição longa:
- Freely programmable Touch panel featuring a 10-inch IPS screen with 1280*800 resolution that combines smart home automation and door communication in one device for residential applications, hotels, and commercial buildings. SmartTouch 10 offers home control and monitoring of the free@home, or KNX system and the fully integrated functions of ABB Welcome®.
Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs. SmartTouch® 10” can also be used as an end device for communication with the ABB-Welcome outdoor stations, and as part of the ABB-Welcome door communication system.
Functions
KNX:
• A total of 450 control elements are displayed on a maximum of 25 pages.
• 80 fault and alarm messages
• 30 logic functions
• 40 timers
• presence simulation for 20 participants
• 10 scene actuators
• 3 object RTC
• Equipped with a hearing loop for coupling the audio signal into hearing aids
• Page display with a maximum of 18 touch surfaces on one page
free@home:
• Twisted pair connection provides a single page with a maximum of 18 controls.
• Alternatively, for additional control, connection via wi-fi delivers the same amount of control and features as the free@home App.
Welcome:
• Integrated IP Gateway
• Possibility to integrate ONVIF IP cameras
External power supply: 20-32 VDC (SELV) or via the ABB-Welcome system controller.
Display size: 25,4cm (10”): Display resolution: 1280*800 : Display screen: IPS display
Dimensions (L x W x D): (180.2mm x 254.6mm x 17.5mm)
Flush or wall mounted, mount for desktop installation
The flat design slim real metal frame sits almost flush with the wall (14mm) and is available in 4 colours (stainless steel, anthracite, gold and rose gold) and black or white glass.
Acessório
| Identificador | Descrição | tipo | Qt | Unidade de Medida |
|---|---|---|---|---|
| 2TMA310161W0001 | ST/A10.1-811 SmartTouch 10 SM Frame W | ST/A10.1-811 | 1 | piece |
| 2CKA006136A0212 | 6136/07 UP-500 Mounting box FM | 6136/07 UP-500 | 1 | piece |
| 2CDG120037R0011 | CP-D24/2.5 priOn Power Supply, 24 V DC, 2.5 A, MDRC | CP-D24/2.5 | 1 | piece |
| 2CKA008300A0478 | 83506-500 Desktop stand | 83506-500 | 1 | piece |
Installation
- Instruções e Manuais:
- 2CKA001473B5343
- Instruções e Manuais (Parte 2):
- 2CKA001373B5343
Circular Value
- Circular Design Principles Recyclability Rate:
- Design for Closing Resource Loops - Standard EN45555 - 38.8 %
- Sustainable Material Content in Packaging:
- Recycled Cardboard - 93 %
- Offered with Extended Lifetime:
- Product Upgradability
- Offered with Takeback Services:
- Take Back for Recycling
Eco Transparency
- Environmental Product Declaration - EPD:
- 9AKK108469A0173
Technical
- Ficha de dados, informação técnica:
- 2CKA001373B5351
- Tensão nominal (Ur):
- 20 ... 32 V
- Auxiliary Voltage AC/DC:
- 24 V DC
- Interface da Comunicação:
- LAN
- Compatible Bus Systems:
- free@home wireless
KNX (TP)
Welcome
free@home (TP)
- Product Range:
- free@home
KNX
- Tipo de visor:
- TFT Touch Display
- Tipo de apoio:
- Flush Mounted
- Material da caixa:
- Plastic
- Material:
- Glass
Plastic
Stainless steel
- Manual Operation:
- Yes
- Posição de montagem:
- horizontal
- Color:
- white glass
- Number of Batteries:
- 0
- Tamanho do ecrã:
- 10 in
- Application Function:
- Blind / Shutter / Shading Control
Electrical Load and Light Control
Data Communication / Multimedia
Room Climate Control
Safety and Security
Environmental
- Temperatura do ar ambiente:
- Operation 0 ... +45 °C
- Grau de proteção:
- IP20
- Estado RoHS:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Informação RoHS:
- 2CKA200000E7721
- REACH Declaration:
- No declaration needed
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Largura Líquida do Produto:
- 180.2mm
- Altura Líquida do Produto:
- 17.5mm
- Profundidade/Comprimento Líquidos do Produto:
- 254.6mm
- Peso Líquido do Produto:
- 953g
Certificates and Declarations
- Declaração de conformidade -CE:
- 2CKA100000E4602
Classifications
- ETIM 8:
- EC000783 - Signalling and operation panel for bus system
- ETIM 9:
- EC000783 - Signalling and operation panel for bus system
- Categoria REEE:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- REEE B2C / B2B:
- Business To Consumer
- CN8:
- 8517 79 00
- eClass:
- V11.0 : 27143101
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF Catalogue Sky Niessen EN.pdf | 15 Mbytes |
|
| PDF Catalogue Zenit EN.pdf | 19 Mbytes |
|
| 2TMA310051W0004 ST/U10.4.1-811 PT_2TMA310051W0004.pdf | 939 Kbytes |
|
