Ver más grande

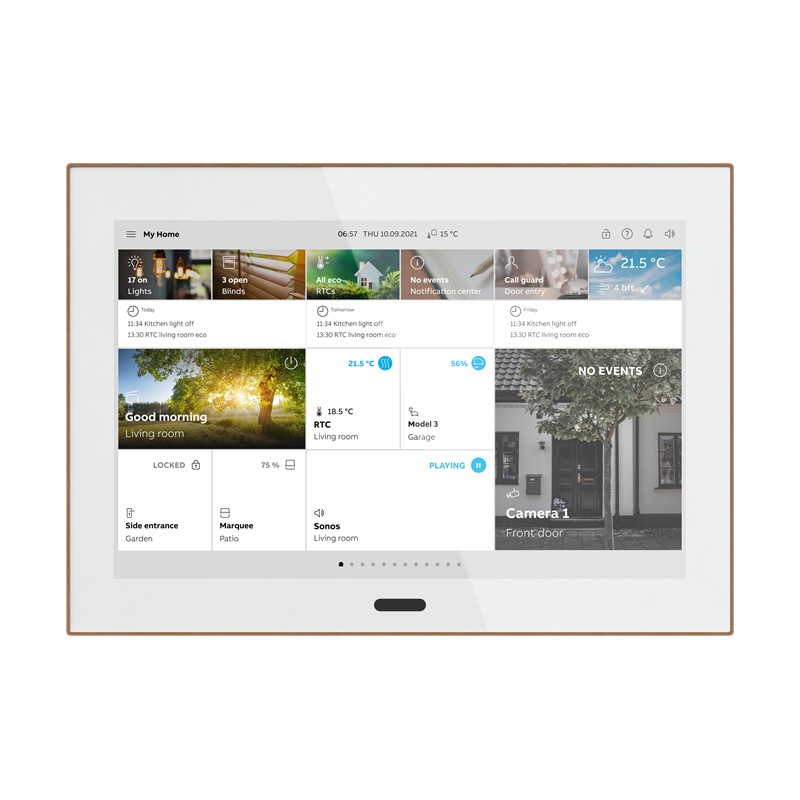

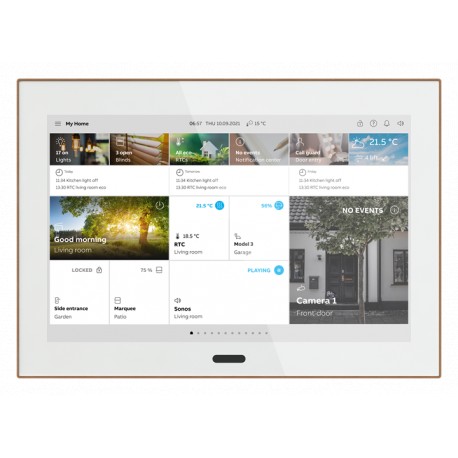

2TMA310051W0004 ST/U10.4.1-811 NIESSEN SmartTouch 10 BL/oro rosado
2TMA310051W0004
ST/U10.4.1-811
NIESSEN
SmartTouch 10 BL/oro rosado
Freely programmable Touch panel featuring a 10-inch IPS screen with 1280*800 resolution that combines smart home automation and door communication in one device for residential applications, hotels, and commercial buildings. SmartTouch 10 offers home control and monitoring of the free@home, or KNX system and the fully integrated functions of ABB Welcome®.Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs. SmartTouch® 10” can also be used as an end device for communication with the ABB-Welcome outdoor stations, and as part of the ABB-Welcome door communication system.FunctionsKNX: • A total of 450 control elements are displayed on a maximum of 25 pages. • 80 fault and alarm messages• 30 logic functions• 40 timers• presence simulation for 20 participants • 10 scene actuators • 3 object RTC• Equipped with a hearing loop for coupling the audio signal into hearing aids • Page display with a maximum of 18 touch surfaces on one page free@home:• Twisted pair connection provides a single page with a maximum of 18 controls. • Alternatively, for additional control, connection via wi-fi delivers the same amount of control and features as the free@home App.Welcome:• Integrated IP Gateway• Possibility to integrate ONVIF IP camerasExternal power supply: 20-32 VDC (SELV) or via the ABB-Welcome system controller. Display size: 25,4cm (10”): Display resolution: 1280*800 : Display screen: IPS displayDimensions (L x W x D): (180.2mm x 254.6mm x 17.5mm)Flush or wall mounted, mount for desktop installationThe flat design slim real metal frame sits almost flush with the wall (14mm) and is available in 4 colours (stainless steel, anthracite, gold and rose gold) and black or white glass.
Home Automation
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de NIESSEN
Más vendidos
▲Más Información
▲- Tipo de producto extendido:
- ST/U10.4.1-811
- Código de producto:
- 2TMA310051W0004
- EAN:
- 6955891819498
- Descripción corta:
- ST/U10.4.1-811 SmartTouch 10 W/rose gold
- Descripción larga:
- Freely programmable Touch panel featuring a 10-inch IPS screen with 1280*800 resolution that combines smart home automation and door communication in one device for residential applications, hotels, and commercial buildings. SmartTouch 10 offers home control and monitoring of the free@home, or KNX system and the fully integrated functions of ABB Welcome®.
Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs. SmartTouch® 10” can also be used as an end device for communication with the ABB-Welcome outdoor stations, and as part of the ABB-Welcome door communication system.
Functions
KNX:
• A total of 450 control elements are displayed on a maximum of 25 pages.
• 80 fault and alarm messages
• 30 logic functions
• 40 timers
• presence simulation for 20 participants
• 10 scene actuators
• 3 object RTC
• Equipped with a hearing loop for coupling the audio signal into hearing aids
• Page display with a maximum of 18 touch surfaces on one page
free@home:
• Twisted pair connection provides a single page with a maximum of 18 controls.
• Alternatively, for additional control, connection via wi-fi delivers the same amount of control and features as the free@home App.
Welcome:
• Integrated IP Gateway
• Possibility to integrate ONVIF IP cameras
External power supply: 20-32 VDC (SELV) or via the ABB-Welcome system controller.
Display size: 25,4cm (10”): Display resolution: 1280*800 : Display screen: IPS display
Dimensions (L x W x D): (180.2mm x 254.6mm x 17.5mm)
Flush or wall mounted, mount for desktop installation
The flat design slim real metal frame sits almost flush with the wall (14mm) and is available in 4 colours (stainless steel, anthracite, gold and rose gold) and black or white glass.
Accessories
| Identificador | Description | Type | Cantidad | Unit Of Measure |
|---|---|---|---|---|
| 2CKA008300A0478 | 83506-500 Desktop stand | 83506-500 | 1 | piece |
Installation
- Instrucciones y manuales:
- 2CKA001473B5343
- Instrucciones y manuales (parte 2):
- 2CKA001373B5343
Circular Value
- Principios de diseño circular Tasa de reciclabilidad:
- Design for Closing Resource Loops - Standard EN45555 - 38.8 %
- Contenido de material sostenible en los envases:
- Recycled Cardboard - 93 %
- Se ofrece con una vida útil ampliada:
- Product Upgradability
- Se ofrece con los servicios de recogida:
- Take Back for Recycling
Eco Transparency
- Declaración Ambiental de Producto - EPD:
- 9AKK108469A0173
Technical
- Ficha técnica, información técnica:
- 2CKA001373B5351
- Tensión nominal (Ur):
- 20 ... 32 V
- Tensión auxiliar AC/DC:
- 24 V DC
- Interfaz de comunicación:
- LAN
- Sistemas de bus compatibles:
- free@home wireless
KNX (TP)
Welcome
free@home (TP)
- Gama de productos:
- free@home
KNX
- Tipo de pantalla:
- TFT Touch Display
- Tipo de montaje:
- Flush Mounted
- Material de la carcasa:
- Plastic
- Material:
- Glass
Plastic
Stainless steel
- Funcionamiento manual:
- Yes
- Posición de montaje:
- horizontal
- Color:
- white glass
- Número de pilas:
- 0
- Tamaño de la pantalla:
- 10 in
- Función de la aplicación:
- Blind / Shutter / Shading Control
Electrical Load and Light Control
Data Communication / Multimedia
Room Climate Control
Safety and Security
Ambiente
- Temperatura ambiente:
- Funcionamiento 0 ... +45 °C
- Grado de protección:
- IP20
- Estado de RoHS:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Información sobre RoHS:
- 2CKA200000E7721
- Declaración REACH:
- No declaration needed
- Plantilla de notificación de minerales de conflicto (CMRT):
- 9AKK108468A3363
Dimensiones
- Ancho del product:
- 180.2mm
- Alto del producto:
- 17.5mm
- Largo del product:
- 254.6mm
- Peso del product:
- 953g
Certificados y Declaraciones (Número de Documento)
- Declaración de conformidad - CE:
- 2CKA100000E4602
Clasificaciones
- ETIM 8:
- EC000783 - Signalling and operation panel for bus system
- ETIM 9:
- EC000783 - Signalling and operation panel for bus system
- Categoría RAEE:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 8517 79 00
- Clase electrónica:
- V11.0 : 27143101
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATALOGO NIESSEN ES.pdf | 185 Mbytes |
|
| 2TMA310051W0004 ST/U10.4.1-811 ES_2TMA310051W0004.pdf | 939 Kbytes |
|
