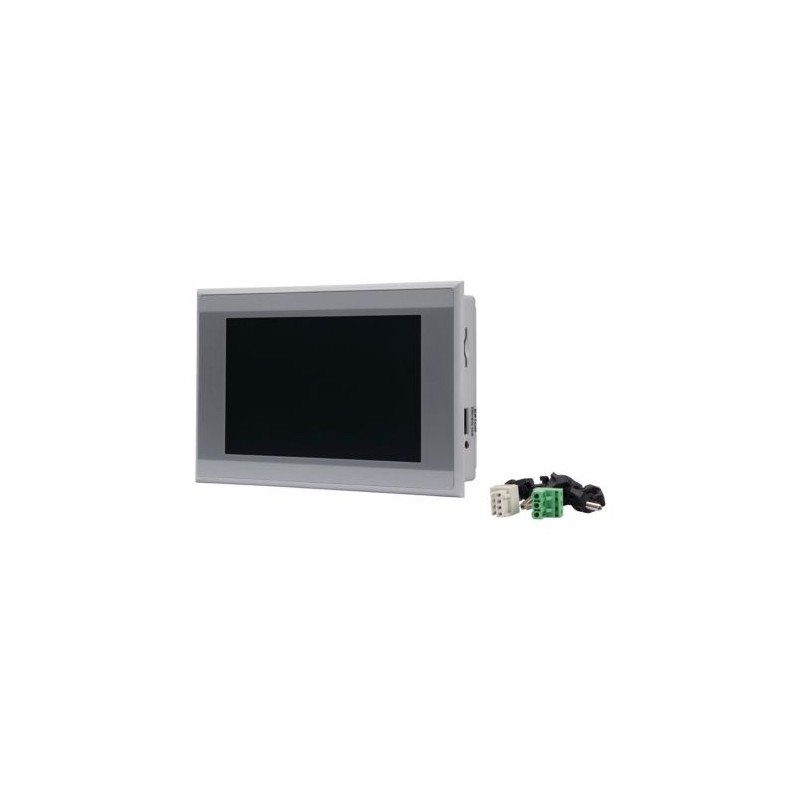

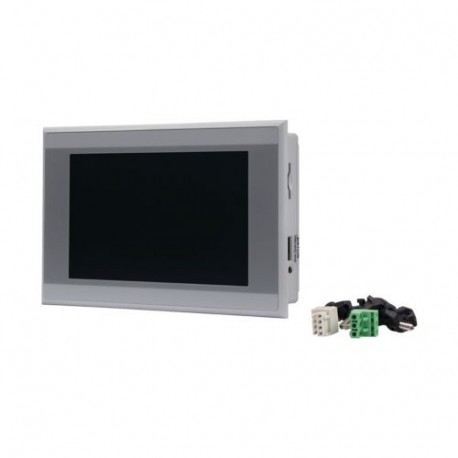

XV-102-E8-70TWRC-10 153528 Y7-153528 EATON ELECTRIC Terminaltactil7smartwire
XV-102-E8-70TWRC-10
153528
Y7-153528
EATON-MOELLER
Terminaltactil7smartwire
Terminal de toque 7 "TFT resistiva cor Ethernet RS485 Profibus DP
Eaton XV-102 Touch panel, 24 V DC, 7z, TFTcolor, ethernet, RS485, profibus, SWDT, PLC
Interface de utilizador, XV-102, Gama de produtos: XV100 7z, Subgama: Ecrã táctil SmartWire-DT com controlador integrado (HMI PLC), Função: Coordenador SmartWire-DT, Descrição: Ecrã táctil XV100 com função PLC para placas de montagem encastradas, Coordenador do sistema de comunicações SmartWire-DT, Características comuns da série de modelos: Interface Ethernet, Dispositivo USB, Anfitrião USB, Ranhura para cartões SD, UL508, aprovações cUL, Tipo de tela: Tela colorida, TFT, Tecnologia de toque: Resistive-Touch, Número de cores: 64 k Cores, Resolução: WVGA, 800 x 480 pixels, Formato vertical: sim, Diagonal da tela: 7 polegadas, Caixa isolante e placa frontal, Sistema operacional: Windows CE 5.0 (licença incluída), Licença PLC: Licença PLC incluída, Certificados de licença para interfaces integradas: Não é necessário, Interfaces integradas: 1 x Ethernet 10/100 Mbps, 1 x RS485, 1 x USB 2.0 host, 1 x dispositivo USB, 1 x PROFIBUS/MPI, 1 x SmartWire-DT, Tipo frontal: Frente padrão com membrana padrão (totalmente fechada), Uso: Montagem embutida, Slots: para cartão SD: 1, Automação de cartão de memória: Opcionalmente com cartão SD -> item nº 139807, Placas de comunicação plug-in (opcional): não, Sensor de toque: Vidro com filme, Dissipação de calor: 9,5 W, Conexão SmartWire-DT: sim, Grau de proteção (IEC/EN 60529, EN50178, VBG 4): IP65 (na frente), IP20 (na parte traseira)
Controladores industriais (PLC) > Painel gráfico
Terminais de Toque IHM
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲geralmente comprados juntos
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton XV-102 Touch panel
Catalog Number
153528
EAN
7640130097636
Product Length/Depth
210 mm
Product Height
38 mm
Product Width
135 mm
Product Weight
0.66 kg
Certifications
CSA File No.: UL report applies to both US and Canada
CUL508
UL508
Certified by UL for use in Canada
EN 50178
IEC/EN 61131-2
CSA Class No.: none
IEC/EN 61000-6-4
IEC/EN 61131-2, CE
UL
UL Category Control No.: NRAQ
UL File No.: E205091
CULus
EN 60950
UL 60950
DNV GL
IEC/EN 61000-6-2
EAC
CUL508
UL508
Certified by UL for use in Canada
EN 50178
IEC/EN 61131-2
CSA Class No.: none
IEC/EN 61000-6-4
IEC/EN 61131-2, CE
UL
UL Category Control No.: NRAQ
UL File No.: E205091
CULus
EN 60950
UL 60950
DNV GL
IEC/EN 61000-6-2
EAC
Model Code
XV-102-E8-70TWRC-10
Especificações do produto
Type
Coordinator for the SmartWire-DT communications system
Features
Overload proof
UL508, cUL approvals
USB device
Target and web visualization
Portrait format
Slot for SD card
USB Host
Fanless CPU and system cooling, natural convection-based passive cooling
Ethernet interface
UL508, cUL approvals
USB device
Target and web visualization
Portrait format
Slot for SD card
USB Host
Fanless CPU and system cooling, natural convection-based passive cooling
Ethernet interface
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Message system (incl. buffer and confirmation)
Alpha numeric keyboard
Message indication
Printer output
Color display
Recipes
SW interfaces
1 x RS485 (built-in interface)
Numeric keyboard
1 x USB device (built-in interface)
1 x PROFIBUS/MPI (built-in interface)
1 x USB host 2.0 (built-in interface)
1 x Ethernet 10/100 Mbps (built-in interfaces)
1 x SmartWire-DT (built-in interface)
MPI interface
Alpha numeric keyboard
Message indication
Printer output
Color display
Recipes
SW interfaces
1 x RS485 (built-in interface)
Numeric keyboard
1 x USB device (built-in interface)
1 x PROFIBUS/MPI (built-in interface)
1 x USB host 2.0 (built-in interface)
1 x Ethernet 10/100 Mbps (built-in interfaces)
1 x SmartWire-DT (built-in interface)
MPI interface
Fuse type
Built-in fuse (not accessible)
Addressing
Address set automatically
Connection to SmartWire-DT
Yes
Enclosure material
Plastic
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 60 Hz - max
0 VAC
Supply voltage at AC, 60 Hz - min
0 VAC
Supply voltage at DC - max
28.8 VDC
Supply voltage at DC - min
20.4 VDC
Width of the front
210 mm
Product category
SmartWire-DT coordinators
Resolution
Air pressure
795 - 1080 hPa (operation)
Explosion safety category for dust
ATEX dust-ex-protection, II 3D Ex II T70°C IP5x: Zone 22, Category 3D
ATEX dust-ex-protection, in relation to CE
ATEX dust-ex-protection, in relation to CE
Display size
152 x 91 mm
Backup time
10 years, typ. (time at zero voltage)
Explosion safety category for gas
Explosion protection according to EN 61241-1
Explosion protection according to EN 60079-0
Explosion protection according to EN 13463_x
Explosion protection according to EN 60079-0
Explosion protection according to EN 13463_x
Memory capacity
64,000 kByte
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
0 °C
Ambient storage temperature - max
60 °C
Ambient storage temperature - min
-20 °C
Built-in depth
33 mm
Equipment heat dissipation, current-dependent Pvid
9.5 W
Front height
135 mm
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Number of buttons (programmable function)
0
Number of buttons with LED
0
Number of grey-scales/blue-scales of display
0
Number of HW-interfaces (industrial ethernet)
1
Number of HW-interfaces (other)
1
Battery runtime
Back-up of real-time clock: CR 2032 (190 mA/h), zero maintenance (soldered)
Voltage type
DC
Connection
SmartWire-DT blade terminal SWD4-8MF2
Operating system
Windows CE 5.0 (license included)
Communication interface
PROFIBUS
SmartWire-DT master
SmartWire-DT master
Software
GALILEO, Visualization software, Engineering
EPAM, Visualization software, Engineering
XSOFT-CODESYS-2, Visualization software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
XSOFT-CODESYS-3, Visualization software, Engineering
XSOFT-CODESYS-3, PLC-Programming software, Engineering
EPAM, Visualization software, Engineering
XSOFT-CODESYS-2, Visualization software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
XSOFT-CODESYS-3, Visualization software, Engineering
XSOFT-CODESYS-3, PLC-Programming software, Engineering
Mounting method
Flush mounting - Inclination from vertical: ±45° (if using natural convection)
Flush mounting
Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18")
Flush mounting
Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18")
Display contrast ratio
300:1
Number of slots
1 (for SD-Card)
Display lighting
LED
Dimmable via software
Dimmable via software
Display type
Color display, TFT
Standard front with standard membrane (fully enclosed)
TFT
Standard front with standard membrane (fully enclosed)
TFT
Protection against polarity reversal
Yes
Yes, for supply voltage (Siemens MPI optional)
Yes, for supply voltage (Siemens MPI optional)
Relative humidity
10 - 95 % (non-condensing)
Lifespan
40,000 h (Service life of back-lighting)
Residual ripple
≤ 5 % (input voltage)
Connection type
Push in terminals, Supply voltage
SWD: Plug, 8-pole
SWD: Plug, 8-pole
Rated control supply voltage
24 V DC (UPOW, -20 %/+25 %)
24 V DC (UAUX, -20 %/+25 %)
24 V DC (UAUX, -20 %/+25 %)
Inrush current
12.5 A (for 6 ms)
Data transfer rate
250 kBit/s, SmartWire-DT
125 kBit/s, SmartWire-DT
125 kBit/s, SmartWire-DT
Degree of protection
IP20
IP20, rear
IP20, rear
Luminance intensity
250 cd/m²
Degree of protection (front side)
IP65
NEMA 4X
NEMA 4X
Number of colors of the display
65536
Station
SmartWire-DT master, SmartWire-DT network
Vibration resistance
According to IEC/EN 60068-2-6
Processor
RISC CPU, 32 Bit, 400 MHz
RoHs conformity
Yes
Supply current
3 A, Imax, Supply voltage UAux
If SmartWire-DT modules with a total power consumption > 0.7 A are connected, a power feeder module EU5C-SWD-PF2 has to be used; SmartWire-DT supply
0.7 A, Imax, SmartWire-DT supply
If contactors with a total power consumption > 3 A are connected, a power feeder module EU5C-SWD-PF1/2 has to be used, Supply voltage UAux
If SmartWire-DT modules with a total power consumption > 0.7 A are connected, a power feeder module EU5C-SWD-PF2 has to be used; SmartWire-DT supply
0.7 A, Imax, SmartWire-DT supply
If contactors with a total power consumption > 3 A are connected, a power feeder module EU5C-SWD-PF1/2 has to be used, Supply voltage UAux
Memory
32 kByte internal NVRAM (retained data)
SD Memory Card Slot: SDA Specification 1.00 (External)
64 MByte internal DRAM (OS, Program and data memory)
128 MByte internal NAND-Flash (can be used for data backup)
SD Memory Card Slot: SDA Specification 1.00 (External)
64 MByte internal DRAM (OS, Program and data memory)
128 MByte internal NAND-Flash (can be used for data backup)
Functions
Additional software components, loadable
Process value representation (output) possible
Process default value (input) possible
SmartWire-DT coordination
Process value representation (output) possible
Process default value (input) possible
SmartWire-DT coordination
Touch technology
Resistive touch
Touch sensor (glass with foil), Resistive touch protective screen
Glass with film touch sensor
Touch sensor (glass with foil), Resistive touch protective screen
Glass with film touch sensor
Model
Insulating enclosure and front plate
Interfaces
USB 2.0 host (1.5 - 12 Mbit/s, not galvanically isolated)
Ethernet (100Base-TX/10Base-T)
USB 2.0 device (not galvanically isolated)
RS485
Ethernet (100Base-TX/10Base-T)
USB 2.0 device (not galvanically isolated)
RS485
LED indicator
Status indication of Supply voltage: LED
Status indication of SmartWire-DT master: Green and red LEDs
Status indication of SmartWire-DT network: Configurable green or red LED
Status indication of SmartWire-DT master: Green and red LEDs
Status indication of SmartWire-DT network: Configurable green or red LED
Voltage dips
≤ 10 ms from rated voltage (24 V DC)
≤ 10 ms, Bridging voltage dips
5 ms from undervoltage (19.2 V DC)
≤ 10 ms, Bridging voltage dips
5 ms from undervoltage (19.2 V DC)
Number of HW-interfaces (parallel)
0
Number of HW-interfaces (RS-232)
0
Number of HW-interfaces (RS-422)
0
Number of HW-interfaces (RS-485)
1
Number of HW-interfaces (serial TTY)
0
Number of HW-interfaces (USB)
2
Number of HW-interfaces (wireless)
0
Number of interfaces (PROFINET)
0
Number of online/runtime languages
100
Number of password levels
200
Number of pixels (horizontal)
800
Number of pixels (vertical)
480
Number of SmartWire-DT slaves
99
Number of system buttons
1
Operating temperature - max
50 °C
Operating temperature - min
0 °C
Rated operational current for specified heat dissipation (In)
0 A
Repetition rate
1 s
Screen size (diagonal)
7 in
Static heat dissipation, non-current-dependent Pvs
9.5 W
Permissible voltage
35 V DC (for a duration of < 100 ms)
18.0 - 31.2 V DC, absolute with ripple
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
18.0 - 31.2 V DC, absolute with ripple
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
Potential isolation
Between UPow and 15 V SmartWire-DT supply voltage: no
Supply voltage UAUX: no
Power supply: no
Supply voltage UAUX: no
Power supply: no
Power consumption
Max. 10 W
9.5 W total
2.5 W (USB Slave to USB Host)
7 W
9.5 W total
2.5 W (USB Slave to USB Host)
7 W
Protocol
PROFIBUS
MODBUS
Other bus systems
TCP/IP
EtherNet/IP
MODBUS
Other bus systems
TCP/IP
EtherNet/IP
Rated operational current (Ie)
0.7 A
Rated operational voltage
24 V DC (power-supply - safety extra low voltage)
Typically UAUX -0.2 V (for 24 V DC slaves)
14.5 V (± 3 % - SmartWire-DT)
Typically UAUX -0.2 V (for 24 V DC slaves)
14.5 V (± 3 % - SmartWire-DT)
Short-circuit protection
Yes, Short-circuit rating, SmartWire-DT supply voltage
No, external fuse FAZ Z3, Supply voltage UAux
No, external fuse FAZ Z3, Supply voltage UAux
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
Terminal capacity
24 - 16 AWG, solid or stranded
0.25 - 1.5 mm², flexible with ferrule
0.2 - 1.5 mm², solid
0.25 - 1.5 mm², flexible with ferrule
0.2 - 1.5 mm², solid
| Característica | Valor |
|---|---|
| Tensão de alimentação AC 50 Hz (EF007532) | 0 V |
| Tensão de alimentação AC 60 Hz (EF007533) | 0 V |
| Tensão de alimentação DC (intervalo) (EF007534) | 20.4 V |
| Tipo de tensão de alimentação (EF002991) | DC |
| Consumo (potência em VA) (EF000346) | 10 W |
| Número de interfaces industriais HW Ethernet industrial (EF003020) | 1 |
| Número de interfaces PROFINET (EF006932) | 0 |
| Número de interfaces HW RS-232 (EF003021) | 0 |
| Número de interfaces HW RS-422 (EF003022) | 0 |
| Número de interfaces HW RS-485 (EF003023) | 1 |
| Número de interfaces HW de série TTY (EF003024) | 0 |
| Número de interfaces HW USB (EF003025) | 2 |
| Número de interfaces HW paralelas (EF003026) | 0 |
| Número de interfaces HW sem fio (EF006933) | 0 |
| Número de interfaces HW outras (EF003027) | 1 |
| Com interfaces software (EF003121) | Sim |
| Suporta protocolo EtherCAT (EF017564) | Não |
| Suporta o protocolo TCP/IP (EF003050) | Sim |
| Suporta o protocolo PROFIBUS (EF003052) | Sim |
| Suporta o protocolo CAN (EF003053) | Não |
| Suporta o protocolo INTERBUS (EF003054) | Não |
| Suporta o protocolo ASI (EF003051) | Não |
| Suporta o protocolo KNX (EF003055) | Não |
| Suporta o protocolo MODBUS (EF003057) | Sim |
| Suporta o protocolo Data-Highway (EF003058) | Não |
| Suporta o protocolo DeviceNet (EF003059) | Não |
| Suporta o protocolo SUCONET (EF003060) | Não |
| Suporta protocolo LON (EF003017) | Não |
| Suporta o protocolo PROFINET IO (EF007525) | Não |
| Suporta o protocolo PROFINET CBA (EF007524) | Não |
| Suporta o protocolo SERCOS (EF006657) | Não |
| Suporta o protocolo o Foundation Fieldbus (EF007522) | Não |
| Suporta o protocolo Ethernet/IP (EF007521) | Sim |
| Protocolo de suporte à segurança da interface AS no trabalho (EF007519) | Não |
| Suporta o protocolo DeviceNet Safety (EF007520) | Não |
| Suporta o protocolo INTERBUS-Safety (EF006662) | Não |
| Suporta o protocolo PROFIsafe (EF007526) | Não |
| Suporta o protocolo SafetyBUS p (EF007527) | Não |
| Suporta o protocolo outros sistemas de barramento (EF003062) | Sim |
| Rádio padrão Bluetooth (EF007178) | Não |
| Rádio padrão WLAN 802.11 (EF007179) | Não |
| Rádio padrão GPRS (EF008523) | Não |
| Rádio padrão GSM (EF008524) | Não |
| UMTS padrão de rádio (EF008525) | Não |
| Mestre de Link IO (EF007298) | Não |
| Tipo de consola (EF008244) | TFT |
| Com visor a cores (EF003097) | Sim |
| Número de cores do ecrã (EF003098) | 65536 |
| Número de escalas de cinza/azuis da consola (EF008515) | 0 |
| Diagonal do ecrã (EF002032) | 7 inch |
| Número de pixels, horizontal (EF003099) | 800 |
| Número de pixels, vertical (EF003100) | 480 |
| Memória útil do projeto/memória do utilizador (EF003108) | 64000 kByte |
| Com teclado numérico (EF003105) | Sim |
| Com teclado alfanumérico (EF003106) | Sim |
| Número de botões de função programáveis (EF003103) | 0 |
| Número de botões com LED (EF009259) | 0 |
| Número de botões do sistema (EF009260) | 1 |
| Tecnologia de toque (EF010884) | Função de toque resistente |
| Com indicação de mensagem (EF003109) | Sim |
| Com sistema de mensagens (incluindo buffer e confirmação) (EF003110) | Sim |
| Possível representação do valor do processo (saída) possível (EF003111) | Sim |
| Possível valor padrão de entrada (entrada) possível (EF003112) | Sim |
| Com receitas (EF003113) | Sim |
| Número de níveis de senha (EF003114) | 200 |
| Com saída da impressora (EF003115) | Sim |
| Número de idiomas online (EF003116) | 100 |
| Componentes de software adicionais, carregáveis (EF003117) | Sim |
| Grau de proteção (IP), frente (EF003118) | IP65 |
| Grau de proteção (NEMA), parte frontal (EF011961) | 4X |
| Certificado UL classe I para locais perigosos (EF017622) | Não |
| Certificado UL classe II para locais perigosos (EF017625) | Não |
| Certificado UL classe III para locais perigosos (EF017627) | Não |
| Certificado UL divisão I para locais perigosos (EF017628) | Não |
| Certificado UL divisão II para locais perigosos (EF017629) | Não |
| Certificado UL grupo A para locais perigosos (acetileno) (EF017632) | Não |
| Certificado UL grupo B para locais perigosos (hidrogénio) (EF017633) | Não |
| Certificado UL grupo C para locais perigosos (etileno) (EF017635) | Não |
| Certificado UL grupo D para locais perigosos (propano) (EF017636) | Não |
| Certificado UL grupo E para locais perigosos (poeiras metálicas) (EF017637) | Não |
| Certificado UL grupo F para locais perigosos (poeiras carbonáceas) (EF017638) | Não |
| Certificado UL grupo G para locais perigosos (poeiras não condutoras) (EF017639) | Não |
| Temperatura de operação (EF002393) | 0 °C |
| Possível montagem em calha (EF003972) | Não |
| Montagem na parede/montagem direta (EF007020) | Não |
| Adequado para funções de segurança (EF001597) | Não |
| Largura da parte frontal (EF003651) | 210 mm |
| Altura da frente (EF003652) | 135 mm |
| Profundidade incorporada (EF000218) | 33 mm |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XV-102-E8-70TWRC-10 Y7-153528 153528 FR_140017.pdf | 2 Mbytes |
|
Avaliações: (0) ▲
Não há comentários do produto ainda.
Adicionar avaliação
ocultar formulário
| Avaliação: |
|
| Nome: | |
| Email: | |
| Título: | |
| Opinión: | |
| Você recomendaria esse produto para comprar? | |
|
|
|
| Adicionar avaliação | |
Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
