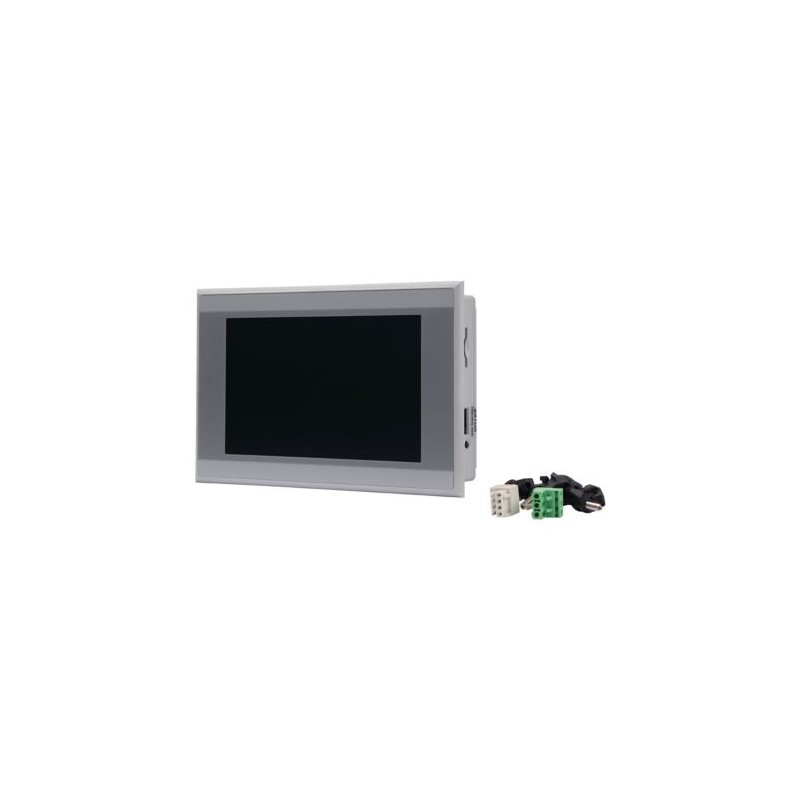

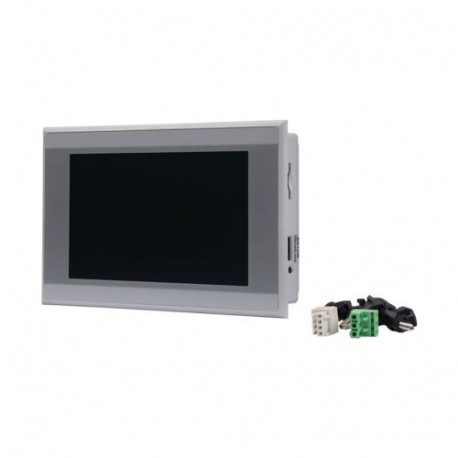

XV-102-E8-70TWRC-10 153528 Y7-153528 EATON ELECTRIC Terminal Tactil 7" Resistiva TFT Color Ethernet RS485 Pr..
XV-102-E8-70TWRC-10
153528
Y7-153528
EATON-MOELLER
Terminal Tactil, 7', Resistiva, TFT Color, Ethernet, RS485, Profibus DP,
Eaton XV-102 Touch panel, 24 V DC, 7z, TFTcolor, ethernet, RS485, profibus, SWDT, PLC
Interfaz de usuario, XV-102, Gama de productos: XV100 7z, Subgama: Pantalla táctil SmartWire-DT con controlador integrado (HMI PLC), Función: Coordinador SmartWire-DT, Descripción: Pantalla táctil XV100 con función PLC para placas de montaje empotradas, Coordinador para el sistema de comunicaciones SmartWire-DT, Características comunes de la serie de modelos: Interfaz Ethernet, Dispositivo USB, Host USB, Ranura para tarjeta SD, UL508, homologaciones cUL, Pantalla - Tipo: Pantalla a color, TFT, Tecnología táctil: Resistive-Touch, Número de colores: 64 k Colores, Resolución: WVGA, 800 x 480 píxeles, Formato vertical: sí, Diagonal de la pantalla: 7 pulgadas, Carcasa aislante y placa frontal, Sistema operativo: Windows CE 5.0 (licencia incluida), Licencia PLC: Licencia PLC incluida, Certificados de licencia para interfaces integradas: No necesario, Interfaces integradas: 1 x Ethernet 10/100 Mbps, 1 x RS485, 1 x Host USB 2.0, 1 x Dispositivo USB, 1 x PROFIBUS/MPI, 1 x SmartWire-DT, Tipo frontal: Frontal estándar con membrana estándar (totalmente cerrada), Utilización: Montaje empotrado, Ranuras: para tarjeta SD: 1, Automatización de la tarjeta de memoria: Opcionalmente con tarjeta SD -> n.º de artículo 139807, Tarjetas de comunicación enchufables (opcional): no, Sensor táctil: Vidrio con película, Disipación de calor: 9,5 W, Conexión a SmartWire-DT: sí, Grado de protección (IEC/EN 60529, EN50178, VBG 4): IP65 (en la parte delantera), IP20 (en la parte trasera)
Controladores industriales (PLC) > Panel gráfico
Terminales Táctiles HMI
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
productos relacionados
▲Comprados juntos habitualmente
▲Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton XV-102 Touch panel
Catalog Number
153528
EAN
7640130097636
Product Length/Depth
210 mm
Product Height
38 mm
Product Width
135 mm
Product Weight
0.66 kg
Certifications
CSA File No.: UL report applies to both US and Canada
CUL508
UL508
Certified by UL for use in Canada
EN 50178
IEC/EN 61131-2
CSA Class No.: none
IEC/EN 61000-6-4
IEC/EN 61131-2, CE
UL
UL Category Control No.: NRAQ
UL File No.: E205091
CULus
EN 60950
UL 60950
DNV GL
IEC/EN 61000-6-2
EAC
CUL508
UL508
Certified by UL for use in Canada
EN 50178
IEC/EN 61131-2
CSA Class No.: none
IEC/EN 61000-6-4
IEC/EN 61131-2, CE
UL
UL Category Control No.: NRAQ
UL File No.: E205091
CULus
EN 60950
UL 60950
DNV GL
IEC/EN 61000-6-2
EAC
Model Code
XV-102-E8-70TWRC-10
Características y funciones
Enclosure material
Plastic
Features
Overload proof
UL508, cUL approvals
USB device
Target and web visualization
Portrait format
Slot for SD card
USB Host
Fanless CPU and system cooling, natural convection-based passive cooling
Ethernet interface
UL508, cUL approvals
USB device
Target and web visualization
Portrait format
Slot for SD card
USB Host
Fanless CPU and system cooling, natural convection-based passive cooling
Ethernet interface
Fitted with:
Message system (incl. buffer and confirmation)
Alpha numeric keyboard
Message indication
Printer output
Color display
Recipes
SW interfaces
1 x RS485 (built-in interface)
Numeric keyboard
1 x USB device (built-in interface)
1 x PROFIBUS/MPI (built-in interface)
1 x USB host 2.0 (built-in interface)
1 x Ethernet 10/100 Mbps (built-in interfaces)
1 x SmartWire-DT (built-in interface)
MPI interface
Alpha numeric keyboard
Message indication
Printer output
Color display
Recipes
SW interfaces
1 x RS485 (built-in interface)
Numeric keyboard
1 x USB device (built-in interface)
1 x PROFIBUS/MPI (built-in interface)
1 x USB host 2.0 (built-in interface)
1 x Ethernet 10/100 Mbps (built-in interfaces)
1 x SmartWire-DT (built-in interface)
MPI interface
Functions
Additional software components, loadable
Process value representation (output) possible
Process default value (input) possible
SmartWire-DT coordination
Process value representation (output) possible
Process default value (input) possible
SmartWire-DT coordination
General
Battery runtime
Back-up of real-time clock: CR 2032 (190 mA/h), zero maintenance (soldered)
Degree of protection
IP20
IP20, rear
IP20, rear
Degree of protection (front side)
IP65
NEMA 4X
NEMA 4X
Fuse type
Built-in fuse (not accessible)
Lifespan
40,000 h (Service life of back-lighting)
Model
Insulating enclosure and front plate
Mounting method
Flush mounting - Inclination from vertical: ±45° (if using natural convection)
Flush mounting
Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18")
Flush mounting
Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18")
Product category
SmartWire-DT coordinators
Repetition rate
1 s
Residual ripple
≤ 5 % (input voltage)
RoHs conformity
Yes
Short-circuit protection
Yes, Short-circuit rating, SmartWire-DT supply voltage
No, external fuse FAZ Z3, Supply voltage UAux
No, external fuse FAZ Z3, Supply voltage UAux
Software
GALILEO, Visualization software, Engineering
EPAM, Visualization software, Engineering
XSOFT-CODESYS-2, Visualization software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
XSOFT-CODESYS-3, Visualization software, Engineering
XSOFT-CODESYS-3, PLC-Programming software, Engineering
EPAM, Visualization software, Engineering
XSOFT-CODESYS-2, Visualization software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
XSOFT-CODESYS-3, Visualization software, Engineering
XSOFT-CODESYS-3, PLC-Programming software, Engineering
Terminal capacity
24 - 16 AWG, solid or stranded
0.25 - 1.5 mm², flexible with ferrule
0.2 - 1.5 mm², solid
0.25 - 1.5 mm², flexible with ferrule
0.2 - 1.5 mm², solid
Type
Coordinator for the SmartWire-DT communications system
Voltage type
DC
Condiciones ambientales y mecánicas
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
Vibration resistance
According to IEC/EN 60068-2-6
Condiciones climáticas ambientales
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-20 °C
Ambient storage temperature - max
60 °C
Operating temperature - min
0 °C
Operating temperature - max
50 °C
Relative humidity
10 - 95 % (non-condensing)
Compatibilidad electromagnética
Voltage dips
≤ 10 ms from rated voltage (24 V DC)
≤ 10 ms, Bridging voltage dips
5 ms from undervoltage (19.2 V DC)
≤ 10 ms, Bridging voltage dips
5 ms from undervoltage (19.2 V DC)
Especificaciones eléctricas
Inrush current
12.5 A (for 6 ms)
Permissible voltage
35 V DC (for a duration of < 100 ms)
18.0 - 31.2 V DC, absolute with ripple
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
18.0 - 31.2 V DC, absolute with ripple
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
Power consumption
Max. 10 W
9.5 W total
2.5 W (USB Slave to USB Host)
7 W
9.5 W total
2.5 W (USB Slave to USB Host)
7 W
Rated control supply voltage
24 V DC (UPOW, -20 %/+25 %)
24 V DC (UAUX, -20 %/+25 %)
24 V DC (UAUX, -20 %/+25 %)
Rated operational current (Ie)
0.7 A
Rated operational voltage
24 V DC (power-supply - safety extra low voltage)
Typically UAUX -0.2 V (for 24 V DC slaves)
14.5 V (± 3 % - SmartWire-DT)
Typically UAUX -0.2 V (for 24 V DC slaves)
14.5 V (± 3 % - SmartWire-DT)
Supply current
3 A, Imax, Supply voltage UAux
If SmartWire-DT modules with a total power consumption > 0.7 A are connected, a power feeder module EU5C-SWD-PF2 has to be used; SmartWire-DT supply
0.7 A, Imax, SmartWire-DT supply
If contactors with a total power consumption > 3 A are connected, a power feeder module EU5C-SWD-PF1/2 has to be used, Supply voltage UAux
If SmartWire-DT modules with a total power consumption > 0.7 A are connected, a power feeder module EU5C-SWD-PF2 has to be used; SmartWire-DT supply
0.7 A, Imax, SmartWire-DT supply
If contactors with a total power consumption > 3 A are connected, a power feeder module EU5C-SWD-PF1/2 has to be used, Supply voltage UAux
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
20.4 VDC
Supply voltage at DC - max
28.8 VDC
Comunicación
Addressing
Address set automatically
Communication interface
PROFIBUS
SmartWire-DT master
SmartWire-DT master
Connection
SmartWire-DT blade terminal SWD4-8MF2
Connection to SmartWire-DT
Yes
Connection type
Push in terminals, Supply voltage
SWD: Plug, 8-pole
SWD: Plug, 8-pole
Data transfer rate
250 kBit/s, SmartWire-DT
125 kBit/s, SmartWire-DT
125 kBit/s, SmartWire-DT
Interfaces
USB 2.0 host (1.5 - 12 Mbit/s, not galvanically isolated)
Ethernet (100Base-TX/10Base-T)
USB 2.0 device (not galvanically isolated)
RS485
Ethernet (100Base-TX/10Base-T)
USB 2.0 device (not galvanically isolated)
RS485
LED indicator
Status indication of Supply voltage: LED
Status indication of SmartWire-DT master: Green and red LEDs
Status indication of SmartWire-DT network: Configurable green or red LED
Status indication of SmartWire-DT master: Green and red LEDs
Status indication of SmartWire-DT network: Configurable green or red LED
Number of slots
1 (for SD-Card)
Number of SmartWire-DT slaves
99
Protocol
PROFIBUS
MODBUS
Other bus systems
TCP/IP
EtherNet/IP
MODBUS
Other bus systems
TCP/IP
EtherNet/IP
Station
SmartWire-DT master, SmartWire-DT network
Pantalla
Display contrast ratio
300:1
Display lighting
LED
Dimmable via software
Dimmable via software
Display size
152 x 91 mm
Display type
Color display, TFT
Standard front with standard membrane (fully enclosed)
TFT
Standard front with standard membrane (fully enclosed)
TFT
Luminance intensity
250 cd/m²
Number of colors of the display
65536
Screen size (diagonal)
7 in
Touch technology
Resistive touch
Touch sensor (glass with foil), Resistive touch protective screen
Glass with film touch sensor
Touch sensor (glass with foil), Resistive touch protective screen
Glass with film touch sensor
Entrada/salida
Resolution
Seguridad
Explosion safety category for dust
ATEX dust-ex-protection, II 3D Ex II T70°C IP5x: Zone 22, Category 3D
ATEX dust-ex-protection, in relation to CE
ATEX dust-ex-protection, in relation to CE
Explosion safety category for gas
Explosion protection according to EN 61241-1
Explosion protection according to EN 60079-0
Explosion protection according to EN 13463_x
Explosion protection according to EN 60079-0
Explosion protection according to EN 13463_x
Potential isolation
Between UPow and 15 V SmartWire-DT supply voltage: no
Supply voltage UAUX: no
Power supply: no
Supply voltage UAUX: no
Power supply: no
Protection against polarity reversal
Yes
Yes, for supply voltage (Siemens MPI optional)
Yes, for supply voltage (Siemens MPI optional)
Sistema
Backup time
10 years, typ. (time at zero voltage)
Memory
32 kByte internal NVRAM (retained data)
SD Memory Card Slot: SDA Specification 1.00 (External)
64 MByte internal DRAM (OS, Program and data memory)
128 MByte internal NAND-Flash (can be used for data backup)
SD Memory Card Slot: SDA Specification 1.00 (External)
64 MByte internal DRAM (OS, Program and data memory)
128 MByte internal NAND-Flash (can be used for data backup)
Memory capacity
64,000 kByte
Operating system
Windows CE 5.0 (license included)
Processor
RISC CPU, 32 Bit, 400 MHz
Verificación del diseño
Equipment heat dissipation, current-dependent Pvid
9.5 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
9.5 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Tensión de alimentación 50 Hz CA (EF007532) | 0 V |
| Tensión de alimentación 60 Hz CA (EF007533) | 0 V |
| Tensión de alimentación CC (EF007534) | 20.4 V |
| Tipo de tensión de alimentación (EF002991) | CC |
| Consumo de energía (EF000346) | 10 W |
| Número de interfaces HW Ethernet industrial (EF003020) | 1 |
| Número de interfaces PROFINET (EF006932) | 0 |
| Número de interfaces HW RS232 (EF003021) | 0 |
| Número de interfaces HW RS422 (EF003022) | 0 |
| Número de interfaces HW RS485 (EF003023) | 1 |
| Número de interfaces HW en serie TTY (EF003024) | 0 |
| Número de interfaces HW USB (EF003025) | 2 |
| Número de interfaces HW en paralelo (EF003026) | 0 |
| Número de interfaces HW sin cables (EF006933) | 0 |
| Número de interfaces HW Otras (EF003027) | 1 |
| Con interfaces SW (EF003121) | Sí |
| Soporta el protocolo EtherCAT (EF017564) | No |
| Soporta el protocolo TCP/IP (EF003050) | Sí |
| Soporta el protocolo PROFIBUS (EF003052) | Sí |
| Soporta el protocolo CAN (EF003053) | No |
| Soporta el protocolo INTERBUS (EF003054) | No |
| Soporta el protocolo ASI (EF003051) | No |
| Soporta protocolo KNX (EF003055) | No |
| Soporta el protocolo Modbus (EF003057) | Sí |
| Soporta el protocolo de autopista de datos (EF003058) | No |
| Soporta el protocolo DeviceNet (EF003059) | No |
| Soporta el protocolo SUCONET (EF003060) | No |
| Soporta el protocolo LON (EF003017) | No |
| Soporta el protocolo PROFINET IO (EF007525) | No |
| Soporta el protocolo PROFINET CBA (EF007524) | No |
| Soporta el protocolo SERCOS (EF006657) | No |
| Soporta el protocolo Foundation Fieldbus (EF007522) | No |
| Soporta el protocolo Ethernet/IP (EF007521) | Sí |
| Soporta el protocolo AS-Interface Safety at Work (EF007519) | No |
| Soporta el protocolo DeviceNet Safety (EF007520) | No |
| Soporta el protocolo de seguridad INTERBUS (EF006662) | No |
| Soporta el protocolo PROFIsafe (EF007526) | No |
| Soporta el protocolo SafetyBUS p (EF007527) | No |
| Soporta el protocolo para otros sistemas bus (EF003062) | Sí |
| Estándar inalámbrico Bluetooth (EF007178) | No |
| Estándar de radio WLAN 802.11 (EF007179) | No |
| Estándar de radio GPRS (EF008523) | No |
| Estándar de radio GSM (EF008524) | No |
| Estándar de radio UMTS (EF008525) | No |
| Maestro de enlace E/S (EF007298) | No |
| Ejecución de la pantalla (EF008244) | TFT |
| Con pantalla a color (EF003097) | Sí |
| Número de colores de la pantalla (EF003098) | 65536 |
| Número de niveles de la escala de grises/azul de la pantalla (EF008515) | 0 |
| Tamaño de la pantalla (EF002032) | 7 inch |
| Número de píxeles, horizontal (EF003099) | 800 |
| Número de píxeles, vertical (EF003100) | 480 |
| Memoria de proyecto/memoria de usuario utilizable (EF003108) | 64000 kByte |
| Con teclado numérico (EF003105) | Sí |
| Con teclado alfanumérico (EF003106) | Sí |
| Número de teclas de función, programables (EF003103) | 0 |
| Número de teclas con LED (EF009259) | 0 |
| Número de teclas "sistema" (EF009260) | 1 |
| Tecnología táctil (EF010884) | Táctil resistivo |
| Con indicación de mensajes (EF003109) | Sí |
| Con sistema de mensajes (incluyendo búfer y acuse de recibo) (EF003110) | Sí |
| Posibilidad de representación de valor de proceso (salida) (EF003111) | Sí |
| Posibilidad de especificación de valor de proceso (entrada) (EF003112) | Sí |
| Con recetas (EF003113) | Sí |
| Número de niveles, protección con contraseña (EF003114) | 200 |
| Con salida de impresora (EF003115) | Sí |
| Número de idiomas en línea (EF003116) | 100 |
| Componentes de software adicionales, cargables (EF003117) | Sí |
| Grado de protección (IP), frontal (EF003118) | IP65 |
| Grado de protección NEMA, parte frontal (EF011961) | 4X |
| Certificado para áreas peligrosas UL clase I (EF017622) | No |
| Certificado para UL clase II (EF017625) | No |
| Certificado para áreas peligrosas UL Clase III (EF017627) | No |
| Certificado para áreas peligrosas UL División 1 (EF017628) | No |
| Certificado para áreas peligrosas UL División 2 (EF017629) | No |
| Certificado para áreas peligrosas grupo A (acetileno) (EF017632) | No |
| Certificado para áreas peligrosas grupo B (hidrógeno) (EF017633) | No |
| Certificado para áreas peligrosas grupo C (etileno) (EF017635) | No |
| Certificado para áreas peligrosas grupo D (propano) (EF017636) | No |
| Certificado para áreas peligrosas grupo E (polvos metálicos) (EF017637) | No |
| Certificado para áreas peligrosas grupo F (polvos carbonosos) (EF017638) | No |
| Certificado para áreas peligrosas grupo G (polvos no conductores) (EF017639) | No |
| Temperatura de operatividad (EF002393) | 0 °C |
| Montaje en carril posible (EF003972) | No |
| Montaje en pared/directo posible (EF007020) | No |
| Apto para funciones de seguridad (EF001597) | No |
| Ancho del frente (EF003651) | 210 mm |
| Altura del frente (EF003652) | 135 mm |
| Profundidad de instalación (EF000218) | 33 mm |
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATALOGO EATON AUTOMATIZACION ES.pdf | 19 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XV-102-E8-70TWRC-10 Y7-153528 153528 FR_140017.pdf | 2 Mbytes |
|
Opiniones: (0) ▲
Ningún comentario por el momento.
Añadir comentario
ocultar
| Valoración: |
|
| Nombre: | |
| Email: | |
| Título: | |
| Opinión: | |
| ¿Recomienda la compra de este producto? | |
|
|
|
| Añadir comentario | |
Todas las valoraciones que recibimos de los artículos que ofrecemos son reales y están verificadas. Un pequeño gesto, pero de mucho valor. Por eso, te agradecemos ese minuto que inviertes en dejarnos tu opinión y calificación sobre los productos, porque nos ayuda a seguir mejorando y a ofrecerte un servicio de todavía mayor calidad.
