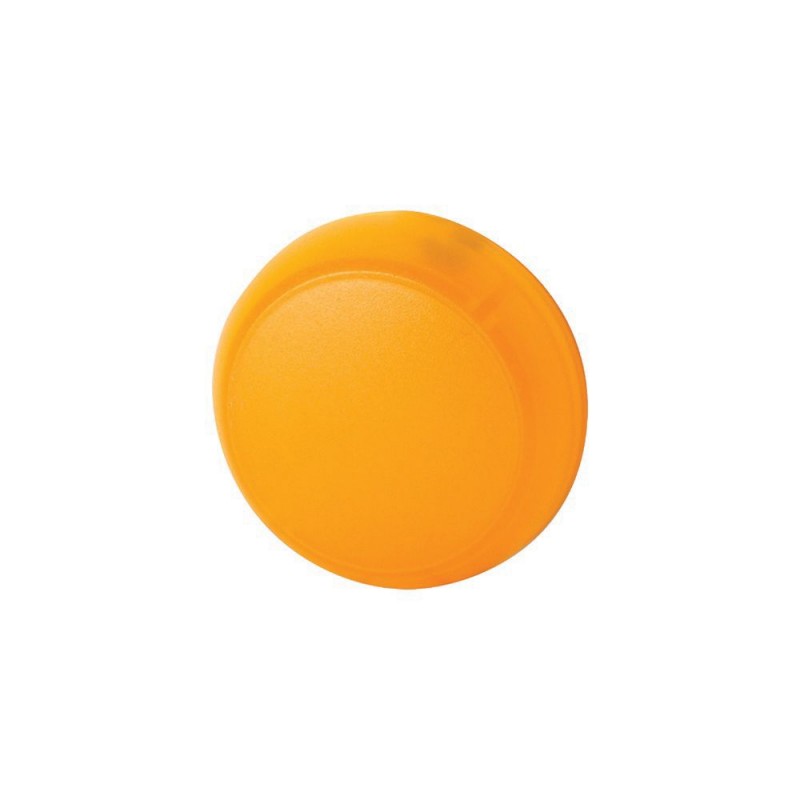

M22-XL-A 118740 EATON MOELLER M22-XL-AQ lentilha, luz, plana, âmbar Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

M22-XL-A 118740 EATON MOELLER M22-XL-AQ lentilha, luz, plana, âmbar

M22-XL-A

118740

EATON - MOELLER

10

Disponível

Envio hoje

M22-XL-AQ lentilha, luz, plana, âmbar

Mais detalhes


Sinalização Colunas Luminosas Balizas

Flush Mounting Panels, Shrouds - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

Quantidade Preço
10+$1.73
100+$1.50
200+$1.45
290+$1.43
390+$1.41
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Produtos relacionados

Mais informação



Delivery programme
Product range
  RMQ-Titan (drilling dimensions 22.5 mm)
Basic function
  Accessories
Basic function accessories
  Lenses for indicator lights
Single unit/Complete unit
  Single unit
Description

General
Ambient temperature

Open
 °C-25 - +70
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Please enquire
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  Not applicable.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Hood/lens for circuit control devices (EC001072)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Dome, refractor ([email protected] [AKF049011])
Colour lens
  -
Lens shape
  Round
Construction type
  Flat
Labelled
  No
Built-in diameter
 mm22
Diameter
 mm29,6
Width
 mm0
Height
 mm8
CAD data
>Product-specific CAD data
>3D Preview

Datasheet - PDF

Título: Língua: Tamanho: Tipo:
pdf-M22-XL-AQ Lens, indicator light, flush, amber - EATON - M22-XL-A - 118740 English 132 Kbytes pdf-M22-XL-AQ Lens, indicator light, flush, amber - EATON - M22-XL-A - 118740
