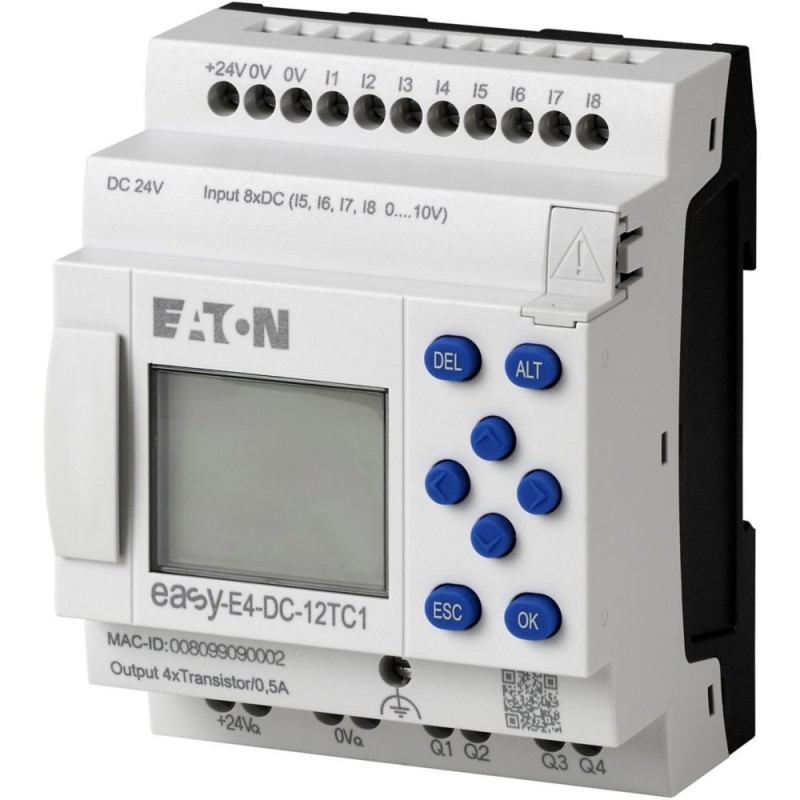

EASY-E4-DC-12TC1

197213

Y7-197213

EATON-MOELLER

197213 FÁCIL-E4-DC-12TC1

Nano Controlador fácil E4; Aparelho de base; 24 V DC; 8º ED; 4 DP; Transistor;

Eaton Moeller® series EASY Control relays easyE4 with display (expandable, Ethernet), 24 V DC, Inputs Digital: 8, of which can be used as analog: 4, screw terminal

Relé de controle eletrônico Easy-E4 com tensão de alimentação de 24 VCC. Possui 8 entradas digitais de 24VDC, das quais 4 entradas também podem ser utilizadas como entradas analógicas e 4 entradas como contador rápido. O relé de controle easy-E4 possui 4 saídas de transistor para 24 VCC. O relé de controle está equipado com display, relógio, interface Ethernet integrada e terminais de parafuso. Este relé de controle easy-E4 pode ser expandido com as extensões de entrada/saída digital da série easyE4. Um fornecimento com seu próprio programa de usuário é possível através do artigo (Y7) -2010781 EASY-COMBINATION.

Mais detalhes


Controladores industriais (PLC) > Módulo lógico

Easy E4 Nanocontroladores

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $246.08
Preço unitário: $246.08
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series EASY Control relay
Catalog Number
197213
EAN
4015081939466
Product Length/Depth
58 mm
Product Height
90 mm
Product Width
72 mm
Product Weight
0.2 kg
Compliances
Eaton supports the product until its end of life
Certifications
CSA-C22.2 No. 61010
EN 61010
IEC/EN 61000-6-2
IEC 60068-2-27
IEC 60068-2-30
IEC/EN 61000-4-2
CULus per UL 61010
IEC 60068-2-6
IEC/EN 61000-6-3
IEC/EN 61131-2
EN 50178
UL Listed
UL Category Control No.: NRAQ, NRAQ7
UL File No.: E205091
DNV GL
CE
UL hazardous location class I
UL hazardous location division 2
UL hazardous location group A (acetylene)
UL hazardous location group B (hydrogen)
UL hazardous location group C (ethylene)
UL hazardous location group D (propane)
Catalog Notes
Accuracy of the real-time clock depending on ambient air temperature - fluctuations of up to ± 5 s/day (± 0.5 h⁄year) are possible
Model Code
EASY-E4-DC-12TC1

Especificações do produto

Used with
easyE4
Type
easyE4 base device
Features
Parallel connection of transistor outputs with resistive load, inductive load with external suppressor circuit, combination within a group - Group 1: Q1 to Q4
Networkable (Ethernet)
Expandable
Display indication of 6 lines x 16 characters
Air discharge
8 kV
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Cable type
CAT5
Fitted with:
Keypad
Display
Real time clock
Timer
Operating frequency
Dependent on the cycle time of the basic device
Dependent on the cycle- and transmission-time of the expansion devices
Depending on the suppressor circuit (Inductive load to EN 60947-5-1, With external suppressor circuit, Max. switching frequency, max. duty factor)
Pollution degree
2
Accuracy
± 2 %, (I7, I8) ± 0.12 V, of actual value, within a single device (Analog Inputs)
± 3 %, of actual value, two easy devices (Analog Inputs)
± 2 s/day, Real-time clock to inputs (± 0.2 h⁄Year)
± 1 %, Repetition accuracy of timing relays (of values)
Burst impulse
According to IEC/EN 61000-4-4
2 kV, Supply cable
2 kV, Signal cable
Air pressure
795 - 1080 hPa (operation)
Category (EN 954-1)
None
Explosion safety category for dust
None
Environmental conditions
Condensation: prevent with appropriate measures
Clearance in air and creepage distances according to EN 50178, EN 61010-2-201, UL61010-2-201, CSA-C22.2 NO. 61010-2-201
Indication
LCD-display used as Output status indication of Transistor outputs
LCD-display used as status indication of Digital inputs 24 V DC
Input
Voltage (DC)
Output voltage
U = Uₑ - 1 V (signal 1 at Iₑ = 0.5 A, transistor outputs)
Max. 2.5 V (at status 0 per channel, transistor outputs)
Explosion safety category for gas
None
Mounting method
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Front build in possible
Wall mounting/direct mounting
Rail mounting possible
Screwdriver size
3.5 x 0.8 mm, Terminal screw
Voltage type
DC
Mounting position
Vertical
Horizontal
Output
Parallel connection of max. 4 Transistor outputs
2 A, Max. total current, Outputs
4 Transistor Outputs
Voltage
Current
Contact discharge
6 kV
Base type
Yes
Safety performance level (EN ISO 13849-1)
None
SIL (IEC 61508)
None
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Conventional thermal current ith of auxiliary contacts (1-pole, open)
0.5 A
Display temperature - max
55 °C
Display temperature - min
0 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Number of HW-interfaces (industrial ethernet)
1
Number of HW-interfaces (other)
0
Number of HW-interfaces (parallel)
0
Number of HW-interfaces (RS-232)
0
Number of HW-interfaces (RS-422)
0
Number of HW-interfaces (RS-485)
0
Number of HW-interfaces (serial TTY)
0
Number of HW-interfaces (USB)
0
Number of HW-interfaces (wireless)
0
Overvoltage category
III
Duty factor
100 % (Inductive load to EN 60947-5-1, With external suppressor circuit)
100 % (Inductive load to EN 60947-5-1, Without external suppressor circuit, T0.95 = 15 ms, R = 48 Ω, L = 0.24 H)
100 % (Inductive load to EN 60947-5-1, Without external suppressor circuit, DC-13, T0.95 = 72 ms, R = 48 Ω, L = 1.15 H)
Software
EASYSOFT-SWLIC/easySoft7
Surge rating
0.5 kV, Supply cables, symmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5, power pulses (Surge), EMC
1 kV, Supply cables, asymmetrical, power pulses (Surge), EMC
Cable length
≤ 30 m, screened, Analog inputs
100 m, unscreened, Digital inputs 24 V DC
Conversions
Each CPU cycle, Analog inputs
Electromagnetic fields
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
10 V/m at 0.8 - 1.0 GHz (according to IEC EN 61000-4-3)
1 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3)
Display type
Monochrome
Protection against polarity reversal
For transistor outputs (Caution: A short circuit will result if 0 V/earth is applied to the outputs in the event that the supply voltage is connected to the wrong poles)
Yes, for supply voltage (Siemens MPI optional)
Number of inputs (analog)
0
4
Connection type
Screw terminal
Ethernet: RJ45 plug, 8-pole
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Immunity to line-conducted interference
10 V (according to IEC/EN 61000-4-6)
Radio interference class
Class B (EN 61000-6-3)
Number of outputs (digital)
4
Data transfer rate
10/100 MBit/s
Relative humidity
5 - 95 % (IEC 60068-2-30, IEC 60068-2-78)
Degree of protection
IP20
Delay time
0.015 ms typ., Digital inputs 24 V DC (I1 - I8), Delay time from 1 to 0, Debounce OFF
20 ms typ., Digital inputs 24 V DC (I1 - I8), Delay time from 1 to 0, Debounce ON
0.015 ms typ., Digital inputs 24 V DC (I1 - I8), Delay time from 0 to 1, Debounce OFF
20 ms typ., Digital inputs 24 V DC (I1 - I8), Delay time from 0 to 1, Debounce ON
Residual current
0.1 mA (on signal "1" per channel)
Residual ripple
5 % (transistor outputs)
≤ 5 %
Rapid counter inputs
1:1 (Pulse pause ratio)
10 kHz, Counter frequency
≤ 20 m (cable length, screened)
-2147483648 - 2147483647 (value range)
Square (pulse shape)
Number: 4 (I1, I2, I3, I4 - Digital inputs 24 V DC)
Rated operational current (Ie)
Max. 0.5 A at signal „1” DC per channel
Inrush current
12.5 A (for 6 ms)
Insulation resistance
According to EN 50178, EN 61010-2-201, UL61010-2-201, CSA-C22.2 NO. 61010-2-201
Heat dissipation
3.4 W (at 24 V DC)
Functions
Thermal cutout
Incremental counter
Pulse pause ratio: 1:1
Pulse shape: Square
Value range: -2147483648 to +2147483647
Number of counter inputs: 2 (I1 + I2, I3 + I4)
Signal offset: 90°
Counter frequency: ≤ 5 kHz
Short-circuit current
6.8 A, Transistor outputs
Vibration resistance
10 - 57 Hz, 0.15 mm constant amplitude
57 - 150 Hz, 2 g constant acceleration
According to IEC/EN 60068-2-6
Incremental encoder
Cable length: ≤ 20 m (screened)
Input impedance
13.3 kΩ
Input current
1 mA (Analog inputs)
3.3 mA (I1 - I4, at 24 V DC, at signal 1)
2.2 mA (I5 - I8, at 24 V DC, at signal 1)
80 mA
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts
Frequency counter
Cable length: ≤ 20 m (screened, Digital inputs 24 V DC)
Number: 4 (I1, I2, I3, I4 - Digital inputs 24 V DC)
Pulse pause ratio: 1:1 (Digital inputs 24 V DC)
Pulse shape: Square (digital inputs 24 V DC)
Counter frequency: 5 kHz (Digital inputs 24 V DC)
Input voltage
Status 0: ≤ 15 V DC (I1 - I4, Digital inputs, 24 V DC)
Status 0: ≤ 8 V DC (I5 - I8, Digital inputs, 24 V DC)
Status 1: ≥ 15 V DC (I1 - I4, Digital inputs, 24 V DC)
Signal 0: ≤ 5 V DC (I1 - I8, Digital inputs, 24 V DC)
Short-circuit tripping current
0.7 ≤ Ie ≤ 1.7 per output, For Ra ≤ 10 mΩ, Depending on number of active channels and their load, Transistor outputs
Lamp load
Max. 3 W (without Rv per channel)
Signal range
0 - 10 V DC, Analog inputs
Supply current
24/44 mA, Normally⁄max., On 1 signal, Transistor outputs
18/32 mA, Normally⁄max., On 0 signal, Transistor outputs
Utilization factor
0.25 (Inductive load to EN 60947-5-1, Without external suppressor circuit, DC-13, T0.95 = 72 ms, R = 48 Ω, L = 1.15 H)
0.25 (Inductive load to EN 60947-5-1, Without external suppressor circuit, T0.95 = 15 ms, R = 48 Ω, L = 0.24 H)
1 (Inductive load to EN 60947-5-1, With external suppressor circuit)
Potential isolation
Between Transistor outputs and Ethernet: yes
Between Digital inputs 24 V DC and Ethernet: yes
Between Transistor outputs and control buttons: yes
Between Transistor outputs and Power supply: yes
Between Analog inputs and Outputs: yes
Between Transistor outputs and expansion devices: yes
Between Digital inputs 24 V DC and expansion devices: yes
Between Analog inputs and expansion devices: yes
Between Digital inputs 24 V DC: no
Between Transistor outputs and Inputs: yes
Between Transistor outputs: no
Between Digital inputs 24 V DC and Power supply: no
Between Analog inputs: no
Between Analog inputs and Memory card: no
Between Transistor outputs and Memory card: yes
Between Digital inputs 24 V DC and Outputs: yes
Between Analog inputs and Ethernet: yes
Between Digital inputs 24 V DC and Memory card: no
Between Analog inputs and Power supply: no
Number of inputs (digital)
8
Power loss
2 W
Voltage dips
20 ms
≤ 10 ms, Bridging voltage dips
Protocol
TCP/IP
MODBUS
Number of interfaces (PROFINET)
0
Number of outputs (analog)
0
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
2 W
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 60 Hz - max
0 VAC
Supply voltage at AC, 60 Hz - min
0 VAC
Supply voltage at DC - max
28.8 VDC
Supply voltage at DC - min
20.4 VDC
Switching current
0.5 A
Product category
Control relays easyE4
Resolution
Power consumption
2 W
Rated operational voltage
24 V DC (-15 %/+ 20 % - power supply)
24 V DC (transistor outputs)
20.4 - 28.8 V DC (Transistor outputs)
24 V DC (digital inputs)
20.4 - 28.8 V DC
Short-circuit protection
≥ 1A (T), Fuse, Power supply
Yes, electronic (Q1 - Q4), Transistor outputs
Terminal capacity
0.2 - 4 mm² (AWG 22 - 12), solid
0.2 - 2.5 mm² (22 - 12 AWG), flexible with ferrule
Tightening torque
0.6 Nm, Screw terminals

ETIM for 197213 PLC´s (EC001417)
Característica Valor
Tensão de alimentação AC 50 Hz (EF007532) 0 V
Tensão de alimentação AC 60 Hz (EF007533) 0 V
Tensão de alimentação DC (intervalo) (EF007534) 20.4 V
Tipo de tensão de alimentação (EF002991) DC
Corrente de comutação (EF000188) 0.5 A
Consumo (potência em VA) (EF000346) 2 W
Número de entradas analógicas (EF001994) 0
Número de saídas analógicas (EF001995) 0
Número de entradas digitais (EF001992) 8
Número de saídas digitais (EF001993) 4
Com saída a relé (EF003198) Não
Número de interfaces industriais HW Ethernet industrial (EF003020) 1
Número de interfaces PROFINET (EF006932) 0
Número de interfaces HW RS-232 (EF003021) 0
Número de interfaces HW RS-422 (EF003022) 0
Número de interfaces HW RS-485 (EF003023) 0
Número de interfaces HW de série TTY (EF003024) 0
Número de interfaces HW USB (EF003025) 0
Número de interfaces HW paralelas (EF003026) 0
Número de interfaces HW sem fio (EF006933) 0
Número de interfaces HW outras (EF003027) 0
Com interface ótica (EF003028) Não
Suporta protocolo EtherCAT (EF017564) Não
Suporta o protocolo TCP/IP (EF003050) Sim
Suporta o protocolo PROFIBUS (EF003052) Não
Suporta o protocolo CAN (EF003053) Não
Suporta o protocolo INTERBUS (EF003054) Não
Suporta o protocolo ASI (EF003051) Não
Suporta o protocolo KNX (EF003055) Não
Suporta o protocolo MODBUS (EF003057) Sim
Suporta o protocolo Data-Highway (EF003058) Não
Suporta o protocolo DeviceNet (EF003059) Não
Suporta o protocolo SUCONET (EF003060) Não
Suporta protocolo LON (EF003017) Não
Suporta o protocolo PROFINET IO (EF007525) Não
Suporta o protocolo PROFINET CBA (EF007524) Não
Suporta o protocolo SERCOS (EF006657) Não
Suporta o protocolo o Foundation Fieldbus (EF007522) Não
Suporta o protocolo Ethernet/IP (EF007521) Não
Protocolo de suporte à segurança da interface AS no trabalho (EF007519) Não
Suporta o protocolo DeviceNet Safety (EF007520) Não
Suporta o protocolo INTERBUS-Safety (EF006662) Não
Suporta o protocolo PROFIsafe (EF007526) Não
Suporta o protocolo SafetyBUS p (EF007527) Não
Suporta o protocolo outros sistemas de barramento (EF003062) Não
Rádio padrão Bluetooth (EF007178) Não
Rádio padrão WLAN 802.11 (EF007179) Não
Rádio padrão GPRS (EF008523) Não
Rádio padrão GSM (EF008524) Não
UMTS padrão de rádio (EF008525) Não
Mestre de Link IO (EF007298) Não
Redundância (EF003156) Não
Com display (EF000458) Sim
Grau de proteção (IP) (EF005474) IP20
Dispositivo básico (EF007279) Sim
Expansível (EF000119) Sim
Dispositivo de expansão (EF007163) Não
Com temporizador (EF000256) Sim
Possível montagem em calha (EF003972) Sim
Montagem na parede/montagem direta (EF007020) Sim
Construção frontal possível (EF007016) Sim
Possível montagem em rack (EF007018) Não
Adequado para funções de segurança (EF001597) Não
SIL de acordo com IEC 61508 (EF009889) Nenhum
Nível de desempenho de acordo com EN ISO 13849-1 (EF007399) Nenhum
Equipamento associado (Ex ia) (EF004141) Não
Equipamento associado (Ex ib) (EF004142) Não
Categoria de segurança contra explosão de gás (EF003997) Nenhum
Categoria de segurança contra explosão para poeira (EF003998) Nenhum
Certificado UL classe I para locais perigosos (EF017622) Sim
Certificado UL classe II para locais perigosos (EF017625) Não
Certificado UL classe III para locais perigosos (EF017627) Não
Certificado UL divisão I para locais perigosos (EF017628) Não
Certificado UL divisão II para locais perigosos (EF017629) Sim
Certificado UL grupo A para locais perigosos (acetileno) (EF017632) Sim
Certificado UL grupo B para locais perigosos (hidrogénio) (EF017633) Não
Certificado UL grupo C para locais perigosos (etileno) (EF017635) Sim
Certificado UL grupo D para locais perigosos (propano) (EF017636) Sim
Certificado UL grupo E para locais perigosos (poeiras metálicas) (EF017637) Não
Certificado UL grupo F para locais perigosos (poeiras carbonáceas) (EF017638) Não
Certificado UL grupo G para locais perigosos (poeiras não condutoras) (EF017639) Não
Largura (EF000008) 72 mm
Altura (EF000040) 90 mm
Profundidade (EF000049) 58 mm

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON EASY E4 EN.pdf 2 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
EASY-E4-DC-12TC1 Y7-197213 197213 EN_199507.pdf 2 Mbytes EASY-E4-DC-12TC1 Y7-197213 197213 EN_199507.pdf

Avaliações: (0) ▲

Não há comentários do produto ainda.

Adicionar avaliação
Adicionar avaliação
ocultar formulário
Avaliação:
Nome:
Email:
Título:
Opinión:
Você recomendaria esse produto para comprar?
  Captcha
  Adicionar avaliação

Últimas opiniões dos nossos clientes

Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
