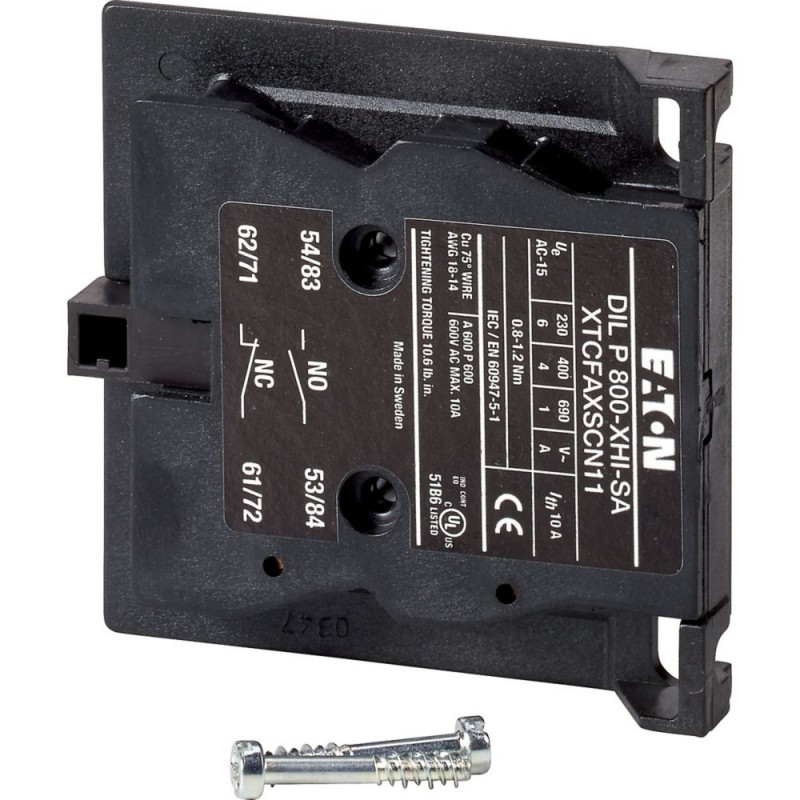

DILP800-XHI-SA 207471 XTCFAXSCN11 EATON ELECTRIC XTCFAXSCN11 Contato Auxiliar Bloco Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

DILP800-XHI-SA 207471 XTCFAXSCN11 EATON ELECTRIC XTCFAXSCN11 Contato Auxiliar Bloco

DILP800-XHI-SA

207471

XTCFAXSCN11

EATON-MOELLER

XTCFAXSCN11 Contato Auxiliar Bloco

Contatos Auxiliares 1 NO + 1 NC Conexão de Parafuso Lateral Externo

Módulo de contato auxiliar, ITH= 16 A, 1 N/A, 1 NF, montagem lateral, terminais com mola, DILP

Módulo de contato auxiliar, Função: para aplicações padrão, Tecnologia de conexão: Terminais com mola, Corrente nominal de operação AC-15 220 V 230 V 240 V: Ie= 4 A, Corrente nominal de operação AC-15 380 V 400 V 415 V: Ie= 4 A, Contatos N/O = Normalmente aberto: 1 N/O, Contatos N/A = Normalmente fechado: 1 NF, Tipo de montagem: Montagem lateral, Para utilização com: DILP250..., DILP315..., DILP500..., DILP630..., DILP800..., Tipo: Contactos auxiliares de montagem lateral

Mais detalhes


Aparelhos elétricos de baixa tensão > Bloco de contatos auxiliares

Contatores mais de 170 A

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

* Este artigo pode estar obsoleto. Se você estiver interessado, insira seu e-mail e informaremos se há unidades disponíveis. Caso não existam mais, um dos nossos técnicos procurará uma alternativa fornecivel com características semelhantes.

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series DILP auxiliary contact module
Catalog Number
207471
EAN
4015082074715
Product Length/Depth
70 mm
Product Height
70 mm
Product Width
13 mm
Product Weight
0.05 kg
Certifications
UL
UL 508
CSA
CSA-C22.2 No. 14-05
VDE 0660
IEC/EN 60947
IEC/EN 60947-4-1
UL Category Control No.: NLDX
CE
CSA File No.: LR72236
UL File No.: E29096
Model Code
DILP800-XHI-SA

Features Functions

Functions
For standard applications
Electric connection type
Screw connection

General

Lifespan, electrical
500,000 Operations (at 230 V, AC-15, 3 A)
Model
Top mounting
Mounting method
Side mounting
Overvoltage category
III
Pollution degree
3
Rated impulse withstand voltage (Uimp)
6000 V
6000 V AC
Type
Side-mounting auxiliary contacts

Climatic environmental conditions

Ambient operating temperature - min
-40 °C
Ambient operating temperature - max
70 °C
Ambient operating temperature (enclosed) - min
25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
6 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
4 A
Rated operational current (Ie) at AC-15, 500 V
1 A
Rated insulation voltage (Ui)
690 V
Rated operational voltage (Ue) at AC - max
690 V

Short-circuit rating

Short-circuit protection rating
Max. 10 A gG/gL, Fuse, Without welding, Auxiliary contacts
Short-circuit protection rating without welding
10 A gG/gL, 500 V, Max. Fuse, Contacts

Conventional thermal current Ith

Conventional thermal current ith at 60°C (3-pole, open)
16 A

Switching capacity

Switching capacity (auxiliary contacts, pilot duty)
A600, AC operated (UL/CSA)
N600, DC operated (UL/CSA)

Communication

Connection
Screw terminals

Contacts

Control circuit reliability
λ < 5 x 1/10⁷ (1 failure at 2,000,000 operations for Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1

Safety

Safe isolation
1000 V AC, Between coil and auxiliary contacts, According to EN 61140
400 V AC, Between auxiliary contacts, According to EN 61140

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.2 W
Rated operational current for specified heat dissipation (In)
6 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 207471 Componentes industriais para Baixa Tensão (EC000041)
Característica Valor
Número de contatos como inversores (EF008257) 0
Número de contatos como contato normalmente aberto (EF008256) 1
Número de contatos como contato normalmente fechado (EF008255) 1
Número de comutadores de sinal de erro (EF007613) 0
Corrente nominal de operação Ie em AC-15, 230 V (EF001385) 6 A
Acabamento da conexão elétrica (EF003961) Ligação com parafuso
Modelo (EF000010) Clip-on
Método de montagem (EF000003) Montagem lateral
Suporte da lâmpada (EF000048) Nenhum

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DILP800-XHI-SA XTCFAXSCN11 207471 DE_207471.pdf 117 Kbytes DILP800-XHI-SA XTCFAXSCN11 207471 DE_207471.pdf
