DA1-32060FB-B20C 197490 Y7-197490 EATON ELECTRIC 197490 DA1-32060FB-B20C
DA1-32060FB-B20C
197490
Y7-197490
EATON-MOELLER
197490 DA1-32060FB-B20C
Conversor de Frequência Ent: 3 x 230 V Sal: 3 x 230 V 60 A 15kW

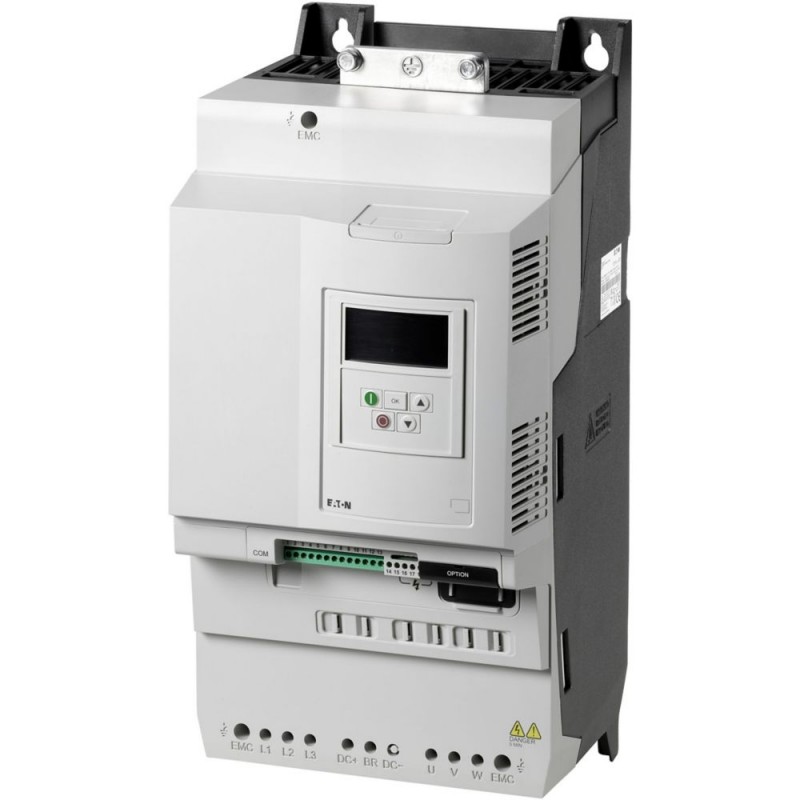

Eaton DA1 Frequency inverter, 230 V AC, 3-phase, 61 A, 15 kW, IP20/NEMA 0, Radio interference suppression filter, Additional PCB protection, DC link choke, FS5
Inversor de frequência, Referência do grupo de peças (por exemplo, DIL): DA1, Tensão nominal de operação: UE = 230 V CA, 3 fases, 240 V CA, 3 fases, Tensão de saída com Ve: U2 = 230 V CA, 3 fases, 240 V CA, 3 fases, Tensão de rede (50/60 Hz): LSN = 200 (-10%) - 240 (+10%) V, Corrente nominal de operação Com 150% de sobrecarga: Ie = 61 A, Nota: Corrente nominal de funcionamento a uma frequência de comutação de 8 kHz e uma temperatura do ar ambiente de +50 °C, Nota: Ciclo de sobrecarga de 60 s a cada 600 s, Potência nominal do motor atribuída Nota: para motores assíncronos trifásicos de 4 pólos, com ventilação interna e externa normal com 1500 rpm-1 a 50 Hz ou 1800 min-1 a 60 Hz, Ciclo de sobrecarga de 60 s a cada 600 s, a 230 V, 50 Hz, Potência nominal do motor 150 % Sobrecarga: P = 15 kW, 150 % Sobrecarga: IM = 61 A, Potência nominal do motor Nota: a 220 - 240 V, 60 Hz, Potência nominal do motor 150 % Sobrecarga: P = 20 HP, Potência nominal do motor 150 % Sobrecarga: IM = 54 A, Grau de proteção: IP20/NEMA 0, Interface/fieldbus (integrado): OP-Bus (RS485)/Modbus RTU, CANopen®, Conexão Fieldbus (opcional): Ethernet IP, DeviceNet, PROFIBUS, PROFINET, Modbus-TCP, EtherCAT, SmartWire-DT, Equipado com: Filtro de supressão de interferência de rádio, Chopper de freio, Proteção adicional de PCB, display OLED, estrangulamento de link DC, Tamanho da estrutura: FS5, Normas: Requisitos gerais: IEC/EN 61800-2, Requisitos EMV: EEC/EN 61800-3, Requisitos de segurança: IEC/EN 61800-5-1
Aparelhos elétricos de baixa tensão > Conversor de frequência inferior a 1 kV
Conversores de Frequência Power XL
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton DA1 Variable frequency drive
Catalog Number
197490
EAN
4015081940653
Product Length/Depth
261 mm
Product Height
485 mm
Product Width
234 mm
Product Weight
18.2 kg
Certifications
UL 508C
UL Category Control No.: NMMS, NMMS7
IEC/EN61800-3
IEC/EN 61800-3
Certified by UL for use in Canada
Safety: EN 61800-5-1: 2003
UL
UL report applies to both US and Canada
CUL
CE
IEC/EN61800-5
EAC
RCM
UkrSEPRO
UL File No.: E172143
IEC/EN 61800-2
RoHS, ISO 9001
UL Category Control No.: NMMS, NMMS7
IEC/EN61800-3
IEC/EN 61800-3
Certified by UL for use in Canada
Safety: EN 61800-5-1: 2003
UL
UL report applies to both US and Canada
CUL
CE
IEC/EN61800-5
EAC
RCM
UkrSEPRO
UL File No.: E172143
IEC/EN 61800-2
RoHS, ISO 9001
Catalog Notes
The brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.
Model Code
DA1-32060FB-B20C
Especificações do produto
Product Category
Variable frequency drives
Features
Parameterization: Fieldbus
Parameterization: Keypad
Parameterization: drivesConnect
Parameterization: drivesConnect mobile (App)
Parameterization: Keypad
Parameterization: drivesConnect
Parameterization: drivesConnect mobile (App)
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Control unit
Additional PCB protection
Brake chopper
Internal DC link
Radio interference suppression filter
Breaking resistance
OLED display
PC connection
IGBT inverter
DC link choke
Additional PCB protection
Brake chopper
Internal DC link
Radio interference suppression filter
Breaking resistance
OLED display
PC connection
IGBT inverter
DC link choke
Climatic proofing
< 95 average relative humidity (RH), no condensation, no corrosion
Connection to SmartWire-DT
Yes
In conjunction with DX-NET-SWD1 SmartWire DT module
In conjunction with DX-NET-SWD1 SmartWire DT module
Operating mode
U/f control
Optional: Vector control with feedback (CLV)
Sensorless vector control (SLV)
Speed control with slip compensation
Optional: Vector control with feedback (CLV)
Sensorless vector control (SLV)
Speed control with slip compensation
Frame size
FS5
Altitude
Max. 1000 m
Max. 4000 m
Above 1000 m with 1 % derating per 100 m
Max. 4000 m
Above 1000 m with 1 % derating per 100 m
Environmental class
3C2, 3S2 (Air quality)
Application in domestic and commercial area permitted
Yes
Mains switch-on frequency
Maximum of one time every 30 seconds
Application in industrial area permitted
Yes
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-10 °C
Ambient operating temperature at 150% overload - max
50 °C
Ambient operating temperature at 150% overload - min
-10 °C
Ambient storage temperature - max
60 °C
Ambient storage temperature - min
-40 °C
Apparent power at 230 V
24.3 kVA
Apparent power at 240 V
25.36 kVA
Assigned motor current IM at 220 - 240 V, 60 Hz, 150% overload
54 A
Assigned motor current IM at 230 V, 50 Hz, 150% overload
61 A
Mounting position
Vertical
Relative symmetric net frequency tolerance
10 %
Relative symmetric net voltage tolerance
10 %
Protection
Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)
Resolution
0.1 Hz (Frequency resolution, setpoint value)
Switch-on threshold for the braking transistor
390 VDC
Voltage rating - max
240 VAC
Communication interface
PROFIBUS, optional
SmartWire-DT, optional
CANopen®
Modbus-TCP, optional
PROFINET, optional
EtherCAT, optional
DeviceNet, optional
Ethernet IP, optional
OP-Bus (RS485)
Modbus RTU
SmartWire-DT, optional
CANopen®
Modbus-TCP, optional
PROFINET, optional
EtherCAT, optional
DeviceNet, optional
Ethernet IP, optional
OP-Bus (RS485)
Modbus RTU
Converter type
U converter
Degree of protection
IP20
NEMA Other
NEMA Other
Protocol
Other bus systems
EtherNet/IP
PROFIBUS
MODBUS
PROFINET IO
TCP/IP
DeviceNet
CAN
EtherNet/IP
PROFIBUS
MODBUS
PROFINET IO
TCP/IP
DeviceNet
CAN
Assigned motor power at 230/240 V, 60 Hz, 1-phase
20 HP
System configuration type
AC supply systems with earthed center point
Electromagnetic compatibility
1st and 2nd environments (according to EN 61800-3)
Braking resistance
12 Ω
Input current ILN at 150% overload
70.2 A
Braking torque
Max. 30 % MN, Standard - Main circuit
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
Adjustable to 100 % (DC)
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
Adjustable to 100 % (DC)
Cable length
100 m, screened, maximum permissible cable length
C2 ≤ 5 m, maximum motor cable length
200 m, screened, with motor choke, maximum permissible cable length
150 m, unscreened, maximum permissible cable length
200 m, unscreened, with motor choke, maximum permissible cable length
C3 ≤ 25 m, maximum motor cable length
C2 ≤ 5 m, maximum motor cable length
200 m, screened, with motor choke, maximum permissible cable length
150 m, unscreened, maximum permissible cable length
200 m, unscreened, with motor choke, maximum permissible cable length
C3 ≤ 25 m, maximum motor cable length
Functions
4-quadrant operation possible
Output voltage (U2)
230 V AC, 3-phase
240 V AC, 3-phase
240 V AC, 3-phase
Number of inputs (analog)
2
Number of inputs (digital)
5
Radio interference class
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Number of outputs (digital)
2
Starting current - max
200 %, IH, max. starting current (High Overload), for 4 seconds every 40 seconds, Power section
Number of phases (input)
3
Number of relay outputs
2 (parameterizable, 1 N/O and 1 changeover contact, 6 A (250 V, AC-1) / 5 A (30 V, DC-1))
Number of phases (output)
3
Power consumption
345 W
Rated control supply voltage
10 V DC (Us, max. 10 mA)
Efficiency
96.1 % (η)
Rated control voltage (Uc)
24 V DC (external, max. 100 mA)
Supply frequency
50/60 Hz
Leakage current at ground IPE - max
0.28 mA
Mains voltage - max
240 V
Mains voltage - min
200 V
Nominal output current I2N
60 A
Number of HW-interfaces (industrial ethernet)
0
Number of HW-interfaces (other)
0
Number of HW-interfaces (parallel)
0
Number of HW-interfaces (RS-232)
0
Number of HW-interfaces (RS-422)
0
Number of HW-interfaces (RS-485)
1
Number of HW-interfaces (serial TTY)
0
Number of HW-interfaces (USB)
0
Number of interfaces (PROFINET)
0
Number of outputs (analog)
2
Output at linear load at rated output voltage - max
15 kW
Output at quadratic load at rated output voltage - max
15 kW
Output frequency - max
500 Hz
Output frequency - min
0 Hz
Output voltage - max
250 V
Overload current IL at 150% overload
91.5 A
Suitable for
Branch circuits, (UL/CSA)
Switching frequency
8 kHz, 4 - 24 kHz adjustable (audible), fPWM, Power section, Main circuit
Rated operational voltage
240 V AC, 3-phase
230 V AC, 3-phase
230 V AC, 3-phase
Short-circuit protection rating
90 A, UL (Class CC or J), Safety device (fuse or miniature circuit-breaker), Power Wiring
Rated frequency - max
62 Hz
Rated frequency - min
48 Hz
Rated operational current (Ie) at 150% overload
61 A
Rated operational power at 220/230 V, 50 Hz, 1-phase
15 kW
Safety function/level
STO (Safe Torque Off, SIL2, PLc Cat 2)
Heat dissipation at current/speed
190 W at 25% current and 0% speed
240 W at 25% current and 50% speed
260 W at 50% current and 0% speed
330 W at 50% current and 50% speed
390 W at 50% current and 90% speed
480 W at 100% current and 0% speed
590 W at 100% current and 50% speed
720 W at 100% current and 90% speed
240 W at 25% current and 50% speed
260 W at 50% current and 0% speed
330 W at 50% current and 50% speed
390 W at 50% current and 90% speed
480 W at 100% current and 0% speed
590 W at 100% current and 50% speed
720 W at 100% current and 90% speed
| Característica | Valor |
|---|---|
| Tensão de rede (intervalo) (EF006780) | 200 V |
| Frequência da rede (standard) (EF006783) | 50/60 Hz |
| Número de fases de entrada (EF007117) | 3 |
| Número de fases de lançamento (EF006998) | 3 |
| Frequência de saída max. (EF007350) | 500 Hz |
| Máx. voltagem de saída (EF009560) | 250 V |
| Corrente nominal de saída I2N (EF009561) | 60 A |
| Máx. saída com carga quadrática na tensão de saída nominal (EF007366) | 15 kW |
| Máx. saída com carga linear à tensão de saída nominal (EF007364) | 15 kW |
| Consumo (potência em VA) (EF000346) | 345 W |
| Tolerância de frequência relativa da rede simétrica (EF007454) | 10 % |
| Tolerância de tensão relativa da rede simétrica (EF007453) | 10 % |
| Número de saídas analógicas (EF001995) | 2 |
| Número de entradas analógicas (EF001994) | 2 |
| Número de saídas digitais (EF001993) | 2 |
| Número de entradas digitais (EF001992) | 5 |
| Com unidade de controlo (EF001538) | Sim |
| Aplicação em área industrial permitida (EF007294) | Sim |
| Aplicação na área doméstica e comercial permitida (EF007295) | Sim |
| Suporta o protocolo TCP/IP (EF003050) | Sim |
| Suporta o protocolo PROFIBUS (EF003052) | Sim |
| Suporta o protocolo CAN (EF003053) | Sim |
| Suporta o protocolo INTERBUS (EF003054) | Não |
| Suporta o protocolo ASI (EF003051) | Não |
| Suporta o protocolo KNX (EF003055) | Não |
| Suporta o protocolo MODBUS (EF003057) | Sim |
| Suporta o protocolo Data-Highway (EF003058) | Não |
| Suporta o protocolo DeviceNet (EF003059) | Sim |
| Suporta o protocolo SUCONET (EF003060) | Não |
| Suporta protocolo LON (EF003017) | Não |
| Suporta o protocolo PROFINET IO (EF007525) | Sim |
| Suporta o protocolo PROFINET CBA (EF007524) | Não |
| Suporta o protocolo SERCOS (EF006657) | Não |
| Suporta o protocolo o Foundation Fieldbus (EF007522) | Não |
| Suporta o protocolo Ethernet/IP (EF007521) | Sim |
| Protocolo de suporte à segurança da interface AS no trabalho (EF007519) | Não |
| Suporta o protocolo DeviceNet Safety (EF007520) | Não |
| Suporta o protocolo INTERBUS-Safety (EF006662) | Não |
| Suporta o protocolo PROFIsafe (EF007526) | Não |
| Suporta o protocolo SafetyBUS p (EF007527) | Não |
| Suporta o protocolo BACnet (EF011944) | Não |
| Suporta o protocolo outros sistemas de barramento (EF003062) | Sim |
| Número de interfaces industriais HW Ethernet industrial (EF003020) | 0 |
| Número de interfaces PROFINET (EF006932) | 0 |
| Número de interfaces HW RS-232 (EF003021) | 0 |
| Número de interfaces HW RS-422 (EF003022) | 0 |
| Número de interfaces HW RS-485 (EF003023) | 1 |
| Número de interfaces HW de série TTY (EF003024) | 0 |
| Número de interfaces HW USB (EF003025) | 0 |
| Número de interfaces HW paralelas (EF003026) | 0 |
| Número de interfaces HW outras (EF003027) | 0 |
| Com interface ótica (EF003028) | Não |
| Com conexão ao PC (EF006107) | Sim |
| Resistência à rutura integrada (EF007293) | Sim |
| Possível operação em 4 quadrantes (EF006803) | Sim |
| Tipo de conversor (EF006978) | Conversor U |
| Grau de proteção (IP) (EF005474) | IP20 |
| Grau de proteção (NEMA) (EF011959) | Outro |
| Altura (EF000040) | 485 mm |
| Largura (EF000008) | 234 mm |
| Profundidade (EF000049) | 261 mm |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
Avaliações: (0) ▲
Não há comentários do produto ainda.
Adicionar avaliação
ocultar formulário
| Avaliação: |
|
| Nome: | |
| Email: | |
| Título: | |
| Opinión: | |
| Você recomendaria esse produto para comprar? | |
|
|
|
| Adicionar avaliação | |
Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
