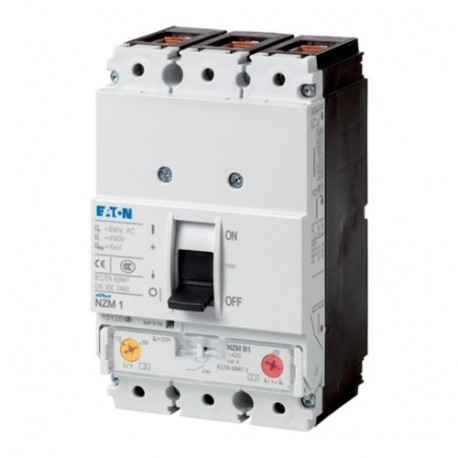

NZMN1-A63-NA 274240 Y7-274240 EATON ELECTRIC interruptor automático, 3P, Iu: 63A Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

NZMN1-A63-NA 274240 Y7-274240 EATON ELECTRIC interruptor automático, 3P, Iu: 63A

NZMN1-A63-NA

274240

Y7-274240

EATON-MOELLER

interruptor automático, 3P, Iu: 63A

Int. automático NZM-NA, 3P, 63A

Eaton Moeller series NZM - Molded Case Circuit Breaker. Circuit-breaker, 3p, 63A, N, frame1, A63-NA
