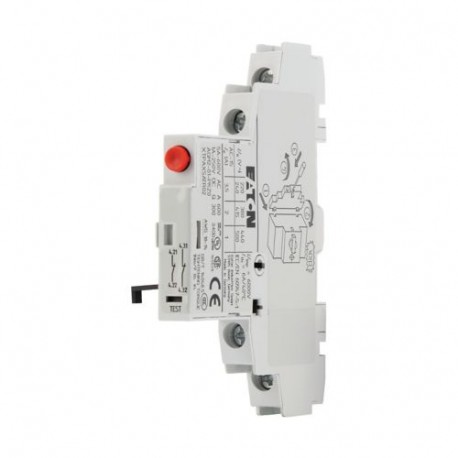

AGM2-01-PKZ0 072899 Y7-72899 EATON ELECTRIC Contactar XTPAXSATR02 signaller laterais auxiliar 2NF tiro
AGM2-01-PKZ0
072899
Y7-72899
EATON-MOELLER
2
Contactar XTPAXSATR02 signaller laterais auxiliar 2NF tiro
Indicador de viagem Contato 1 NC Para PKZ
Eaton Moeller® series PKZ Trip indicator, 2 x 1 NC, Screw terminals
Interruptor indicador de disparo 2 N/C, com terminal de parafuso, para disjuntor de tamanho PKZ(M)0
Aparelhos elétricos de baixa tensão > Bloco de contatos auxiliares
Chaves de proteção do motor
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲geralmente comprados juntos
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton Moeller® series PKZ Trip indicator
Catalog Number
072899
EAN
4015080728993
Product Length/Depth
68 mm
Product Height
90 mm
Product Width
23 mm
Product Weight
0.035 kg
Certifications
CE
IEC/EN 60947-4-1
CSA File No.: 165628
CSA-C22.2 No. 14
UL File No.: E36332
CSA Class No.: 3211-05
UL 508
CSA
UL Category Control No.: NLRV
UL
IEC/EN 60947-4-1
CSA File No.: 165628
CSA-C22.2 No. 14
UL File No.: E36332
CSA Class No.: 3211-05
UL 508
CSA
UL Category Control No.: NLRV
UL
Model Code
AGM2-01-PKZ0
Funcionalidades e Funções
Electric connection type
Screw connection
Indication
General trip indication (overload)
Short-circuits indicated locally by means of a red indicator that can be manually reset
Short-circuits indicated locally by means of a red indicator that can be manually reset
Geral
Lifespan, electrical
50,000 Operations
Lifespan, mechanical
10,000 Operations
Model
Top mounting
Mounting method
Side mounting
Overvoltage category
III
Pollution degree
3
Product category
Accessories
Rated impulse withstand voltage (Uimp)
6000 V AC
Used with
Motor protective circuit-breaker
Condições meteorológicas
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Capacidades dos terminais
Terminal capacity (solid/flexible with ferrule)
0.75 - 2.5 mm²
Terminal capacity (solid/stranded AWG)
18 - 14
Classificação elétrica
Rated operational current (Ie)
1 A at AC-15, 440 V 500 V
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
3.5 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
2 A
Rated operational current (Ie) at DC-13, 110 V
0.5 A
Rated operational current (Ie) at DC-13, 220 V, 230 V
0.25 A
Rated operational current (Ie) at DC-13, 24 V
2 A
Rated operational current (Ie) at DC-13, 60 V
1 A
Rated operational voltage (Ue) at DC - max
250 V
Safe isolation
440 V, Between auxiliary contacts and main contacts, According to EN 61140
Classificação de curto-circuito
Short-circuit protection rating without welding
10 A gG/gL, Fuse, Auxiliary contacts
Capacidade de comutação
Switching capacity (auxiliary contacts, general use)
5 A, 600 V AC, (UL/CSA)
1 A, 250 V DC, (UL/CSA)
1 A, 250 V DC, (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
A600, AC operated (UL/CSA)
Q300, DC operated (UL/CSA)
Q300, DC operated (UL/CSA)
Comunicação
Connection type
Screw connection
Contactos
Control circuit reliability
< 2 λ, < 1 failure at 100,000,000 Operations (at Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
2
Number of contacts (normally open contacts)
0
Verificação do design
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.1 W
Rated operational current for specified heat dissipation (In)
3.5 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Número de contatos como inversores (EF008257) | 0 |
| Número de contatos como contato normalmente aberto (EF008256) | 0 |
| Número de contatos como contato normalmente fechado (EF008255) | 2 |
| Número de comutadores de sinal de erro (EF007613) | 1 |
| Corrente nominal de operação Ie em AC-15, 230 V (EF001385) | 3.5 A |
| Acabamento da conexão elétrica (EF003961) | Ligação com parafuso |
| Modelo (EF000010) | Clip-on |
| Método de montagem (EF000003) | Montagem lateral |
| Suporte da lâmpada (EF000048) | Nenhum |
