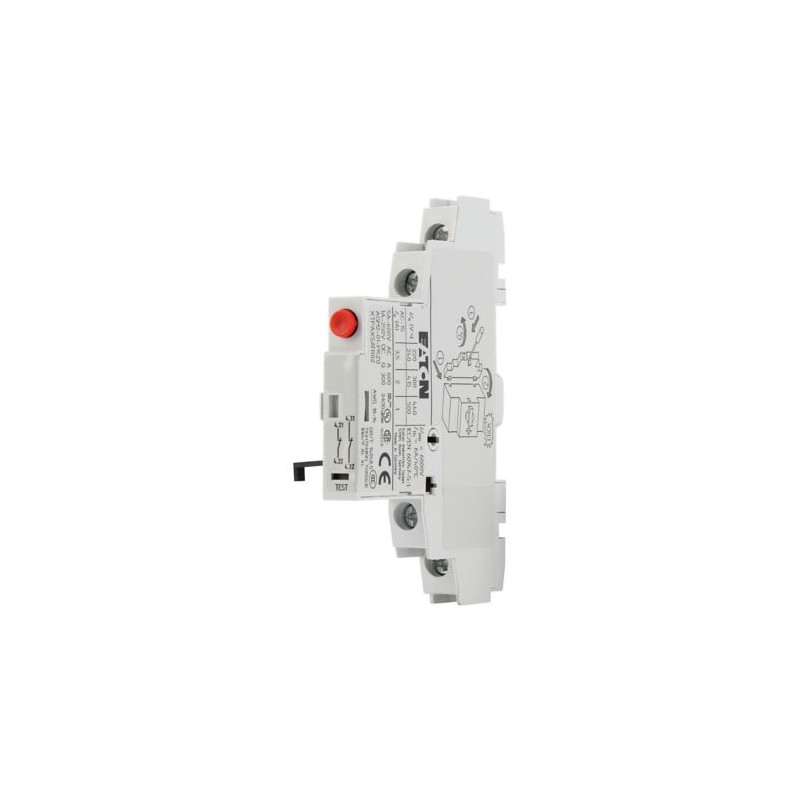

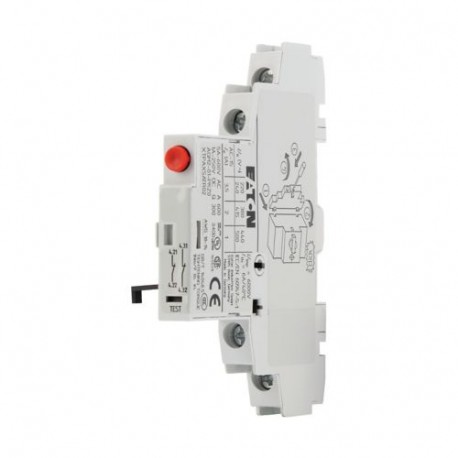

AGM2-01-PKZ0 072899 Y7-72899 EATON ELECTRIC Segnalatore di sgancio, 2 NC, collegamento a vite
AGM2-01-PKZ0
072899
Y7-72899
EATON-MOELLER
2
Segnalatore di sgancio, 2 NC, collegamento a vite
Contatto indicatore di sgancio 1 NC per PKZ
Eaton Moeller® series PKZ Trip indicator, 2 x 1 NC, Screw terminals
2 Interruttore di sgancio N/C, con morsetto a vite, per interruttore PKZ(M)0
Apparecchi elettrici a bassa tensione > Modulo contatti ausiliario
Motor Protective Switches
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Comprati di solito insieme
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series PKZ Trip indicator
Catalog Number
072899
EAN
4015080728993
Product Length/Depth
68 mm
Product Height
90 mm
Product Width
23 mm
Product Weight
0.035 kg
Certifications
CE
IEC/EN 60947-4-1
CSA File No.: 165628
CSA-C22.2 No. 14
UL File No.: E36332
CSA Class No.: 3211-05
UL 508
CSA
UL Category Control No.: NLRV
UL
IEC/EN 60947-4-1
CSA File No.: 165628
CSA-C22.2 No. 14
UL File No.: E36332
CSA Class No.: 3211-05
UL 508
CSA
UL Category Control No.: NLRV
UL
Model Code
AGM2-01-PKZ0
Features & Functions
Electric connection type
Screw connection
Indication
General trip indication (overload)
Short-circuits indicated locally by means of a red indicator that can be manually reset
Short-circuits indicated locally by means of a red indicator that can be manually reset
General
Lifespan, electrical
50,000 Operations
Lifespan, mechanical
10,000 Operations
Model
Top mounting
Mounting method
Side mounting
Overvoltage category
III
Pollution degree
3
Product category
Accessories
Rated impulse withstand voltage (Uimp)
6000 V AC
Used with
Motor protective circuit-breaker
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Terminal capacities
Terminal capacity (solid/flexible with ferrule)
0.75 - 2.5 mm²
Terminal capacity (solid/stranded AWG)
18 - 14
Electrical rating
Rated operational current (Ie)
1 A at AC-15, 440 V 500 V
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
3.5 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
2 A
Rated operational current (Ie) at DC-13, 110 V
0.5 A
Rated operational current (Ie) at DC-13, 220 V, 230 V
0.25 A
Rated operational current (Ie) at DC-13, 24 V
2 A
Rated operational current (Ie) at DC-13, 60 V
1 A
Rated operational voltage (Ue) at DC - max
250 V
Safe isolation
440 V, Between auxiliary contacts and main contacts, According to EN 61140
Short-circuit rating
Short-circuit protection rating without welding
10 A gG/gL, Fuse, Auxiliary contacts
Switching capacity
Switching capacity (auxiliary contacts, general use)
5 A, 600 V AC, (UL/CSA)
1 A, 250 V DC, (UL/CSA)
1 A, 250 V DC, (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
A600, AC operated (UL/CSA)
Q300, DC operated (UL/CSA)
Q300, DC operated (UL/CSA)
Communication
Connection type
Screw connection
Contacts
Control circuit reliability
< 2 λ, < 1 failure at 100,000,000 Operations (at Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
2
Number of contacts (normally open contacts)
0
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.1 W
Rated operational current for specified heat dissipation (In)
3.5 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| numero di contatti invertitori (EF008257) | 0 |
| numero di contatti di chiusura (EF008256) | 0 |
| numero di contatti di riposo (EF008255) | 2 |
| numero di commutatori di segnale (EF007613) | 1 |
| corrente d'esercizio nominale Ie per AC-15, 230 V (EF001385) | 3.5 A |
| tipo di collegamento elettrico (EF003961) | raccordo a vite |
| versione (EF000010) | attaccabile |
| modo di montaggio (EF000003) | applicazione laterale |
| portalampada (EF000048) | senza |
