F3SG-4RA0430-30
F3SG6054M
F3SG4RA043030.1
OMRON
1
Disponibile Invio oggi

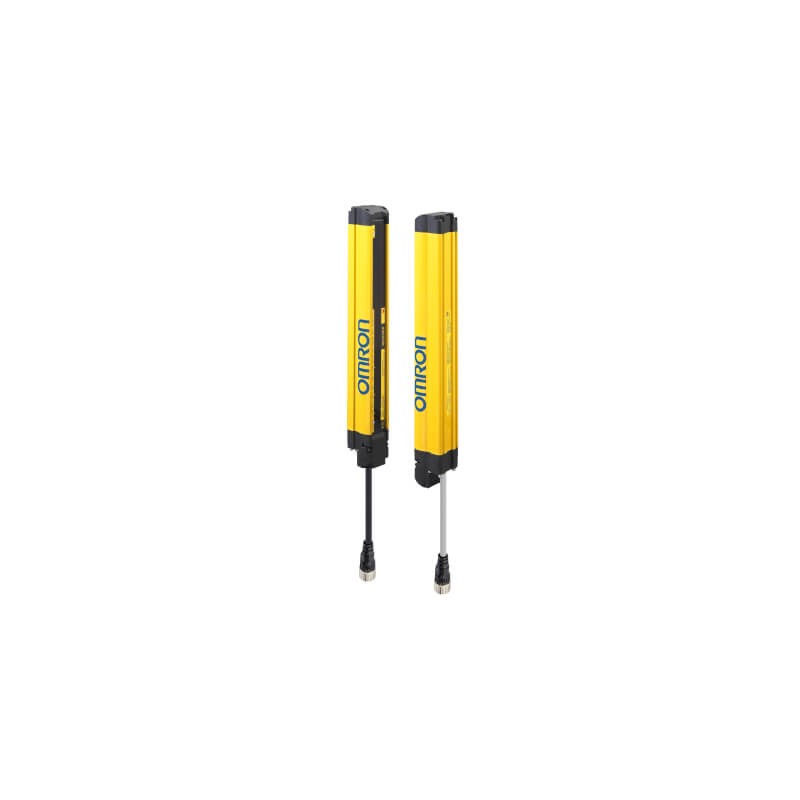

Una barriera di sicurezza avanzate, IP67, Tipo 4, a Mano 430mm
Barriera di sicurezza, F3SG-R Advanced, tipo 4, risoluzione 30 mm, portata max 20 m, altezza 430 mm
Sensori di sicurezza > Barriere sicurezza F3SG-R
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de OMRON
Grazie per il suo interesse nei nostri prodotti, speriamo che il tempo di consegna indicato sia conveniente per lei.
Durante l’elaborazione dell’ordine potrà selezionare il tipo di invio che meglio si adatti alle sue necessità: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Type of safety according to IEC 61496-1 | 4 |
Type of protection | Hand protection |
Detection capability | 30 mm |
Safety field height | 430 mm |
Beam gap | 20 mm |
Number of beams | 20 |
Number of protected semiconductor outputs | 2 |
Number of semiconductor outputs with signalling function | 1 |
Maximum safety range | 20 m |
Minimum operating distance | 0.3 m |
Response time | 8 ms |
Cascadable | |
With muting function | |
With beam coding | |
Type of switching output of the OSSD | PNP/NPN |
Communication port(s) | USB |
Suitable for safety functions | |
Scope of delivery | Transmitter and receiver |
Wavelength of the sensor | 870 nm |
Type of electric connection | Connector M12 |
Supply voltage DC | 19.2-28.8 V |
Voltage type | DC |
Max. output current at protected output | 300 mA |
Degree of protection (IP) | IP67 |
Ambient temperature | -10-55 °C |
Overall length | 448 mm |
Height of sensor | 35 mm |
Width sensor | 35 mm |
