F3SG-2RE0190P30
F3SG6191M
F3SG2RE0190P30.1
OMRON
1
Disponibile Invio oggi

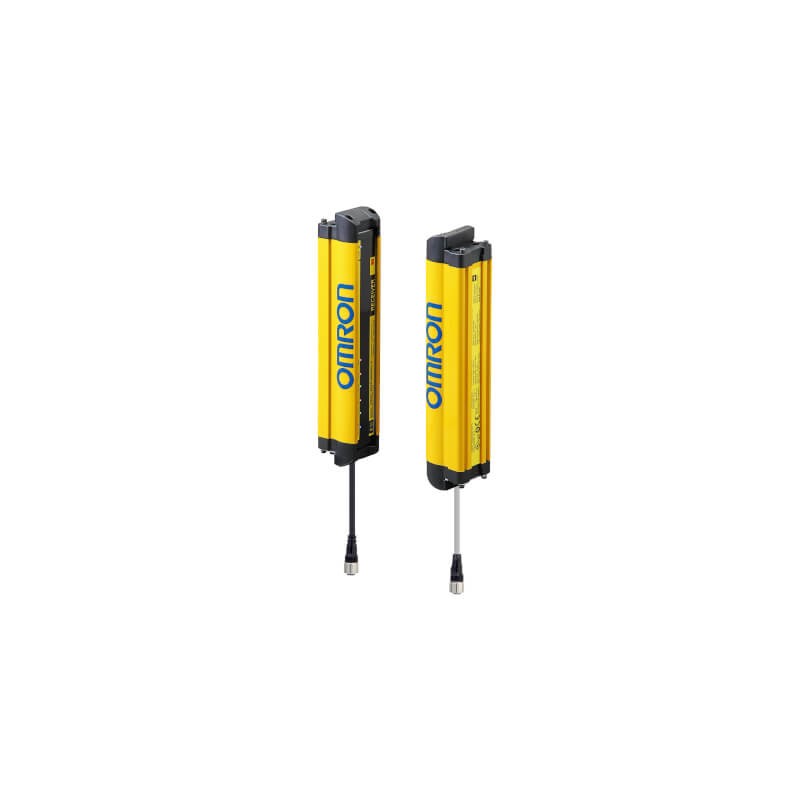

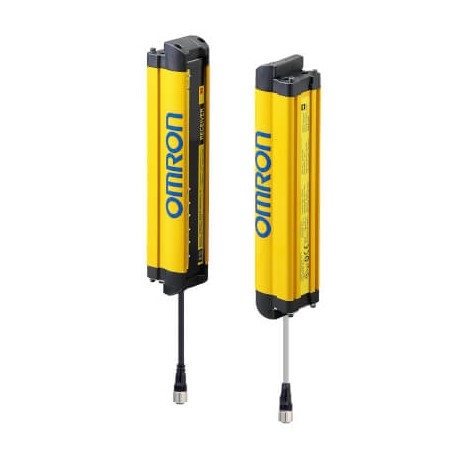

Barriera di sicurezza di base, IP67 Tipo 2 Mano 190mm
Barriera di sicurezza, F3SG-R Easy, tipo 2, risoluzione 30 mm, portata max 20 m, altezza 190 mm
Sensori di sicurezza > Barriere sicurezza F3SG-R
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de OMRON
Grazie per il suo interesse nei nostri prodotti, speriamo che il tempo di consegna indicato sia conveniente per lei.
Durante l’elaborazione dell’ordine potrà selezionare il tipo di invio che meglio si adatti alle sue necessità: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Type of safety according to IEC 61496-1 | 2 |
Type of protection | Hand protection |
Detection capability | 30 mm |
Safety field height | 190 mm |
Beam gap | 20 mm |
Number of beams | 8 |
Number of protected semiconductor outputs | 2 |
Number of semiconductor outputs with signalling function | 0 |
Maximum safety range | 20 m |
Minimum operating distance | 0.3 m |
Response time | 5 ms |
Cascadable | |
With muting function | |
With beam coding | |
Type of switching output of the OSSD | PNP |
Key features | Fast response (ON/OFF applications), Simple wiring |
Suitable for safety functions | |
Scope of delivery | Transmitter and receiver |
Wavelength of the sensor | 870 nm |
Type of electric connection | Connector M12 |
Supply voltage DC | 19.2-28.8 V |
Voltage type | DC |
Max. output current at protected output | 300 mA |
Degree of protection (IP) | IP67 |
Ambient temperature | -10-55 °C |
Overall length | 208 mm |
Height of sensor | 35 mm |
Width sensor | 35 mm |
Titolo: | Dimensione: | Tipo: |
---|---|---|
PDF CATALOGO OMRON AUTOMAZIONE IT.pdf | 30 Mbytes | |
PDF CATALOGO OMRON IT.pdf | 90 Mbytes |
