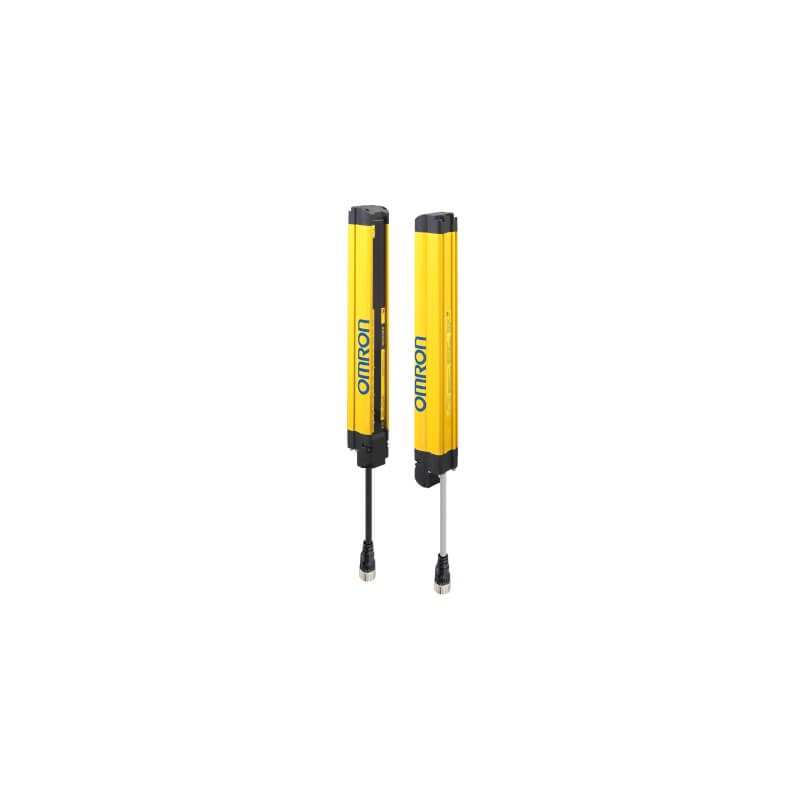

OMRON F3SG-4RA0430-30 F3SG6054M F3SG4RA043030.1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

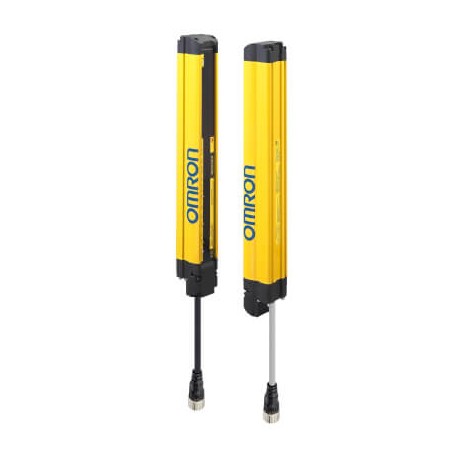

F3SG-4RA0430-30 F3SG6054M F3SG4RA043030,1 OMRON Barrier security advanced, IP67, Type 4, Hand-430mm

Reference: F3SG-4RA0430-30

Code: F3SG6054M

Catalog Number: F3SG4RA043030.1

Manufacturer: OMRON

Description:

Barrier security advanced, IP67, Type 4, Hand-430mm
Safety Sensor, F3SG-R Advanced, Type 4, 30 mm resolution, range 0.3 to 20.0 m, height 430 mm, PNP/NPN

Categories:

  • Sensors > Light curtain
  • OMRON > Security Sensors > Security Barriers F3SG-R

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 896,75 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Type of safety according to IEC 61496-14Type of protectionHand protectionDetection capability30 mmSafety field height430 mmBeam gap20 mmNumber of beams20Number of protected semiconductor outputs2Number of semiconductor outputs with signalling function1Maximum safety range20 mMinimum operating distance0.3 mResponse time8 msCascadableWith muting functionWith beam codingType of switching output of the OSSDPNP/NPNCommunication port(s)USBSuitable for safety functionsScope of deliveryTransmitter and receiverWavelength of the sensor870 nmConnection methodM12 pigtail Smartclick connectorSupply voltage DC19.2-28.8 VVoltage typeDCMax. output current at protected output300 mADegree of protection (IP)IP67Ambient temperature-10-55 °COverall length of sensor448 mmHeight of sensor35 mmWidth of sensor35 mm

ETIM for 673560 Sensors (EC002549)

Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameVoltage type (EF000187)
Feature valueDC
Feature nameType of switching output of the OSSD (EF003959)
Feature valuePNP/NPN
Feature nameScope of delivery of the one-way system (EF004032)
Feature valueTransmitter and receiver
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67
Feature nameType of safety according to IEC 61496-1 (EF004105)
Feature value4
Feature nameType of interface for safety communication (EF003956)
Feature valueOther
Feature nameType of electric connection (EF003961)
Feature valueConnector M12
Feature nameOperation agent-safety class (EF003982)
Feature valueSafety class 3
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameCascadable (EF000507)
Feature valueYes
Feature nameOverride possible (EF004061)
Feature valueYes
Feature nameWith muting function (EF004057)
Feature valueYes
Feature nameWith monitoring function downstream switching devices (EF004052)
Feature valueYes
Feature nameSuitable for safety functions (EF001597)
Feature valueYes
Feature nameReduced resolution (EF004095)
Feature valueYes
Feature nameWith beam coding (EF004114)
Feature valueYes
Feature nameFade-out possible (EF003955)
Feature valueYes
Feature nameWith restart blockage (EF004054)
Feature valueYes
Feature nameMax. output current at protected output (EF004035)
Feature value300 mA
Feature nameNumber of protected contact energized outputs (EF003952)
Feature value0
Feature nameNumber of semiconductor outputs with signalling function (EF003945)
Feature value1
Feature nameSafety field height (EF004103)
Feature value430 mm
Feature nameWavelength of the sensor (EF004132)
Feature value870 nm
Feature nameDetection capability for test bodies (EF003991)
Feature value30 mm
Feature nameResolution of the light curtain (EF006784)
Feature value20 mm
Feature nameResponse time (EF004094)
Feature value8 ms
Feature nameNumber of protected semiconductor outputs (EF003951)
Feature value2
Feature nameTransmission range of the safety field (EF004098)
Feature value20 m
Feature nameSwitching voltage of OSSD at state "high" (EF004102)
Feature value24 V
Feature nameWidth sensor (EF007094)
Feature value35 mm
Feature nameHeight of sensor (EF007283)
Feature value35 mm
Feature nameLength of sensor (EF007334)
Feature value448 mm
Feature nameNumber of contact energized outputs with signalling function (EF003946)
Feature value0
Feature nameRated control supply voltage DC (EF003980)
Feature value19.2 V
Feature nameAmbient temperature (EF002386)
Feature value-10 °C
