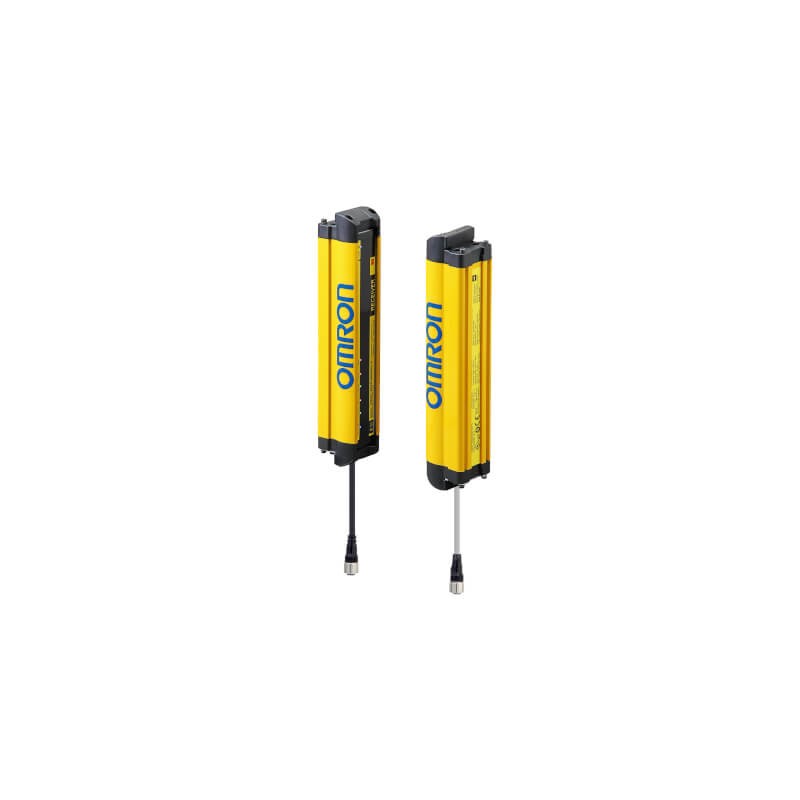

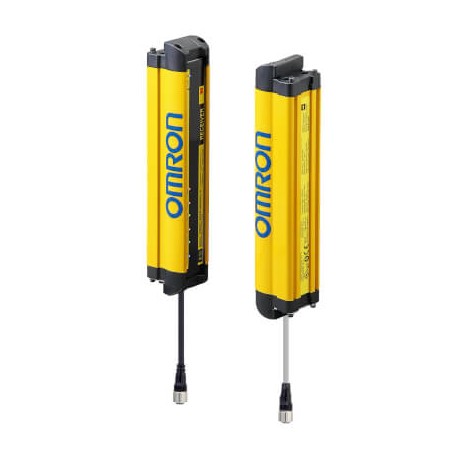

F3SG-2RE0190P30 F3SG6191M 673584 OMRON Basic Safety Barrier IP67 Type 2 Hand 190mm
F3SG-2RE0190P30
F3SG6191M
F3SG2RE0190P30.1
OMRON
Barrier basic safety, IP67 Type 2 Hand 190mm
Safety Sensor, F3SG-R Easy, Type 2, 30 mm resolution, range 0.3 to 20.0 m, height 190 mm, PNP
Security Sensors > Security Barriers F3SG-R
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
More info
▲Specifications
| Type of safety according to IEC 61496-1 | 2 |
| Type of protection | Hand protection |
| Detection capability | 30 mm |
| Safety field height | 190 mm |
| Beam gap | 20 mm |
| Number of beams | 8 |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 0 |
| Maximum safety range | 20 m |
| Minimum operating distance | 0.3 m |
| Response time | 5 ms |
| Cascadable | |
| With muting function | |
| With beam coding | |
| Type of switching output of the OSSD | PNP |
| Key features | Fast response (ON/OFF applications), Simple wiring |
| Suitable for safety functions | |
| Scope of delivery | Transmitter and receiver |
| Wavelength of the sensor | 870 nm |
| Type of electric connection | Connector M12 |
| Supply voltage DC | 19.2-28.8 V |
| Voltage type | DC |
| Max. output current at protected output | 300 mA |
| Degree of protection (IP) | IP67 |
| Ambient temperature | -10-55 °C |
| Overall length | 208 mm |
| Height of sensor | 35 mm |
| Width sensor | 35 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG OMRON EN.pdf | 24 Mbytes |
|
