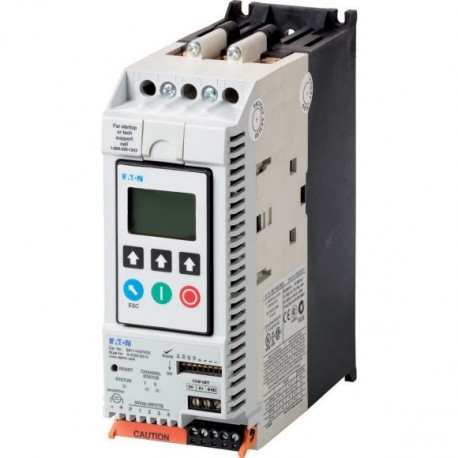

S811+N37P3S 168977 Y7-168977 EATON ELECTRIC Softstarter, a 3 fasi, 37A, Ue 200 600 VAC
S811+N37P3S
168977
Y7-168977
EATON-MOELLER
Softstarter, a 3 fasi, 37A, Ue= 200 - 600 VAC
S811+ Avviatore progressivo ad alte prestazioni a 3 poli 37 A 200-600 V AC
Eaton S811 Soft starter, 37 A, 200 - 600 V AC, Us= 24 V DC, with control unit and pump algorithm, Frame size N
Soft starter, Descrizione: Con contatti di bypass interni, Funzione: Soft starter per carichi trifase, con centralina e algoritmo della pompa, Tensione di alimentazione (50/60 Hz): ULN= 200 - 600 V AC, Tensione di alimentazione: Us= 24 V DC, Tensione di controllo: UC= 24 V DC, Potenza nominale del motore assegnata (standard, collegamento in linea) a 400 V, 50 Hz: P= 18,5 kW, a 460 V, 60 Hz: P= 25 HP, Corrente nominale di funzionamento AC-53: Ie= 37 A, Corrente nominale di funzionamento AC-53, In-Delta: Ie= 65 A, Classe di avviamento: CLASS 10 (sostituzione stella-triangolo), CLASS 20 (servizio di avviamento pesante 3 x Ie per 45 s), CLASS 30 (6 x Ie per 30 s), Tensione nominale di esercizio: Ue= 200 V, 230 V, 400 V, 480 V, 600 V, Collegamento a SmartWire-DT: no, Dimensione del telaio: N, Norme: IEC/EN 60947-4-2, UL 508, CSA22.2-14-1995, GB14048
Apparecchi elettrici a bassa tensione > starter progressivo
Softstarter ad alte prestazioni
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton S811 Soft starter
Catalog Number
168977
EAN
4015081654734
Product Length/Depth
163.9 mm
Product Height
174.5 mm
Product Width
67.5 mm
Product Weight
2.6 kg
Certifications
C-Tick
IEC/EN 60947-4-2
CSA-C22.2 No. 14
CE
UL
CCC
CSA File No.: LR 353
GB14048
CSA22.2-14-1995
CSA
UL 508
UL Category Control No.: NMFT
CSA Class No.: 3211-06, 2411-01
UL File No.: E202571
IEC/EN 60947-4-2
CSA-C22.2 No. 14
CE
UL
CCC
CSA File No.: LR 353
GB14048
CSA22.2-14-1995
CSA
UL 508
UL Category Control No.: NMFT
CSA Class No.: 3211-06, 2411-01
UL File No.: E202571
Model Code
S811+N37P3S
Modelli & Funzioni
Fault memory
10 Faults
Fitted with:
Internal bypass
Internal bypass contacts
Display
Motor overload protection
Internal bypass contacts
Display
Motor overload protection
Functions
Current limitation
Soft start function
Suppression of DC components for motors
Underload monitoring
Potential isolation between power and control sections
Suppression of closing transients
Overload monitoring
Single direction
Min. ramp time 1 s - fast switching (semiconductor contactor)
Soft start function
Suppression of DC components for motors
Underload monitoring
Potential isolation between power and control sections
Suppression of closing transients
Overload monitoring
Single direction
Min. ramp time 1 s - fast switching (semiconductor contactor)
Interfaces
Modbus RTU (built-in)
Informazioni generali
Class
Adjustable
Connection to SmartWire-DT
No
Degree of protection
IP00
NEMA Other
NEMA Other
Frame size
N
Mains voltage - min
200 V
Mains voltage - max
600 V
Mounting position
As required
Overvoltage category
II
Pollution degree
3
Radio interference class
Class A (EN 55011)
Rated impulse withstand voltage (Uimp)
4000 V
Rated insulation voltage (Ui)
660 V
Shock resistance
15 g, Mechanical
Startup class
CLASS 20 (heavy starting duty 3 x Iₑ for 45 s)
CLASS 10 (star-delta replacement)
CLASS 30 (6 x Iₑ for 30 s)
CLASS 10 (star-delta replacement)
CLASS 30 (6 x Iₑ for 30 s)
Suitable for
Branch circuits, not as BCPD, (UL/CSA)
Type
Soft starter for three-phase loads, with control unit and pump algorithm
Voltage type
DC
Condizioni ambientali e climatiche
Altitude
Above 2000 m with 0.5 % derating per 100 m
Max. 2000 m
Max. 2000 m
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-30 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-50 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Parti conduttive principali
Overload cycle
AC-53a: 4.0 - 32: 99 - 3
Rated operational current (Ie) at AC-53
37 A
Rated operational current (Ie) at AC-53, in-delta
65 A
Rated operational voltage (Ue) - min
200 V
Rated operational voltage (Ue) - max
600 V
Short-circuit protection rating
NZMN1-S40, Type “1” coordination, Main conducting paths
Supply frequency
50/60 Hz, fLN, Main circuit
Voltage rating - max
600 V
Potenza nominale d'impiego (Motore)
Assigned motor power at 200/208 V, 60 Hz, 3-phase
10 HP
Assigned motor power at 220/230 V, 60 Hz, 3-phase
10 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
25 HP
Assigned motor power at 600 V, 60 Hz, 3-phase
30 HP
Assigned motor power in-delta at 220/230 V, 60 Hz
20 HP
Assigned motor power in-delta at 460/480 V, 60 Hz
50 HP
Assigned motor power in-delta at 575/600 V, 60 Hz
60 HP
Rated operational power at 220/230 V, 50 Hz
7.5 kW
Rated operational power at 400 V, 50 Hz
18.5 kW
Rated operational power at 500 V, 50 Hz
22 kW
Rated operational power in-delta at 220/230 V, 50 Hz
18.5 kW
Rated operational power in-delta at 400 V, 50 Hz
30 kW
Rated operational power in-delta at 500 V, 50 Hz
45 kW
Sezioni di collegamento
Terminal capacity (flexible with ferrule)
2 x (1 - 2.5) mm², Control circuit cables
1 x (2.5 - 35) mm², Main cables
1 x (2.5 - 4) mm², Control circuit cables
1 x (2.5 - 35) mm², Main cables
1 x (2.5 - 4) mm², Control circuit cables
Terminal capacity (solid)
2 x (1 - 2.5) mm², Control circuit cables
1 x (2.5 - 35) mm², Main cables
1 x (2.5 - 4) mm², Control circuit cables
1 x (2.5 - 35) mm², Main cables
1 x (2.5 - 4) mm², Control circuit cables
Terminal capacity (solid/stranded AWG)
2 x (14 - 12), Control circuit cables
1 x (14 - 2), Main cables
1 x (14 - 2), Main cables
Terminal capacity (stranded)
2 x (1 - 2.5) mm², Control circuit cables
1 x (2.5 - 35) mm², Main cables
1 x (2.5 - 4) mm², Control circuit cables
1 x (2.5 - 35) mm², Main cables
1 x (2.5 - 4) mm², Control circuit cables
Screwdriver size
1.5 x 6 mm, Terminal screw, Main cables
0.6 x 3.5 mm, Terminal screws, Control circuit cables
0.6 x 3.5 mm, Terminal screws, Control circuit cables
Tightening torque
5 Nm (≤ 25 mm²)
4 Nm (≤ 6 mm²)
0.4 Nm, Screw terminals, Control circuit cables
4.5 Nm (≤ 10 mm²)
5.6 Nm (> 25 mm²)
4 Nm (≤ 6 mm²)
0.4 Nm, Screw terminals, Control circuit cables
4.5 Nm (≤ 10 mm²)
5.6 Nm (> 25 mm²)
Circuito di comando
Current consumption
1000 mA, Control circuit, Regulator supply
100 mA, Control circuit, Digital inputs, External 24 V (no-load)
10 A/150 ms, Control circuit, Regulator supply at peak performance (close bypass) at 24 V DC
150 mA, Control circuit, Digital inputs, External 24 V
100 mA, Control circuit, Digital inputs, External 24 V (no-load)
10 A/150 ms, Control circuit, Regulator supply at peak performance (close bypass) at 24 V DC
150 mA, Control circuit, Digital inputs, External 24 V
Drop-out time
100 ms, DC operated
Drop-out voltage
0 - 3 V, DC operated
Pick-up time
100 ms at DC
Pick-up voltage
21.6 - 26.4 V DC
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
24 V
Rated control supply voltage (Us) at DC - max
24 V
Ingresso / uscita
Input current
4 - 20 mA (Analog inputs)
Number of inputs
1 (current input)
Number of outputs
2 Relay Outputs (programmable)
Output voltage
120 V AC/DC (relay outputs)
Protection
Finger and back-of-hand proof, Protection against direct contact
Rated control voltage (Uc)
24 V DC
24 V DC (-10 %/+10 %)
24 V DC (-10 %/+10 %)
Rated operational current (Ie) at AC-11
3 A
Funzione soft start
Application
Delay time
0 - 120 s, Soft start function, Ramp times
Kickstart
100% (Kickstart voltage)
Max. 2000 ms (Kickstart Duration)
Max. 2000 ms (Kickstart Duration)
Ramp/run-up time
360 s
Start voltage
Max. 85 %, Soft start function, Start voltage = turn-off voltage
Verifica di progetto
Equipment heat dissipation, current-dependent Pvid
25 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
37 A
Static heat dissipation, non-current-dependent Pvs
25 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| corrente d'esercizio nominale Ie a 40°C Tu (EF007039) | 37 A |
| tensione d'esercizio nominale Ue (EF002418) | 200 V |
| potenza nominale motore trifase, circuito standard, a 230 V (EF007053) | 7.5 kW |
| potenza nominale motore trifase, circuito standard, a 400 V (EF007054) | 18.5 kW |
| potenza nominale motore trifase, circuito a radice di 3, a 230 V (EF007055) | 18.5 kW |
| potenza nominale motore trifase, circuito a radice di 3, a 400 V (EF007056) | 30 kW |
| funzione (EF000030) | senso di rotazione unico |
| cavallottamento interno (EF009214) | Sì |
| con display (EF000458) | Sì |
| controllo della coppia (EF009215) | No |
| temperatura ambiente nominale senza derating (EF007074) | 50 °C |
| tensione di alimentazione pilota nominale AC 50 Hz (EF003978) | 0 V |
| tensione di alimentazione pilota nominale AC 60 Hz (EF003979) | 0 V |
| tensione di alimentazione pilota nominale DC (EF003980) | 24 V |
| tipo di tensione per l'azionamento (EF008242) | DC |
| protezione integrata contro il sovraccarico del motore (EF007297) | Sì |
| classe di intervento (EF006668) | regolabile |
| grado di protezione (IP) (EF005474) | IP00 |
| indice di protezione (NEMA) (EF011959) | altro |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| S811+N37P3S Y7-168977 168977 ES_168977.pdf | 749 Kbytes |
|
Recensioni: (0) ▲
Nessun commento per il momento.
Inserisci recensione
nascondi form
| Valutazione: |
|
| Nome: | |
| Email: | |
| Titolo: | |
| Testo: | |
| Mi consiglia questo prodotto da acquistare? | |
|
|
|
| Inserisci recensione | |
Tutti i feedback che riceviamo dagli elementi che offriamo sono reali e verificati. Un piccolo gesto, ma di grande valore. Quindi grazie per quel minuto si spende in noi lasciare il vostro parere e punteggio sui prodotti, perché ci aiuta a continuare a migliorare e di offrire ancora maggiore qualità del servizio.
